Rigging work
11.9 Rigging/unrigging the counterweight
11 - 86 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Extending/
retracting the
lifting cylinders
This section describes how to operate the lifting cylinders manually,
– for correcting the displayed rigging mode and
– for pre-charging the counterweight afterwards.
H
Always lift and lower the counterweight in automatic mode, otherwise
slewing with extended lifting cylinders will be blocked;
à Automatic mode
rigging
, p. 11 - 87, à Automatic mode unrigging, p. 11 - 89.
Correct the rigging mode
• You can use the automatic mode only if the
current rigging mode is displayed.
If necessary, correct the displayed rigging
mode as follows:
• Slew the superstructure out of the rigging
range so that the lifting cylinders can be
freely extended.

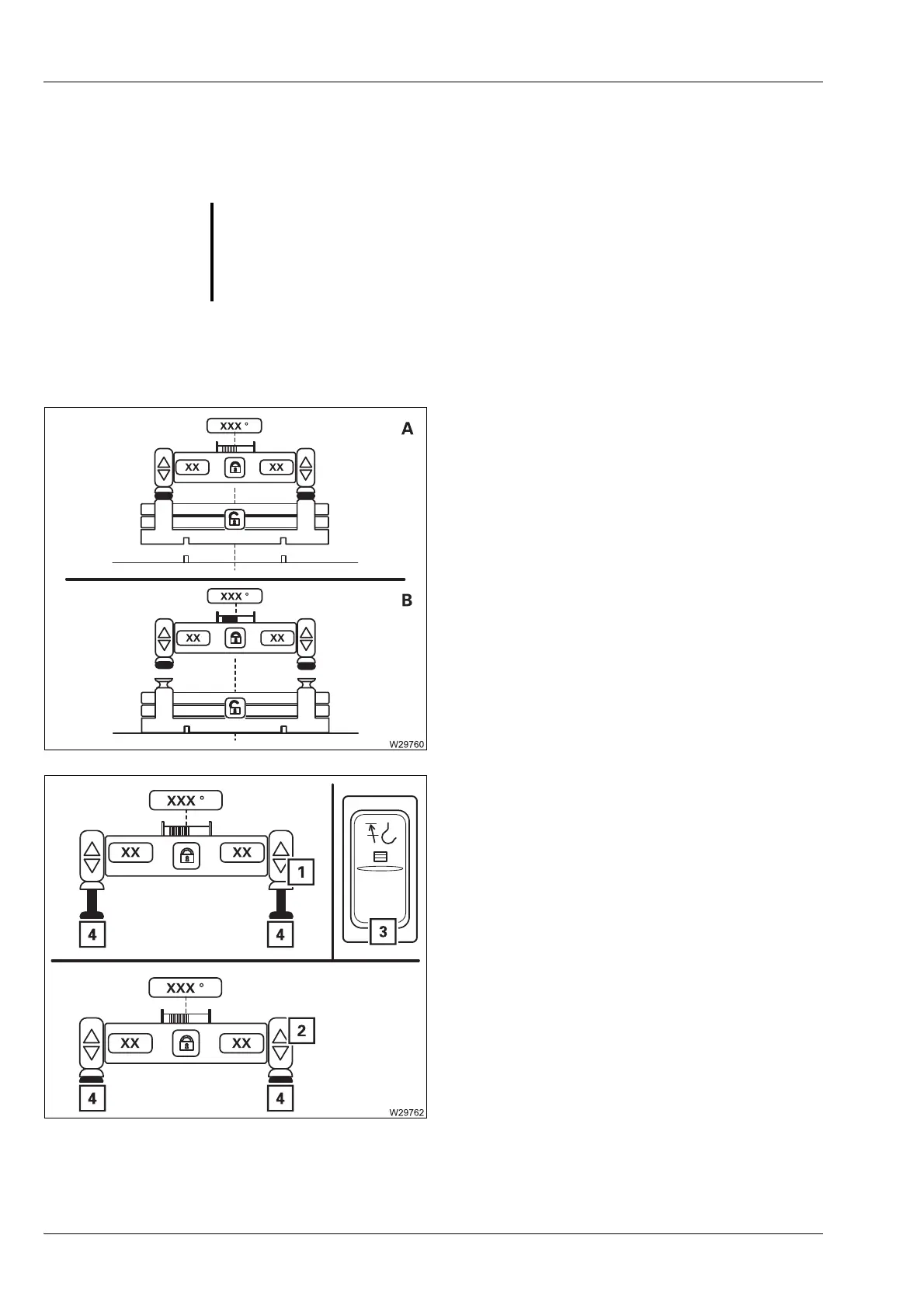

Assuming the symbol (4) is yellow with the
counterweight unrigged.
• Press in the override button (3).
• (A) Fully extend the lifting cylinders –
symbol (1).
• Release the override button (3).
• (B) – Fully retract the lifting cylinders –
symbol (2).
The symbols (4) become green.
You can now use the automatic mode.
S
Risk of damage to the counterweight!
With the override switch actuated, the functions are always enabled.
Slew the superstructure only when the lifting cylinders are fully retracted.
A Counterweight rigged
B Counterweight unrigged
