Rigging work
11.10 Rigging work on the main boom
11 - 110 3 302 633 en Operating Instructions GMK5250L
27.09.2017

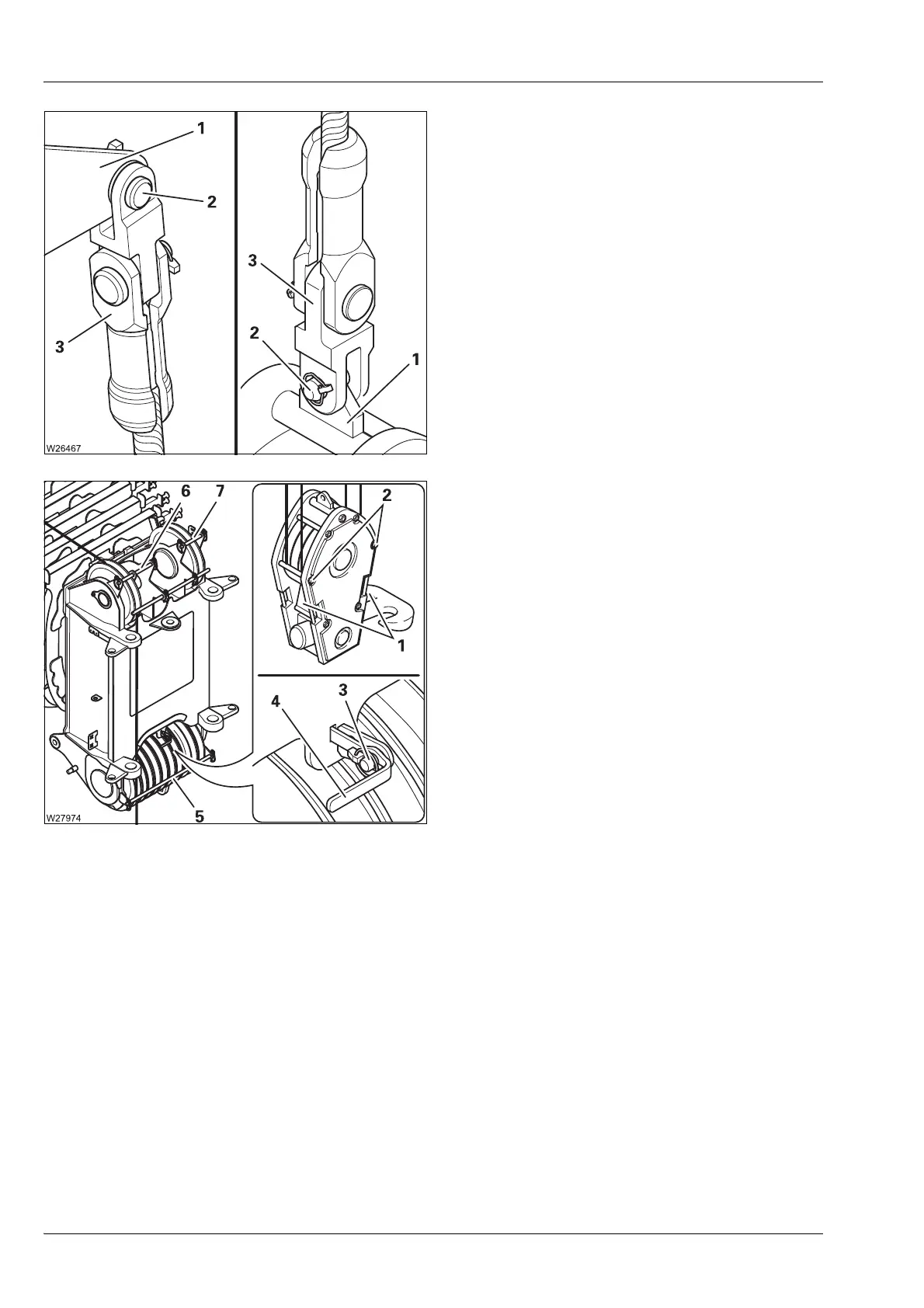

Rope end fitting
• Insert the rope end fitting (3) at the fixed
point (1) and secure the pin (2).
Securing the hoist rope
• Pull the rod (3) and fold the bracket (4)
forwards.
• Insert the rods (3), (5) and (6), (7).
• Secure all rods using the retaining pins.
Closing the hook block
• Fold up the plates (1) on both sides.
• Insert the rods (2) and secure them with the
linchpins.
