Rigging work
11.11 Other rigging work
Operating Instructions GMK5250L 3 302 633 en 11 - 139
27.09.2017
Camera on
the hoists
This section describes the CCS display as the monitor. Depending on the
version, a separate monitor may also be present.

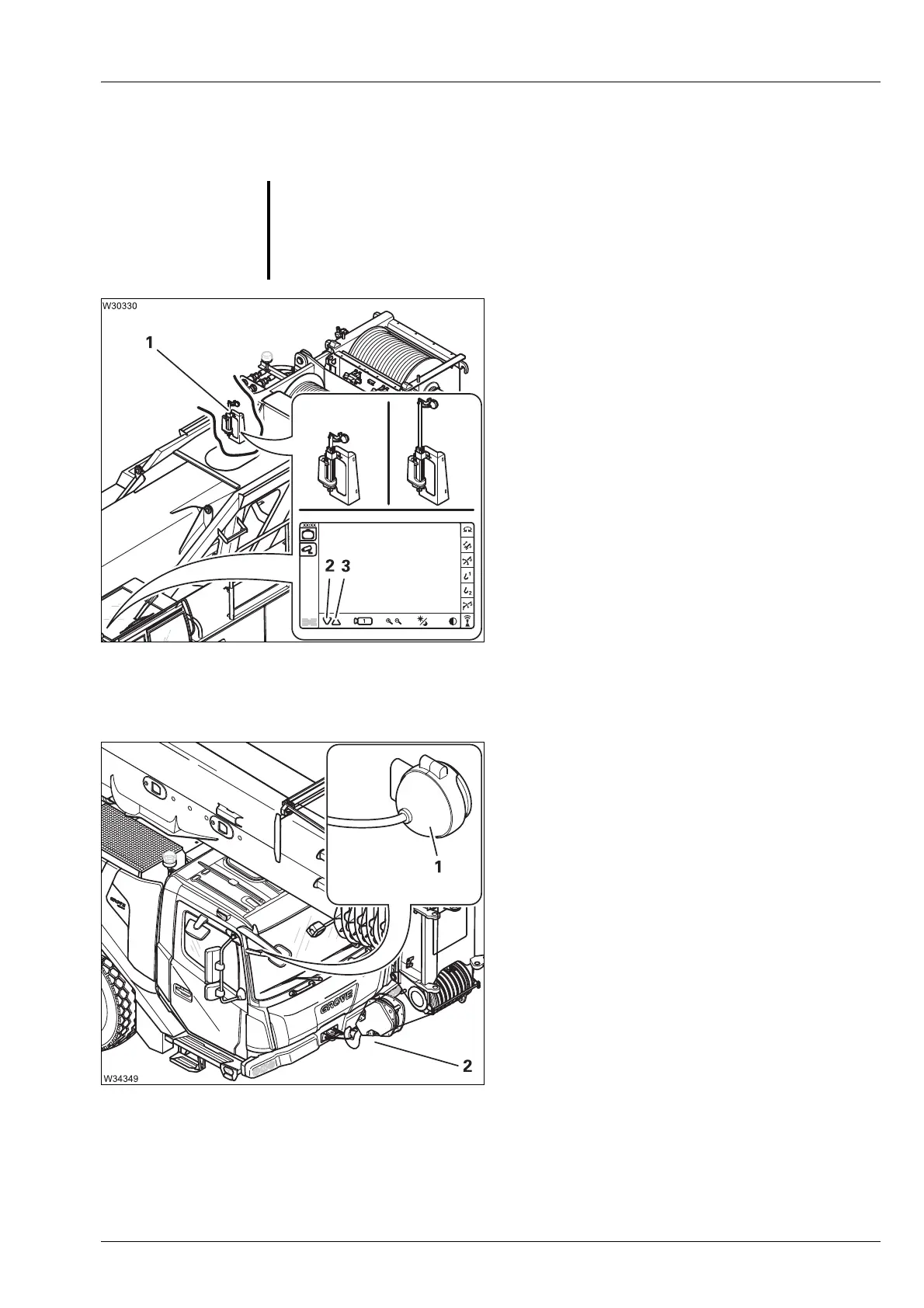

A camera (1) transmits an image of the main
and auxiliary hoists to the display in the
crane cab.
• You must
– extend for crane operation – symbol (3),
– retract the camera for driving – symbol (2).
Camera on the
driver's cab
A camera (1) allows viewing of the non-visible
area in front of the driver's cab.
Depending on the version, the camera image
is shown on the CCS display or a separate
monitor.
• Adjust the camera (1) to show the area (2)
in front of the bumper on the display or
monitor.
s
G
Risk of accidents due to exceeding the permissible dimensions!
Always retract the camera before driving. When the camera is extended,
the overall height specified for on-road driving is exceeded.
