B-22
FX Series PLC User's Manual - Data Communication Edition
N:N Network
5 Communication Setting (Initialization) in FX Programmable Controller
5.2 Communication Setting Using Parameter Method (GX Developer)
5.2 Communication Setting Using Parameter Method (GX Developer)
Communication setting may be changed using the parameter method with GX Developer and FXGP/WIN for
Windows. This section describes how to change parameters with GX Developer.
5.2.1 Operating procedure
With GX Developer open, follow the steps in this section for activating the serial communication setting
method.

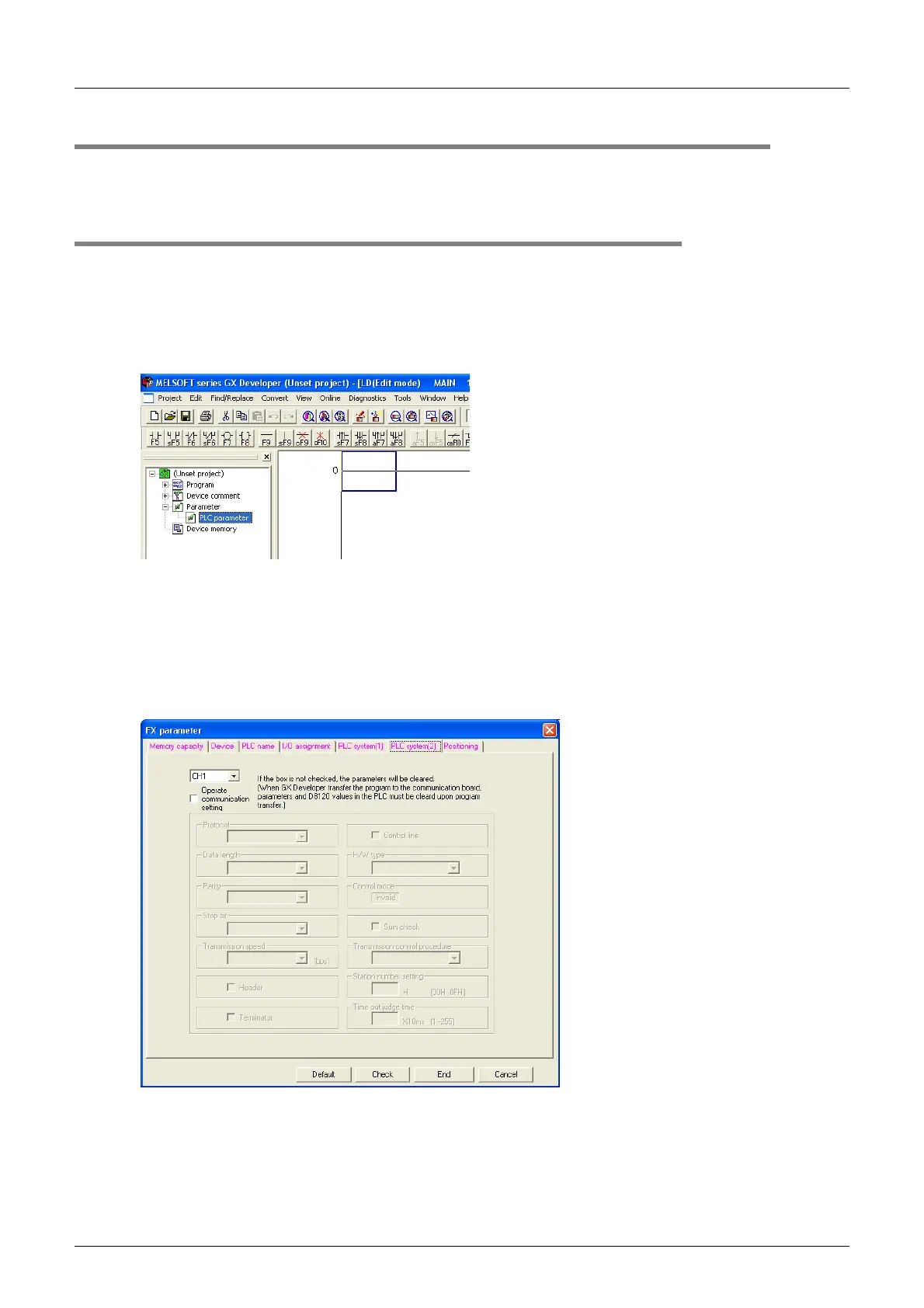

1 Opening the parameter setting window
Double-click [Parameter] - [PLC parameter] from the project tree.
If the project tree is not displayed, select [View] - [Project data list] from the toolbar.
2 Setting the serial communication (parameters)
Select a channel to be used, and click the [PLC system(2)] tab on the dialog box.
Make sure that the "
Operate communication setting" check box is clear.
If a check mark is there, clear it.
3 Writing parameters and program to the PLC
Select [Online] - [Write to PLC] from the toolbar, put a check mark next to "Parameter" and
"Program", and then click [Execute].
