C-29
FX Series PLC User's Manual - Data Communication Edition
Parallel Link
5 Communication Setting (Initialization) in FX Programmable Controller
5.1 Check Procedure
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter
Communication
F
Non-Protocol
Communication
(RS/RS2 Instruction)
G
Non-Protocol
Communication
(FX
2N
-232IF)
H
Programming
Communication
I
Remote
Maintenance
Apx.
Discontinued
models
5. Communication Setting (Initialization) in FX
Programmable Controller
The communication setting is not required in FX PLCs for parallel link.
If the communication setting is already provided for another communication type or for checking the existing
communication setting, perform the following procedure.
When executing the parallel link in ch2 in an FX
3U or FX3UC PLC, check D8420 using the following
procedure.
5.1 Check Procedure
1 Monitoring D8120
Turn ON the power to the PLC while it is in STOP mode, and monitor D8120.
1. When the value of D8120 is "0"
The communication setting is not provided.
2. When the value of D8120 is any value other than "0"
The communication setting is provided.
2 Checking absence/presence of parameter setting
Check absence/presence using the GX Developer or FXGP/WIN.
1) GX Developer operating procedure (For details, refer to Section 5.2.)
2) FXGP/WIN operating procedure (For details, refer to Section 5.3.)
3 Checking absence/presence of sequence program setting
Check whether or not a write instruction is programmed for D8120.
1. When such an instruction is programmed

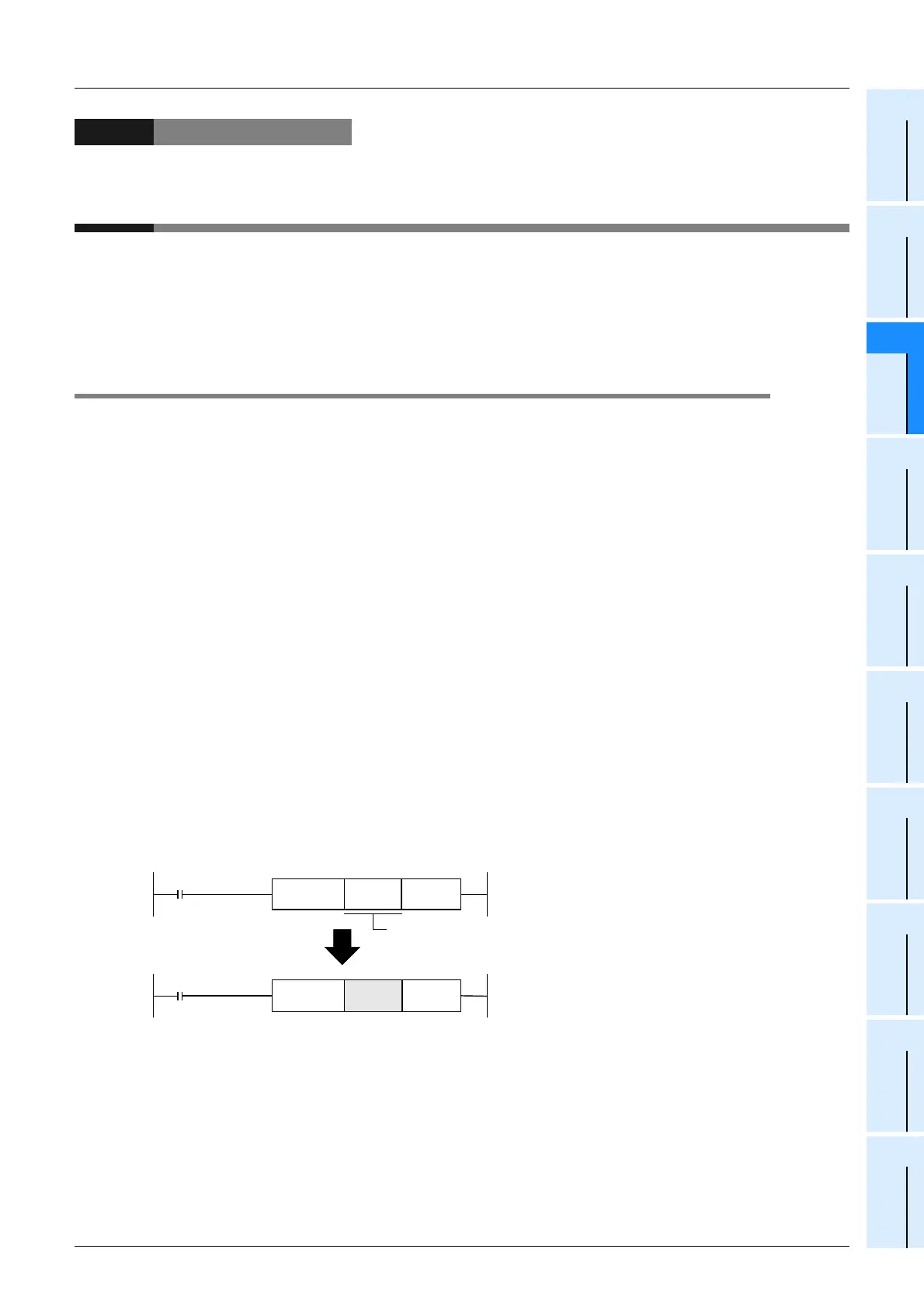

Program example:
Change the program as shown below, and then change the PLC mode from STOP to RUN.
2. When such an instruction is not programmed
Proceed to the next step.
4 Monitoring D8120 again, and confirming that its value is "0"
FNC 12
MOV
H0000 D8120
M8002
Initial pulse
M8002
Initial pulse
FNC 12
MOV
H23F6 D8120 Program example
Changed program
The value varies depending on
the communication setting.
To Next Page
