FX Series PLC User's Manual - Data Communication Edition
Common Items
1 Introduction
1.2 Outline and Features of Communication Types
1.2.9 CC-Link/LT Network
→ For FX3UC-32MT-LT built-in CC-Link/LT master, refer to FX3UC Hardware Edition.
→ For the FX
2N-64CL-M, refer to the product manual.
1. Outline
2. Applicable PLCs
: Applicable (If applicable versions are limited, they are described inside ( ).)
—: Not applicable
3. Communication target
Equipment operating in accordance with the CC-Link/LT network standard
4. Function
This network allows remote control of I/O information for sensors, lamps, etc.
Input (X) numbers and output (Y) numbers can be handled, and I/O points can be assigned continuously even
if 2-point or 4-point type remote I/O units are being used.
5. Applications
Wire conservation for inputs and outputs.
6. Detailed information on CC-Link/LT
For product information on CC-Link, refer to the CC-Link Partner Association's homepage or catalogues
(issued by the CC-Link Partner Association).
→ CC-Link Partner Association's homepage: http://www.cc-link.org/
PLC FX2(FX),FX2C FX0N FX1S FX1N,FX1NC FX2N FX2NC FX3U,FX3UC
Communication applicability — — —  

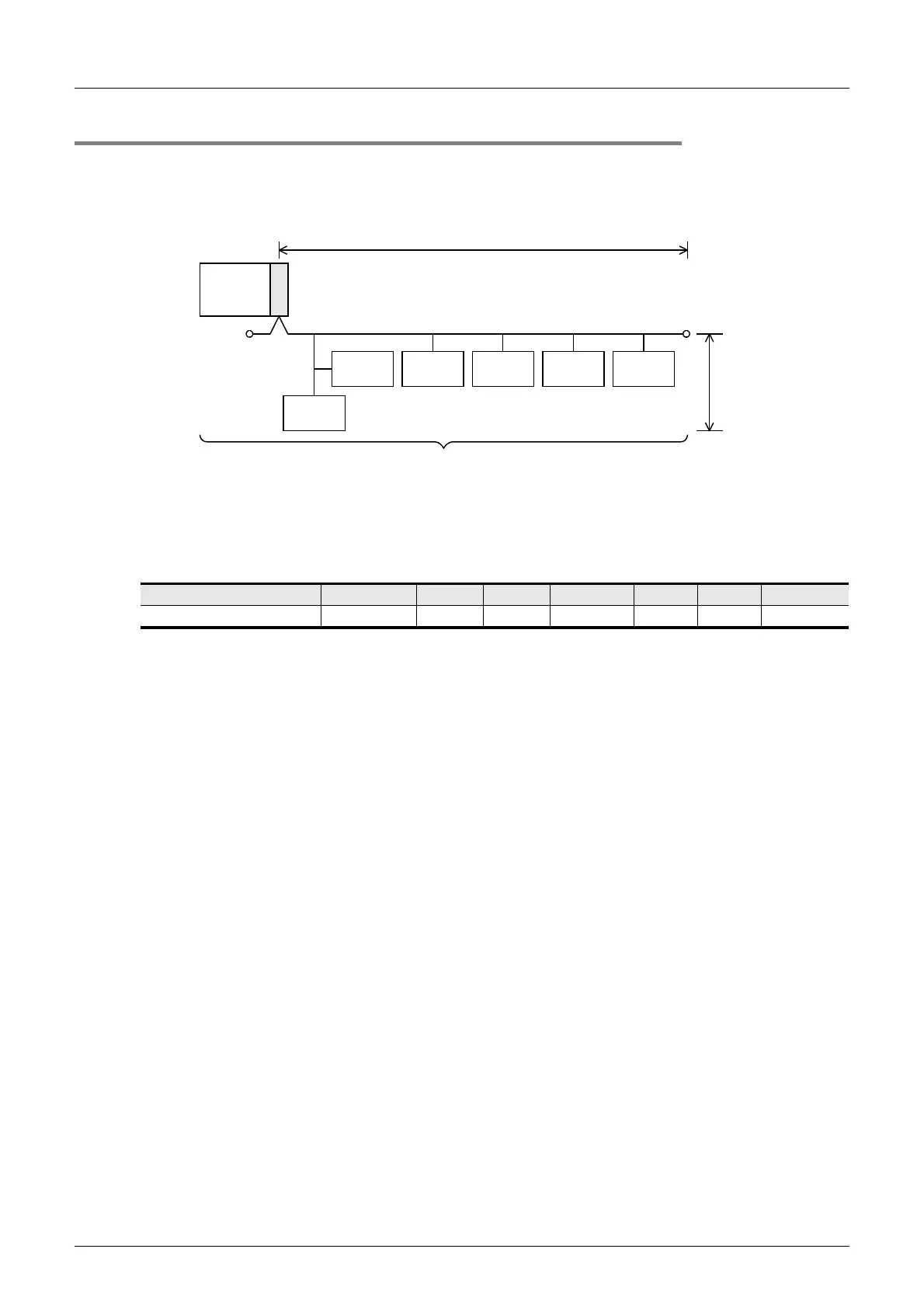

Master
FXCPU
•
Number of connectable units : 64 (stations)
•
Total extension length : 500 m (1640' 5") (main line length)
Terminal resistor
Terminal
resistor
Remote
I/O
Remote
I/O
Remote
I/O
Remote
I/O
Remote
I/O
Remote
I/O
Main line length
Branch line
length
