6.2 Communication Setting Using Parameter Method (GX Developer)
Two software packages, GX Developer and FXGP/WIN for Windows, are applicable to the parameter
method. This section explains the parameters using GX Developer.
Applicable models: FX
2N, FX2NC, FX3U, and FX3UC Series
6.2.1 Operating procedure
This subsection explains the serial communication setting method. Suppose that GX Developer is already
started up.

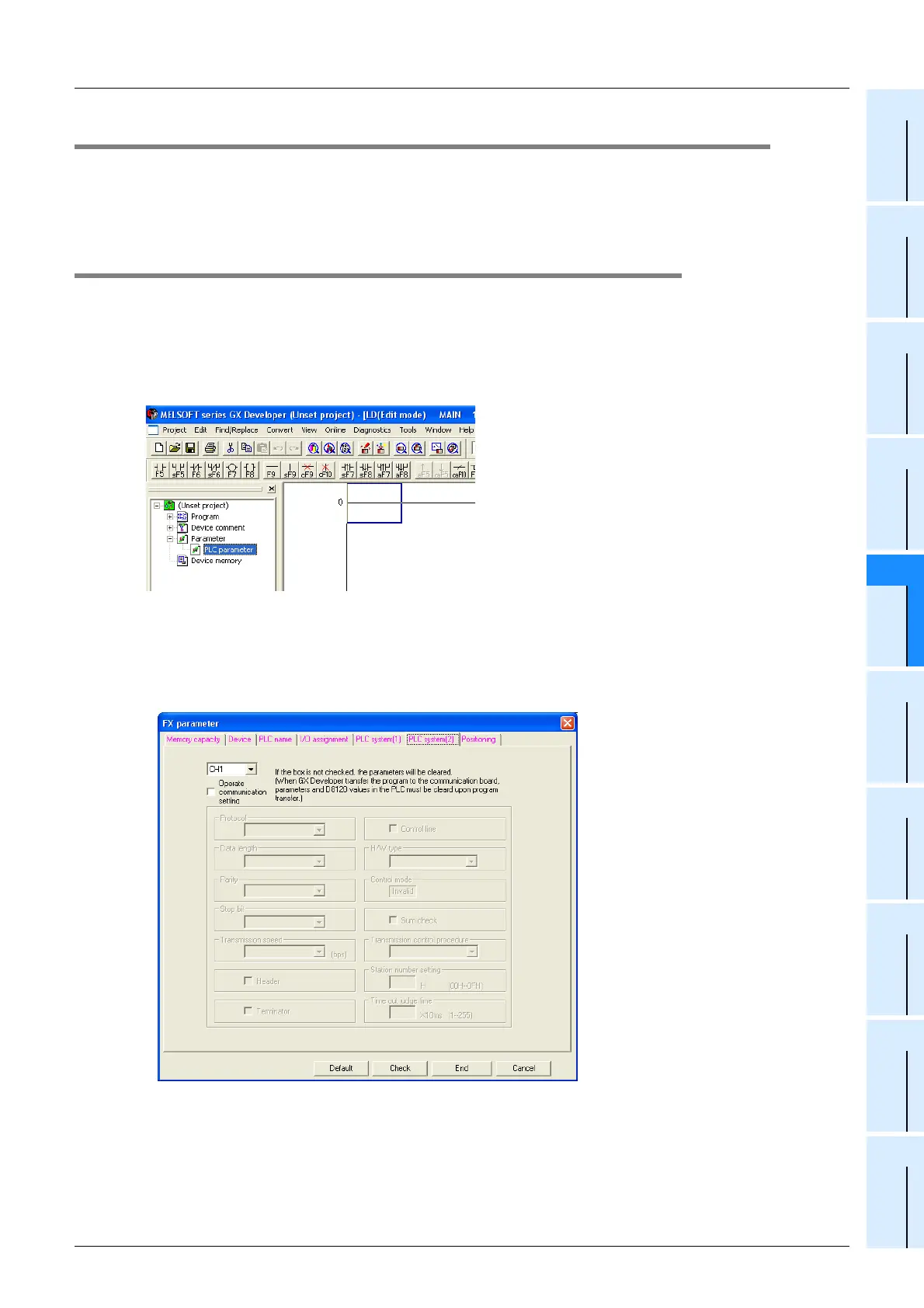

1 Opening the parameter setting window
Double-click [Parameter]-[PLC parameter] from the project tree.
If the project tree is not displayed, select [View] - [Project data list] from the toolbar.
2 Setting the serial communication (parameters)
Click the [PLC system(2)] tab in the "FX parameter window".
