F-6
FX Series PLC User's Manual - Data Communication Edition
Non-Protocol Communication (RS/RS2 Instruction)
1 Outline
1.3 Communication Type Applicability in PLC
1.3 Communication Type Applicability in PLC

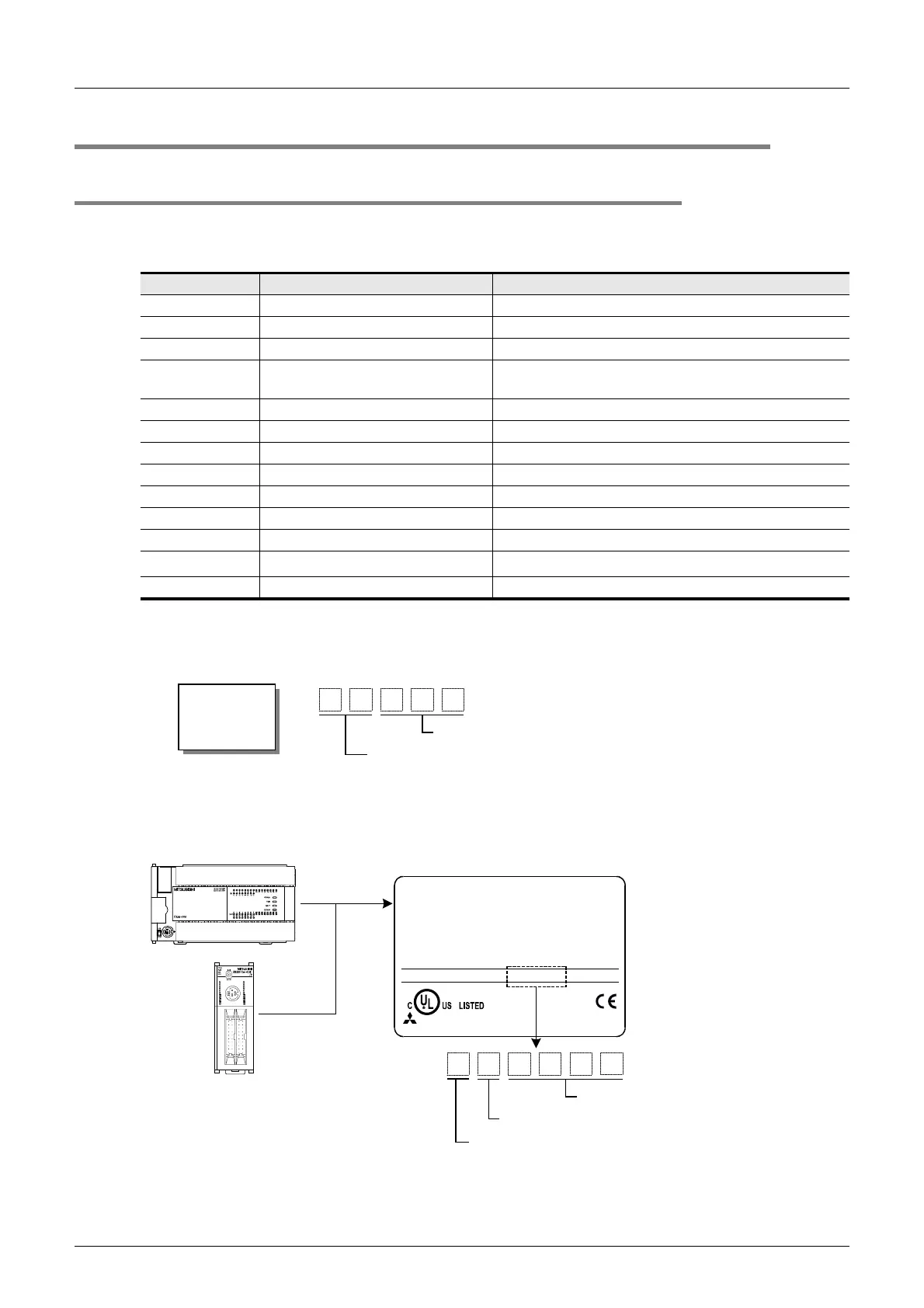

1.3.1 Applicable versions
The communication types are applicable in the following versions.
: Applicable (If applicable versions are limited, they are described inside ( ).)
—: Not applicable
*1. Applicable in products manufactured in January, 1994 (manufacturer’s serial No.: 41****) and later.
1. Version check
The D8001(decimal) special data register contains information for determining the PLC version.
2. How to look at the manufacturer's serial number
The year and month of production of product can be seen from the Manufacturer's serial number "SERIAL"
indicated on the label adhered to the right side of the product.
PLC Applicability (applicable version) Remarks
FX
3UC Series  Full-duplex communication/half-duplex communication
FX
3U Series  Full-duplex communication/half-duplex communication
FX
2NC Series  Full-duplex communication/half-duplex communication
FX
2N Series  (Ver. 1.06 or later)
Full-duplex communication (Ver. 2.00 or later)/half-duplex
communication
FX
1NC Series  Half-duplex communication
FX
1N Series  Half-duplex communication
FX
1S Series  Half-duplex communication
FX
0N Series  (Ver. 1.20 or later) Half-duplex communication
FX
0S Series — Non-protocol communication is not provided
FX
0 Series — Non-protocol communication is not provided
FX
2C Series  Half-duplex communication
FX
2(FX) Series
 (Ver. 3.07 or later)
*1
Half-duplex communication
FX
1 Series — Non-protocol communication is not provided
D8001
PLC type and
version
2 4 2 5 1
Version information (Example: Ver. 2.51)
PLC type (Example: 24 = FX
2N
, FX
3U
, FX
2NC
or FX
3UC
Series)
Right side
5 7 0 0 0
Control number
Year (Example: 5 = 2005) ... last digit of year
1
Month (Example: 7=July) (1 to 9 = January to September,
X = October, Y = November, Z = December)
Example: FX
3U
-48MR/ES (manufacturer's serial number: 570001)
MITSUBISHI
MODEL
100-240VAC 50/60Hz 40W
SERIAL
FX
3U
-48MR/ES
PROGRAMMABLE
CONTROLLER
570001
OUT:30VDC/240VAC 2A(COS
φ
=1)
80M1 IND. CONT. EQ.
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
To Next Page
