3. System Configuration and Selection
This chapter explains the configuration of communication equipment operating in accordance with RS-232C
and selection of the system required by FX PLCs.
3.1 System Configuration
This section outlines the system configuration required to use remote maintenance.
Connect (optional) equipment operating in accordance with RS-232C to the FX PLC main unit.

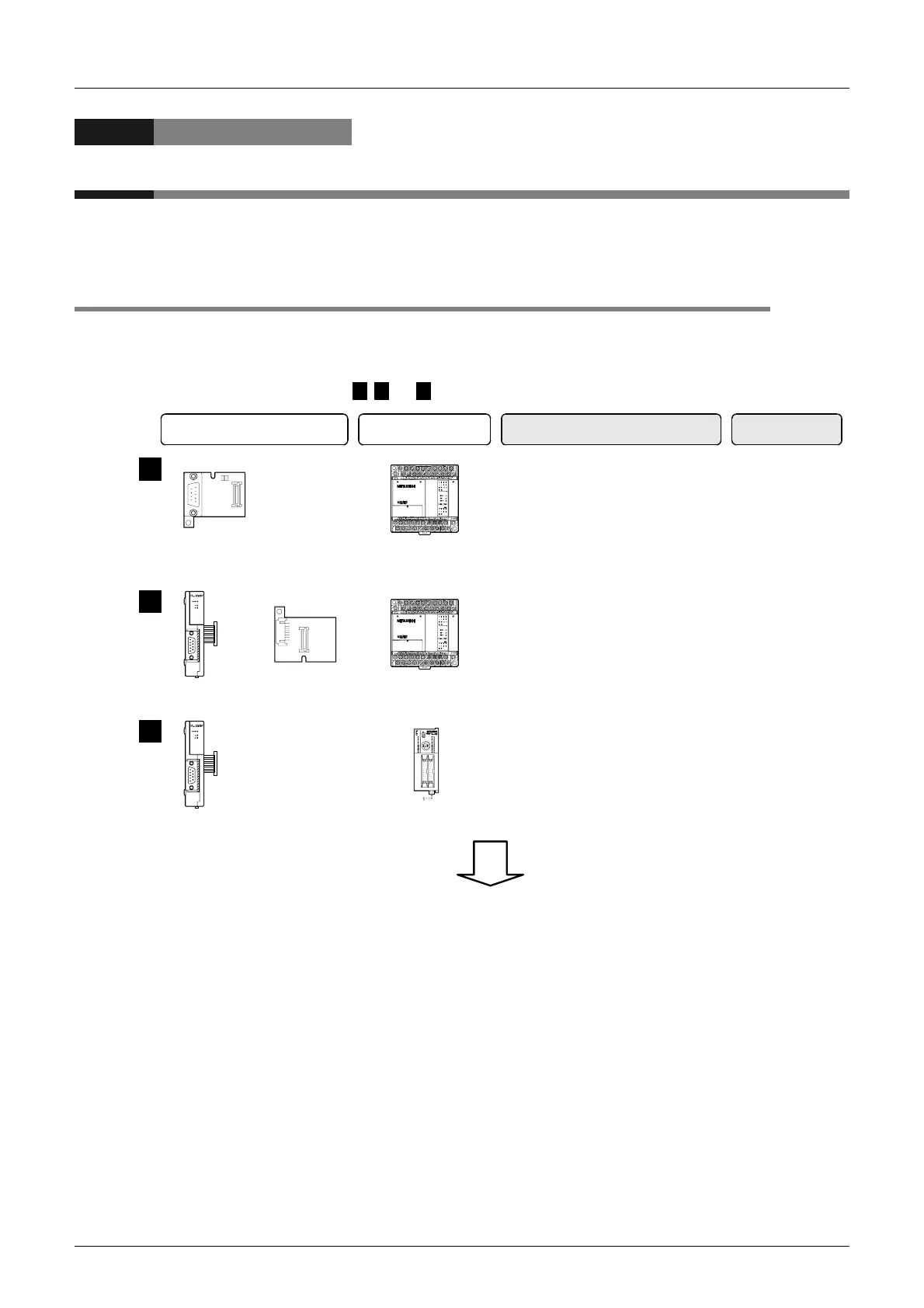

, and indicate the communication equipment combination patterns.
1 2 3
Communication equipment operating
in accordance with RS-232C
+
FX PLC
+
Communication
board
Communication
adapter
+
Connector
conversion board
This is the communication board built
into the PLC, reducing the installation
area.
Important point in selection
Attach the connector conversion
board to the main unit, and then
attach the communication adapter to
the left side of the main unit.
Total extension
distance
15 m
(49' 2")
15 m
(49' 2")
1
2
+
Communication
adapter
Attach the communication adapter to
the left side of the main unit.
3
For communication equipment combinations for each FX Series, refer to the next page.
15 m
(49' 2")
The total extension distance should
conform to the modem specifications in
both cases in which a cable supplied with
the modem is used and which another
prepared cable is used.
To Next Page
