Mitsubishi FX3U-232-BD User Manual

H-10
FX Series PLC User's Manual - Data Communication Edition
Programming Communication
2 System Configuration and Selection

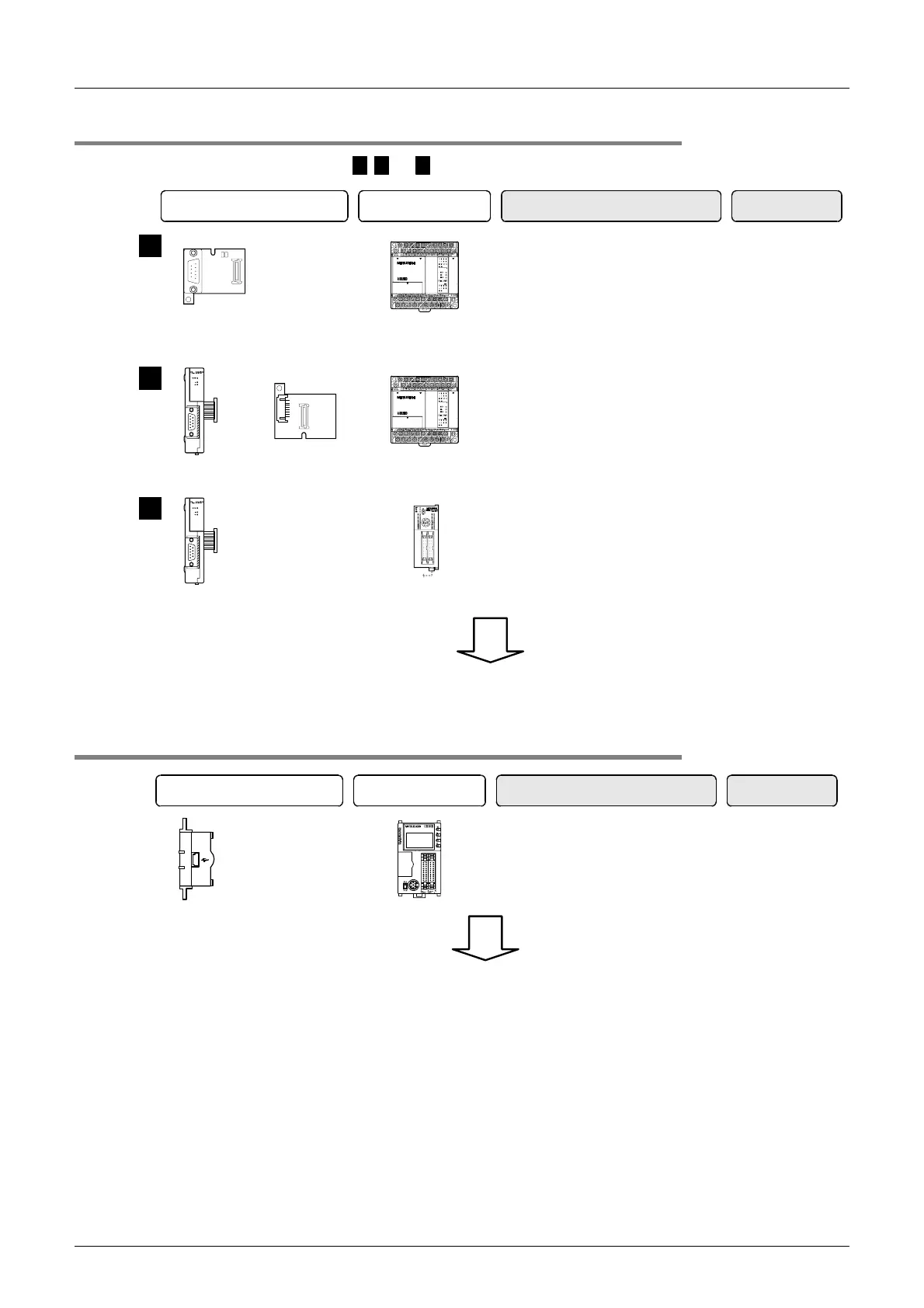

2.1 System Configuration
2.1.2 For communication equipment operating in accordance with RS-232C
2.1.3 For communication equipment operating in accordance with USB
, and indicate the communication equipment combination patterns.
1 2 3
Communication equipment operating
in accordance with RS-232C
+
FX PLC
+
Communication
board
Communication
adapter
+
Connector
conversion board
This is the communication board built
into the PLC, reducing the installation
area.
Important point in selection
Attach the connector conversion
board to the main unit, and then
attach the communication adapter to
the left side of the main unit.
Total extension
distance
15 m
(49' 2")
15 m
(49' 2")
1
2
+
Communication
adapter
Attach the communication adapter to
the left side of the main unit.
3
For communication equipment combinations for each FX Series, refer to the next section.
15 m
(49' 2")
Communication equipment operating
in accordance with USB
+
FX PLC
Communication
board
This is the communication board built
into the PLC, reducing the installation
area.
Important point in selection
Total extension
distance
5 m
(16' 4")
For communication equipment combinations for each FX Series, refer to the next section.
RD
SD
