1.2 Outline and Features of Communication Types
This section outlines the communication types supported by FX PLCs.

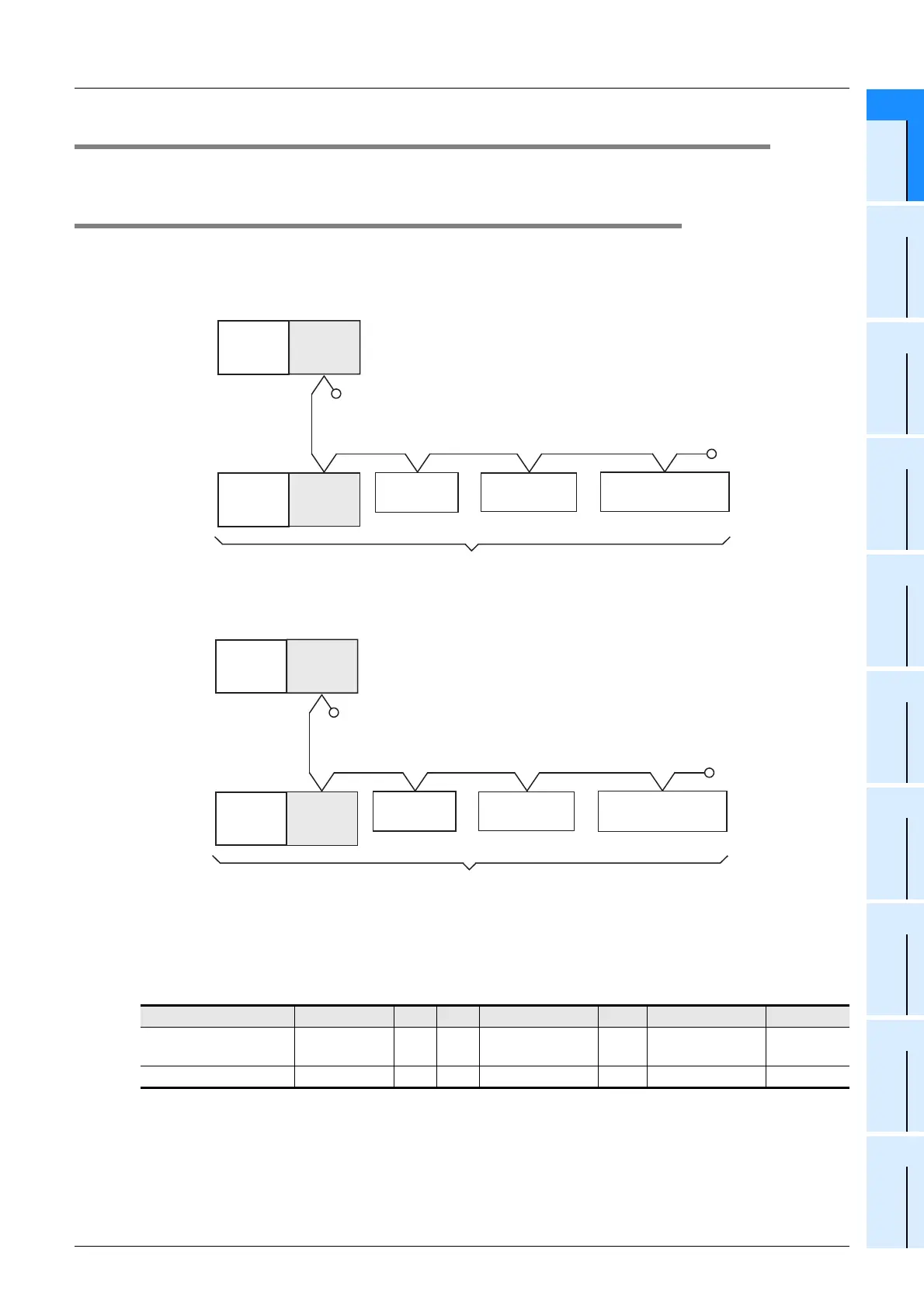

1.2.1 CC-Link Network
→ Refer to the manual of each special function product.
1. Outline
1) When the master station is an A/QnA/Q PLC
2) When the master station is an FX PLC
2. Applicable PLCs
: Applicable (If applicable versions are limited, they are described inside ( ).)
—: Not applicable
3. Communication targets
Equipment operating in accordance with the CC-Link standard
4. Function
This network allows connection of inverters, AC servos, sensors, solenoid valves, etc. supporting the CC-Link
network to achieve data link.
FX PLCs are classified as master stations or remote device stations.
PLC FX2(FX),FX2C FX0N FX1S FX1N FX1NC FX2N,FX2NC FX3U,FX3UC
Master station — — —

(Ver.1.10 or later)


(Ver.2.20 or later)

Remote device station —  —  
ACPU,
QnACPU,
QCPU
Master
station
Terminal resistor
FXCPU
Remote
device
station
Remote I/O
for CC-Link
Inverter,
AC servo, etc.
Sensor, solenoid valve,
etc.
Terminal resistor
• Number of connectable units
• Total extension distance
: 64 maximum
: 1200 m (3937’ 0")
Master
station
Terminal resistor
FXCPU
FXCPU
Remote
device
station
Remote I/O
for CC-Link
Inverter,
AC servo, etc.
Sensor, solenoid valve,
etc.
Terminal resistor
• Number of connectable units
• Total extension distance
: Remote I/O station
: Remote device station
: 1200 m (3937’ 0")
7 maximum
8 maximum
