5.3.2 Parameter setting method (reference)
This subsection explains the parameter setting method using the operation panel.
For details on the operation panel, refer to the respective inverter manual.
The operating procedure example below shows a case in which the baud rate is set to 19200 bps.
1 Confirming the RUN indicator and the operation mode indicator
Confirm that the operation is stopped (that the RUN indicator is Off).
2 Selecting the parameter setting mode
Press the MODE key, and select the parameter setting mode.
*1. The frequency setting mode is displayed only in the PU operation mode.
3 Reading the parameter (Pr. 118)
There are two methods to read the parameter number:
• Method to read the parameter number using the UP and DOWN keys
Press the UP and DOWN keys, and display the parameter number to be read.

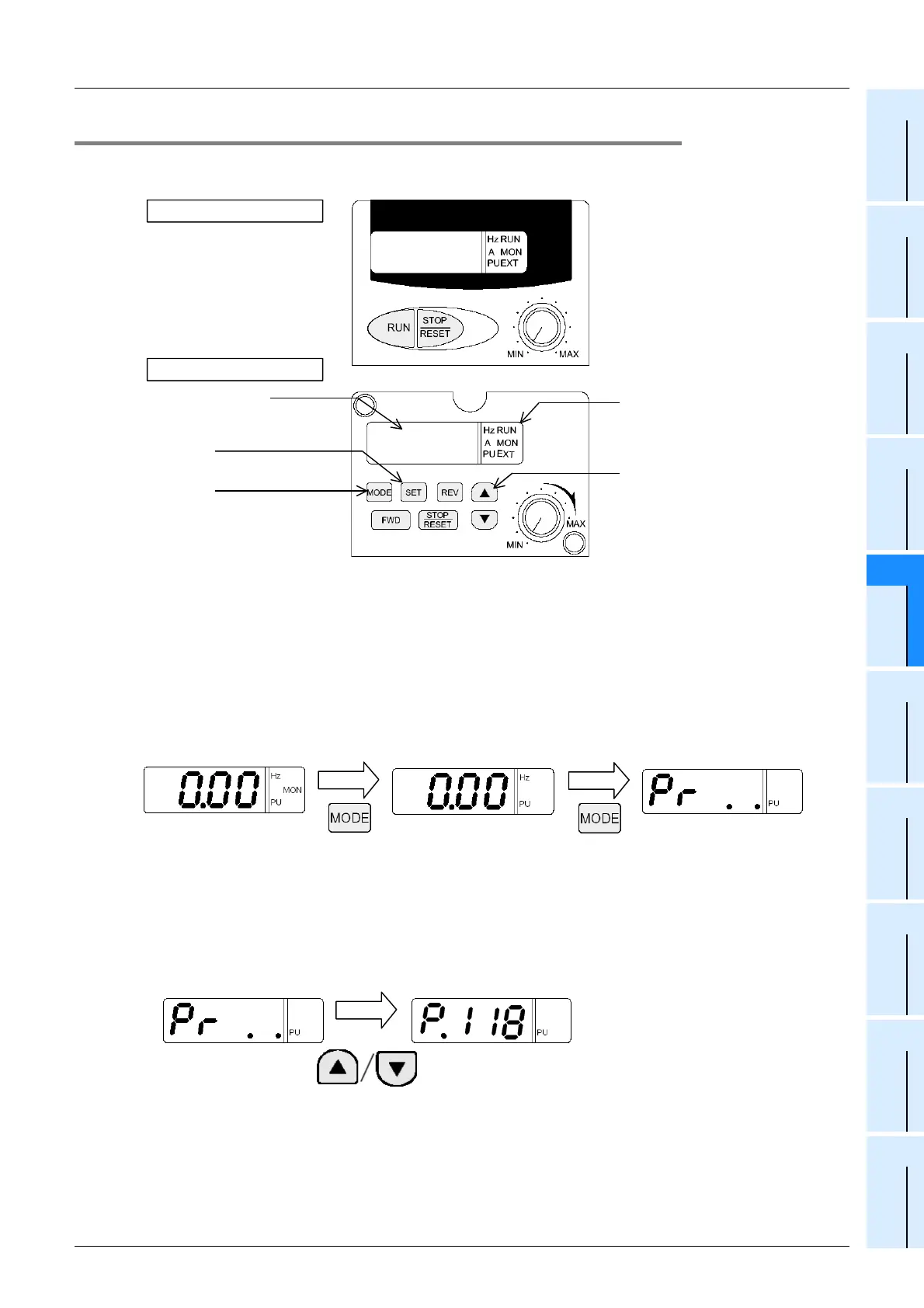

When the cover is closed
Unit indicator
Operation status indication
The LEDs light and flash according
to the mode and operation status.
UP/DOWN key
Change the set value of the
frequency and parameters.
Display LED 4 digits
Displays the frequency,
parameter number, etc.
MODE key
Changes over the mode.
Setting key
Sets each setting.
When the cover is open
Monitoring mode Frequency setting mode
*1
Parameter setting mode
To Next Page
