FX Series PLC User's Manual - Data Communication Edition
Inverter Communication
4 Wiring
4.4 Connection Devices (RJ45 Connector and Distributor)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

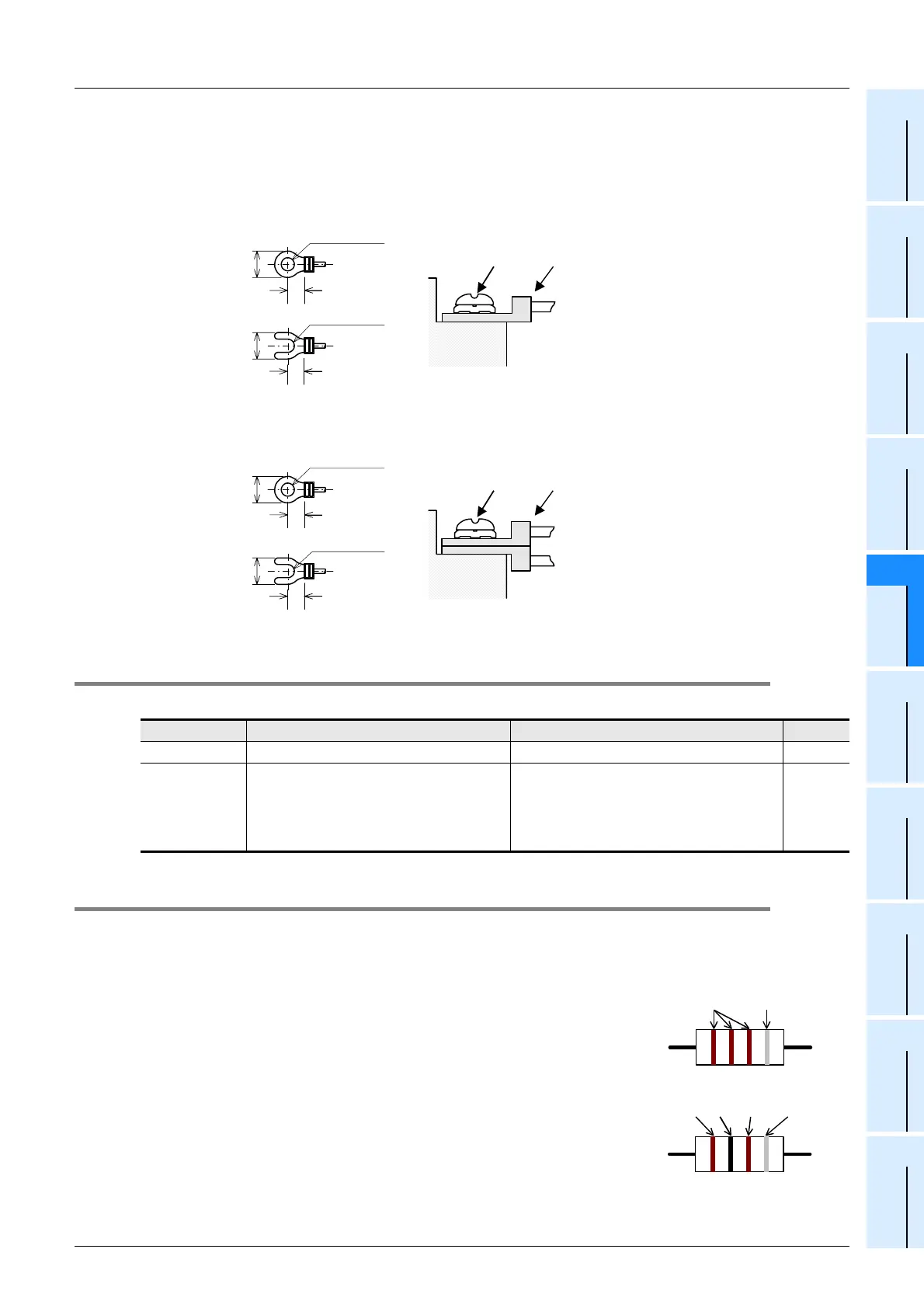

2. Terminal block
In the FX0N-485ADP, the terminal screw size is "M3".
Make sure to use a crimp-style terminal with the following sizes.
Make sure that the tightening torque is 0.5 to 0.8 N·m.
• When wiring one cable to one terminal
• When wiring two cables to one terminal
4.4 Connection Devices (RJ45 Connector and Distributor)
Prepare the following devices if necessary.
4.5 Connecting Terminal Resistors
Connect a terminal resistor to both the communication equipment of the FX PLC and the RDA-RDB signal
terminal in the last inverter.
→ For details on connection, refer to each wiring diagram.
1. Terminal resistor types
Prepare the following two types of terminal resistors.
Among the terminal resistors supplied with the communication equipment,
select ones with the color codes shown to the right.
1) On the FX PLC side, use a terminal resistor of 110 Ω, 1/2 W supplied
together with the communication equipment operating in accordance with
RS-485.
2) On the inverter side (PU connector except FR-A5NR), use a terminal
resistor of 100 Ω, 1/2 W (not supplied).
3) On the inverter side (FR-A5NR), use a terminal resistor chip (supplied
together with the FR-A5NR).
Product name Model name Manufacturer Check
RJ45 connector 5-554720-3 Tyco Electronics AMP K.K.
Distributor
BMJ-8
Modular rosette
Do not use a plug with terminal resistor
supplied together with the modular rosette
above.
HACHIKO ELECTRIC CO., LTD
Terminal
Terminal
screw
Crimp-style
terminal
6.2 mm (0.24")
or less
φ 3.2 (0.13")
6.3 mm (0.25")
or more
6.2 mm (0.24")
or less
6.3 mm (0.25")
or more
φ 3.2 (0.13")
6.2 mm (0.24")
or less
φ 3.2 (0.13")
6.3 mm (0.25")
or more
6.2 mm (0.24")
or less
6.3 mm (0.25")
or more
φ 3.2 (0.13")
Terminal
Terminal
screw
Crimp-style
terminal
1 1 1 =110 Ω
Brown
(10
1
)
Precision
1 0 1 =100 Ω
(10
1
)
Black PrecisionBrownBrown
