Mitsubishi FX3U-232-BD User Manual

F-65
FX Series PLC User's Manual - Data Communication Edition
Non-Protocol Communication (RS/RS2 Instruction)
10 When Combined with Another Communication
10.2 When Combined with Programming Communication
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

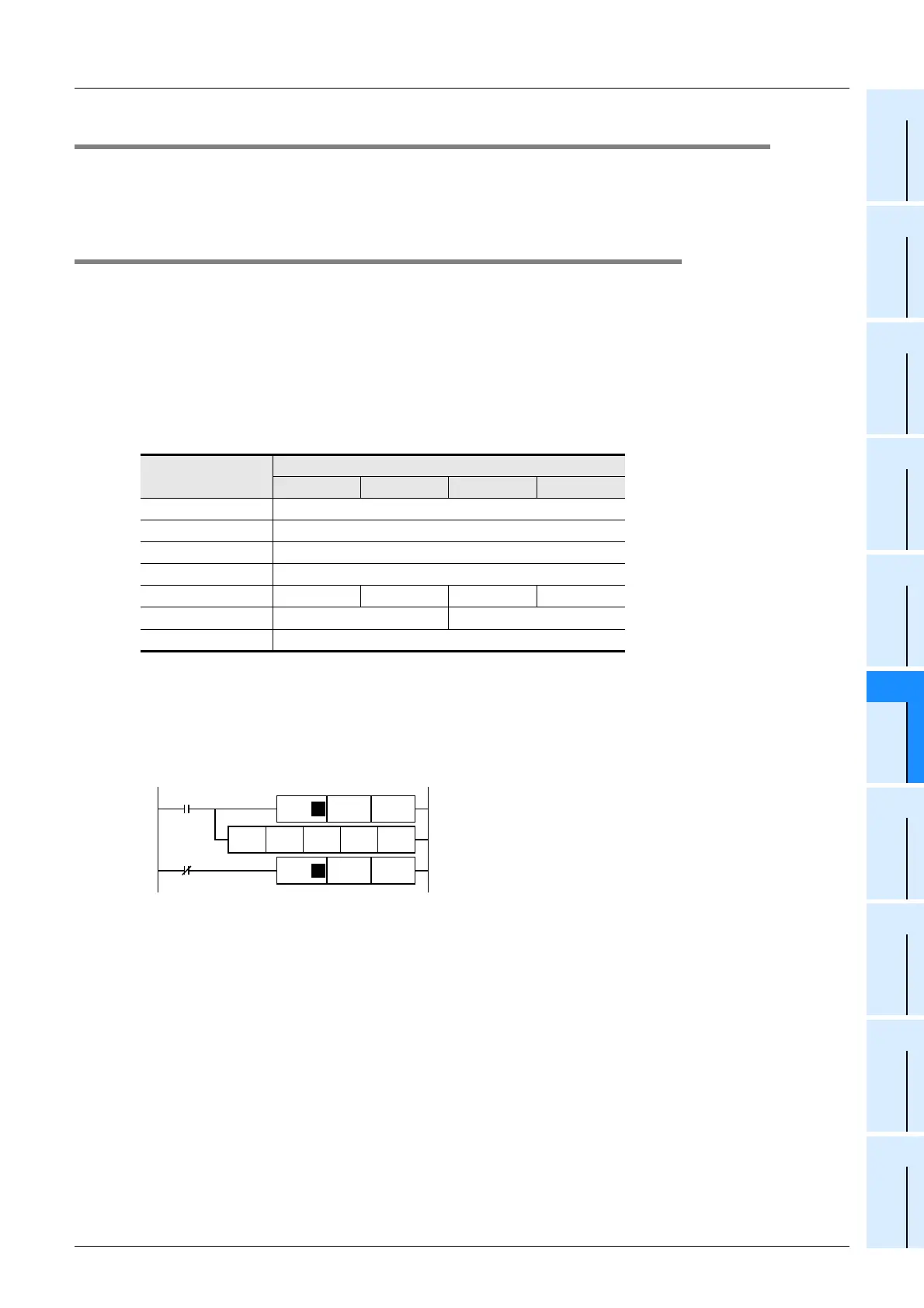

10.2 When Combined with Programming Communication
In FX2N (Ver. 2.01 or later), FX3U, FX2NC, and FX3UC PLCs, non-protocol communication in accordance with
RS-232C using RS instruction can be changed over to the programming communication for peripheral
equipment.
10.2.1 For FX2N and FX2NC PLCs
In FX2N (Ver. 2.01 or later) and FX2NC PLCs, non-protocol communication using RS instruction by way of RS-
232C port in the FX
2N-232-BD (for FX2N PLCs), FX0N-232ADP, or FX2NC-232ADP can be changed over to
the communication with a programming tool (programming communication) by the following methods.
If the external equipment executes another type of communication while the programming communication is
selected, the PLC sends back "NAK".
1. When changing over using RUN mode and STOP mode
Set the communication format to one of the settings shown below to use non-protocol communication (in
accordance with RS-232C) using the RS instruction while in RUN mode and then use the programming
communication while in STOP mode.
2. When changing over using the RS instruction while in RUN mode
When changing over non-protocol communication using RS instruction to the programming communication
while in RUN mode, set RS instruction to OFF, and then overwrite the communication format (D8120) to
"H0000".
Before starting up RS instruction again, make sure to properly overwrite the communication format (D8120)
used in the RS instruction.
In this setting also, the communication mode can be changed over using RUN mode and STOP mode if the
condition shown in 1 above is satisfied.
3. Caution on using the RS instruction and programming communication together
Do not use the communication setting by parameters. Use the communication format device (D8120).
Item
Contents
H0086 H0186 H0286 H0386
Data length 7-bit
Parity bit Even
Stop bit 1-bit
Baud rate (bps) 9600 bps
Header Not provided Provided Not provided Provided
Terminator Not provided Provided
Control line Not provided
X0
X0
MOV
H0000 D8120
RS D1 K1 D2 K1
H0086 D8120
P
MOV
P
