Mitsubishi FX3U-232-BD User Manual

B-13
FX Series PLC User's Manual - Data Communication Edition
N:N Network
3 System Configuration and Equipment Selection
3.2 Applicable FX PLC and Communication Equipment
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

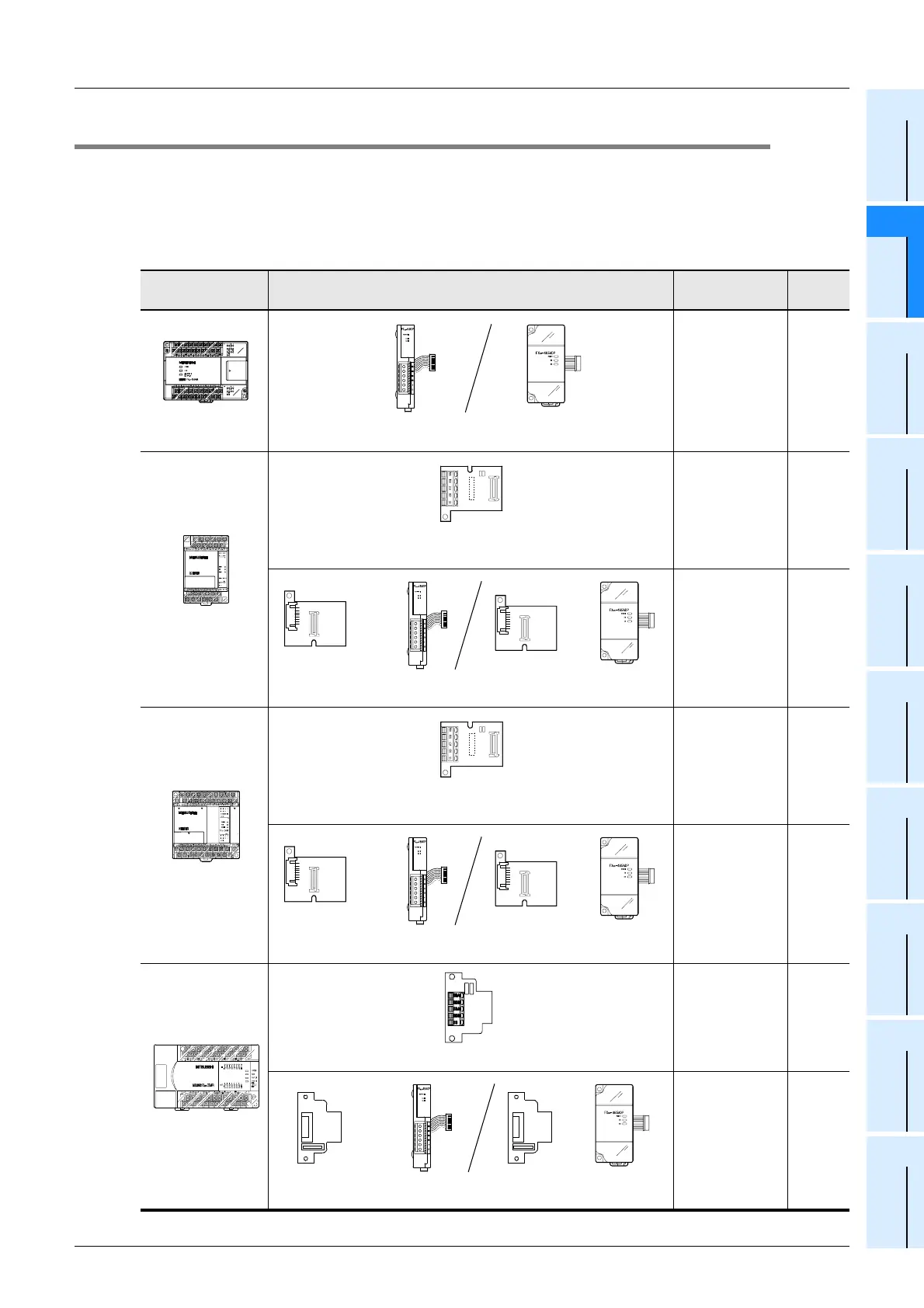

3.2 Applicable FX PLC and Communication Equipment
Select a (optional) communication equipment combination, and put a check mark in the "Check" column.
During selection, pay attention to the following:
- In the table below, only the external dimensions are different between the units shown in "FX
2NC-
485ADP/FX
0N-485ADP". Select either one.
- N:N Network is not provided for the FX
0, FX0S, FX1, FX2(FX) and FX2C Series.
FX Series Communication equipment (option)
Total extension
distance
Check
FX0N
500 m
(1640' 5")
FX
1S
50 m
(164' 0")
500 m
(1640' 5")
FX
1N
50 m
(164' 0")
500 m
(1640' 5")
FX
2N
50 m
(164' 0")
500 m
(1640' 5")
FX 2NC -485ADP
(European terminal block)
FX 0N -485ADP
(Terminal block)
FX 1N -485-BD
(European terminal block)
FX 1N -CNV-BD
+
FX 2NC -485ADP
(European terminal block)
FX 0N -485ADP
(Terminal block)
FX 1N -CNV-BD
+
FX 1N -485-BD
(European terminal block)
FX 1N -CNV-BD
+
FX 2NC -485ADP
(European terminal block)
FX 0N -485ADP
(Terminal block)
FX 1N -CNV-BD
+
FX 2N -485-BD
FX 2N -CNV-BD
+
FX 2NC -485ADP
(European terminal block)
FX 0N -485ADP
(Terminal block)
FX 2N -CNV-BD
+
