B-38
FX Series PLC User's Manual - Data Communication Edition
N:N Network
8 Practical Program Examples
8.1 Practical Example 1 (Pattern 2)
8.1.5 Setting program for slave station (No. 1)

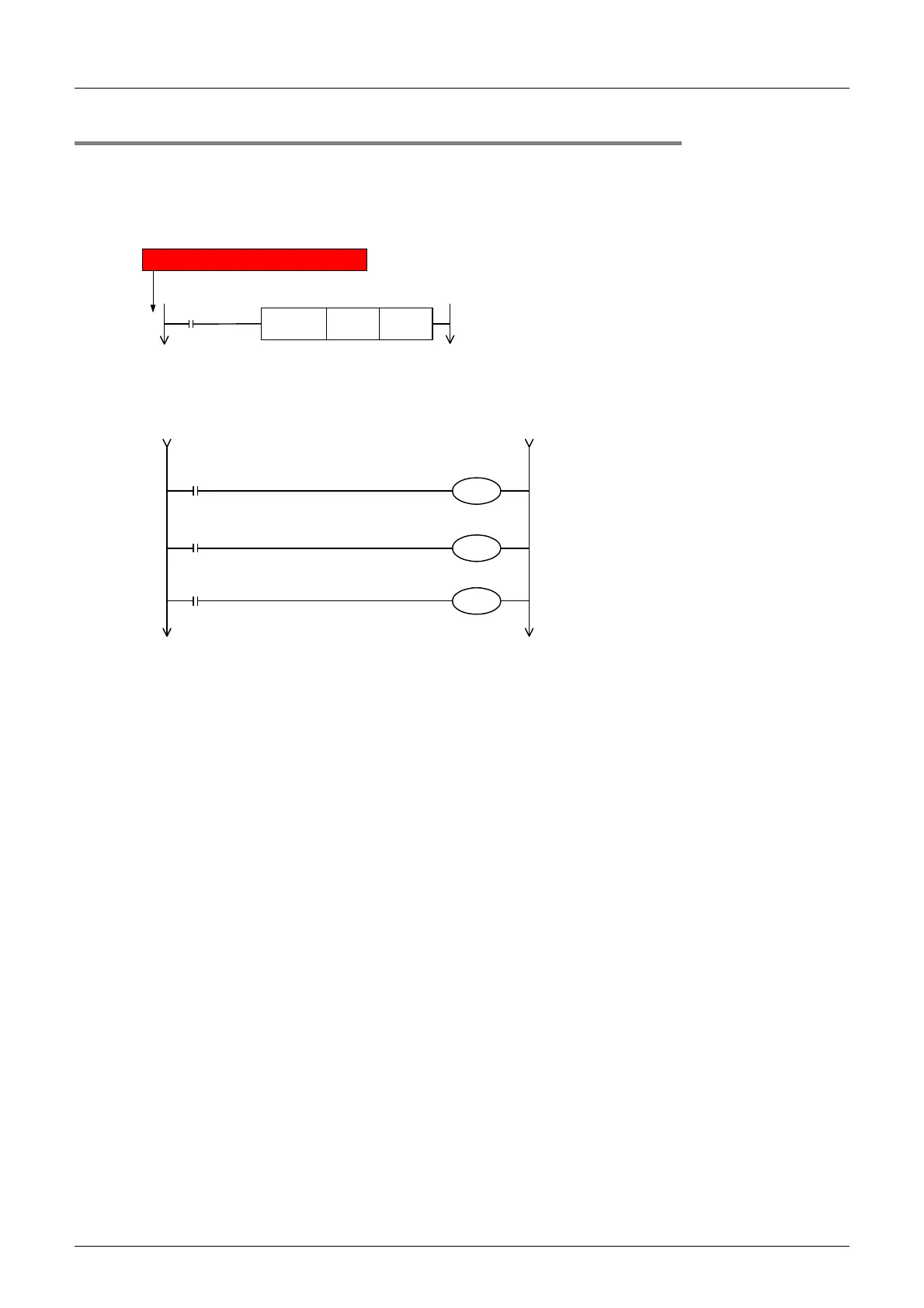

For the slave station setting program, refer to the program shown below.
The program shown below consists of three blocks, "parameter setting program," "error indication program"
and "operation program."
1. Parameter setting program
2. Error indication program
Because slave station No. 1 does not recognize errors within itself (slave station No. 1), programs for errors
within itself are not required.
Parameter setting
M8038
Station number settings: 1 (slave station No. 1)
0
FNC 12
MOV
K 1 D8176
Make sure to start from step 0.
M8183
Data transfer sequence error in master station
Y000
M8185
Data transfer sequence error in slave station No. 2
Y002
M8191
Data transfer sequence ON
Y003
To Next Page
