FX Series PLC User's Manual - Data Communication Edition
Parallel Link
2 Specifications
2.3 Link Device Numbers and Number of Points
2.3.2 For FX2(FX), FX2C, FX1N, FX2N, FX3U, FX1NC, FX2NC and FX3UC Series

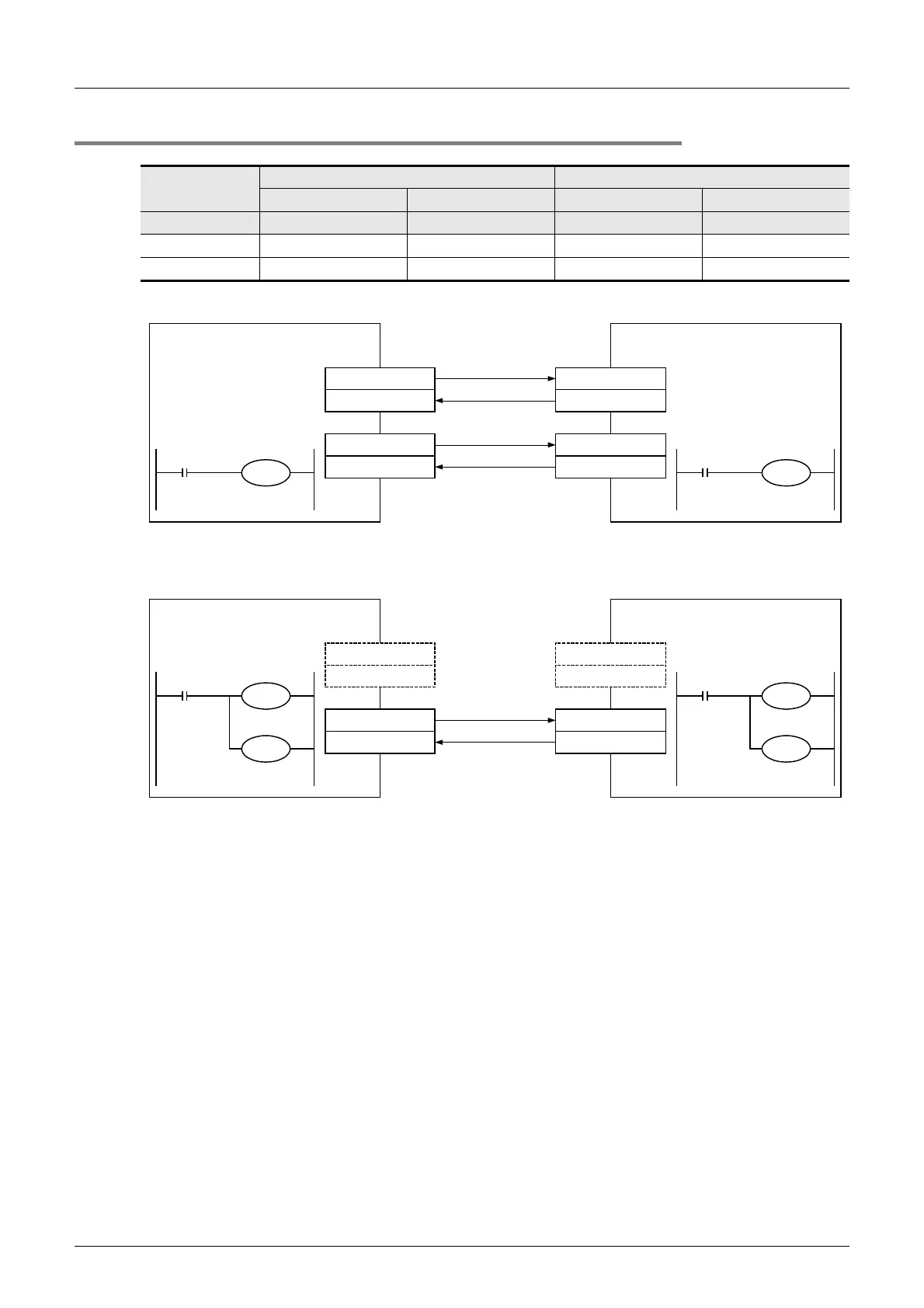

1. Regular parallel link mode
2. High speed parallel link mode
Mode
Regular parallel link mode High speed parallel link mode
Bit device (M) Word device (D) Bit device (M) Word device (D)
Type 100 in each station 10 in each station 0 2 in each station
Master station M800 to M899 D490 to D499 — D490, D491
Slave station M900 to M999 D500 to D509 — D500, D501
M800 to M899
M900 to M999
D490 to D499
D500 to D509
Automatic update
FX 3U , FX 3UC
FX 2N , FX 2NC
FX 1N , FX 1NC
FX 2 (FX), FX 2C
M8000
RUN
monitor
M8070
Master station
M8000
RUN
monitor
M8071
Slave station
M800 to M899
M900 to M999
D490 to D499
D500 to D509
For the master station, set M8070 to ON. For the slave station, set M8071 to ON.
Automatic update
FX
3U , FX 3UC
FX 2N , FX 2NC
FX 1N , FX 1NC
FX 2 (FX), FX 2C
D490, D491
D500, D501
−
−
Automatic update
M8000
RUN
monitor
M8070
M8162
Master station
High speed parallel link
mode
M8000
RUN
monitor
M8071
M8162
Slave station
High speed parallel link
mode
D490, D491
D500, D501
−
−
For the master station, set M8070 and M8162 to ON. For the slave station, set M8071 and M8162 to ON.
FX
3U , FX 3UC
FX 2N , FX 2NC
FX 1N , FX 1NC
FX 2 (FX), FX 2C
FX 3U , FX 3UC
FX 2N , FX 2NC
FX 1N , FX 1NC
FX 2 (FX), FX 2C
