FX Series PLC User's Manual - Data Communication Edition
N:N Network
7 Creating Programs
7.2 Creating Programs for Master Station (Station No. 0)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models
→ For details on link devices, refer to Section 7.1.
→ For cautions on program creation, refer to Section 7.4.

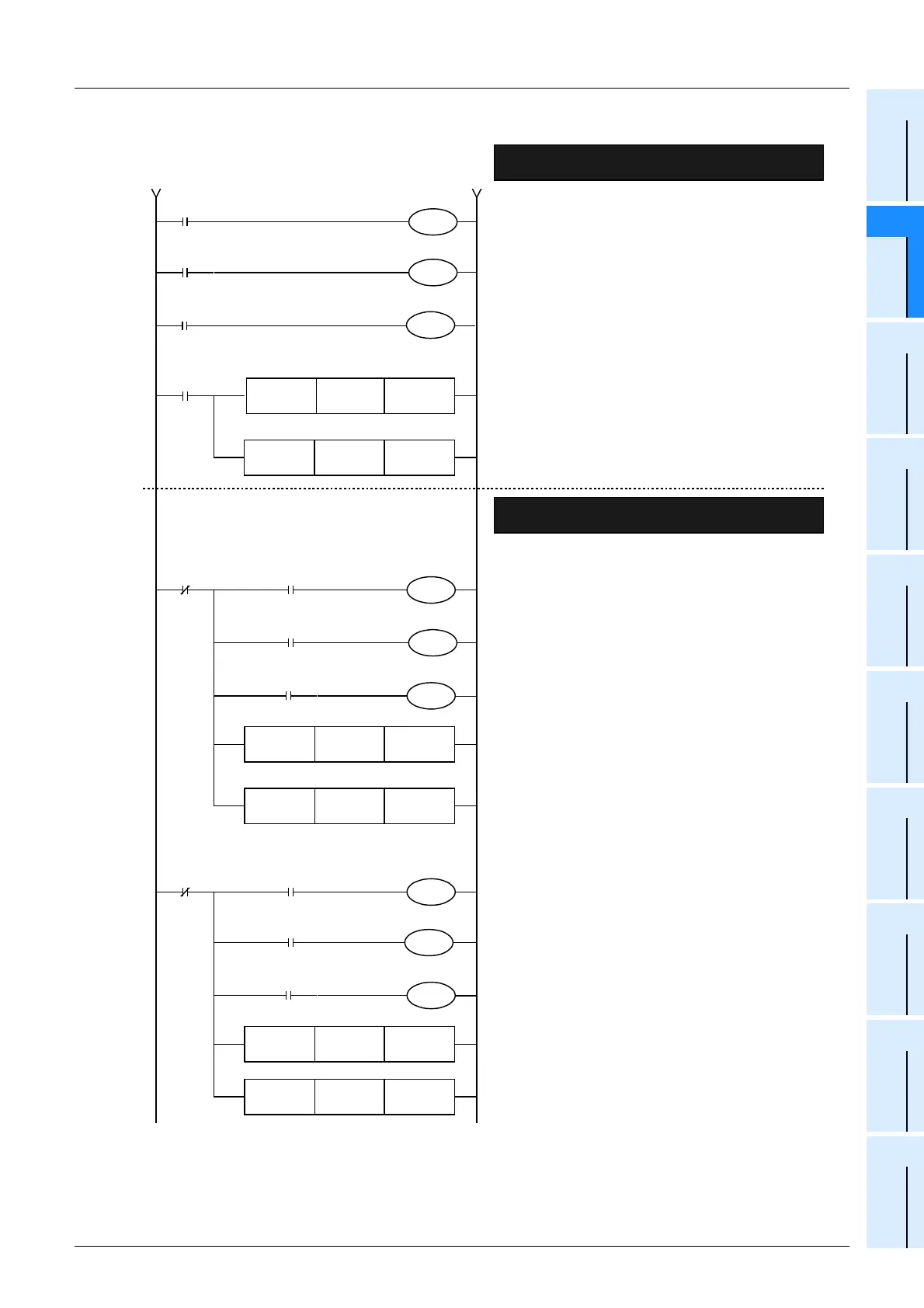

This program is required to write information from the
master station to each slave station.
Program for writing link devices
(master station
→ slave station)
FNC 12
MOV
K4M100 K4M1010
FNC 12
MOV
D100 D0
Station No. 1
Data transfer
sequence error
X000
X002
M10
M8000
M1064
M1065
M1066
M8147
FNC 12
MOV
K4M1070 K4Y020
FNC 12
MOV
D10 D110
Station No. 2
Data transfer
sequence error
M1128
M1129
M1130
M8148
FNC 12
MOV
K4M1140 K4M20
FNC 12
MOV
D20 D200
Y011
M1000
M1001
M1002
M0
M15
Y012
M1
M18
The information from X000 is written to M1000 (link device).
The information from X002 is written to M1001 (link device).
The information from M10 is written to M1002 (link device).
The information from M100 to M115 is written to M1010 to
M1025 (link devices).
The information from D100 is written to D0 (link device).
* In pattern 0, bit devices are not applicable.
Use word devices only.
This program is required to read information from each
slave station to the master station.
Monitor link errors in each slave station, and read them.
Program for reading link devices
(master station
← slave station)
The information from M1064 (link device) is read to M0.
The information from M1065 (link device) is read to Y011.
The information from M1066 (link device) is read to M15.
The information from M1070 to M1085 (link devices) is
read to Y020 to Y037.
The information from D10 (link device) is read to D110.
The information from M1128 (link device) is read to M1.
The information from M1129 (link device) is read to Y012.
The information from M1140 to M1155 (link devices) is
read to M20 to M35.
The information from M1130 (link device) is read to M18.
The information from D20 (link device) is read to D200.
