Inverter Communication
5 Communication Setting in Inverter
5.2 S500 Series (When Connected to RS-485 Port)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models
4 Setting the set value of "n2" to "192"
("192" indicates the baud rate of 19200 bps.)

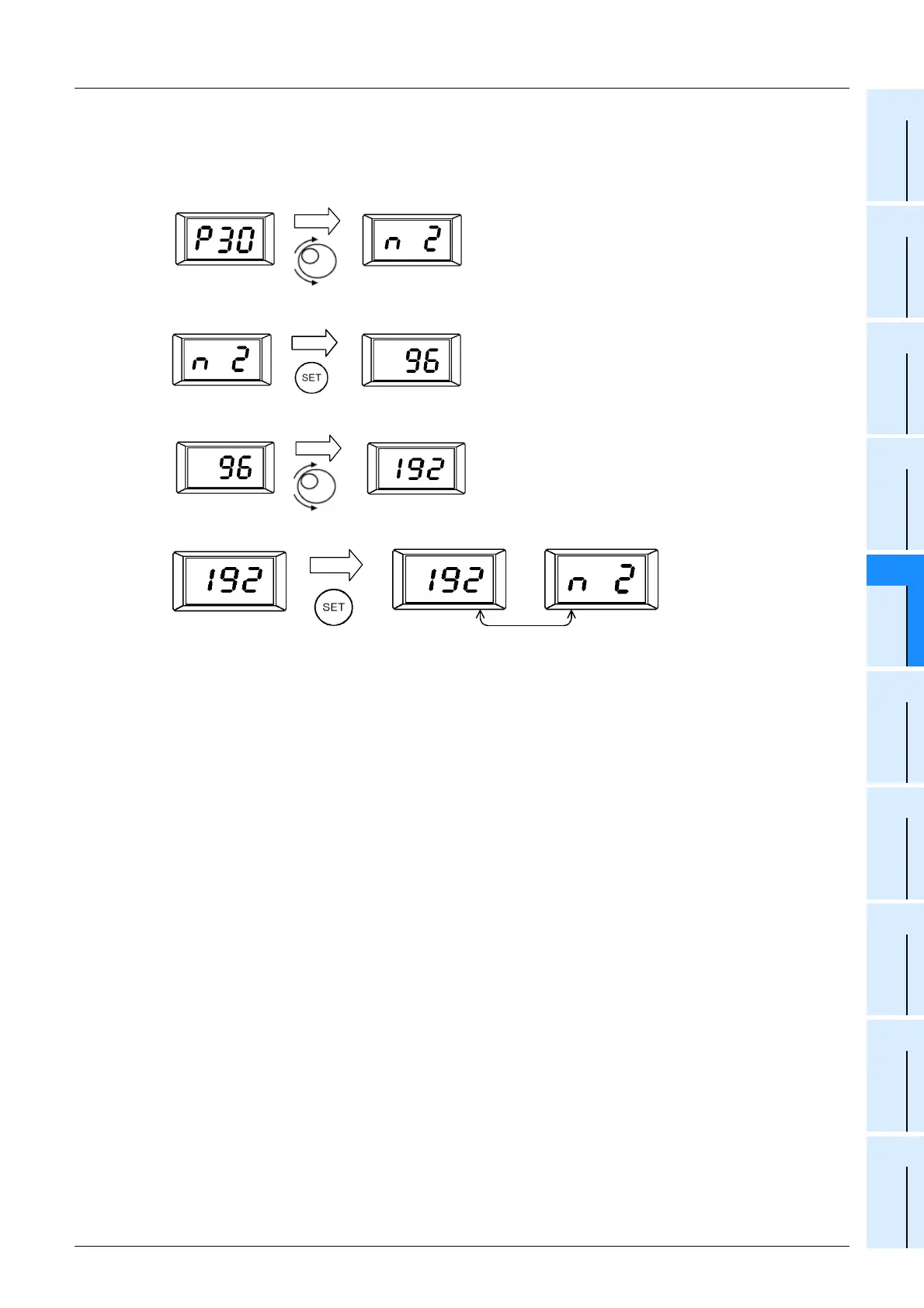

Turn the setting dial to display "n2".
Press the SET key to read the currently set value.
Turn the setting dial to change the set value to "192".
Press the SET key to set "192".
When the set value and parameter number are displayed alternately, the setting is completed.
5 Changing other parameters in the same way as step 4
→ For details on the parameters to be set, refer to Subsection 5.2.1.
The set value and parameter number are displayed alternately.
