b) Press the SET key to flash the middle digit. Set a numeric value using the UP and DOWN keys.
c) Press the SET key to flash the least significant digit. Set a numeric value using the UP and DOWN
keys.

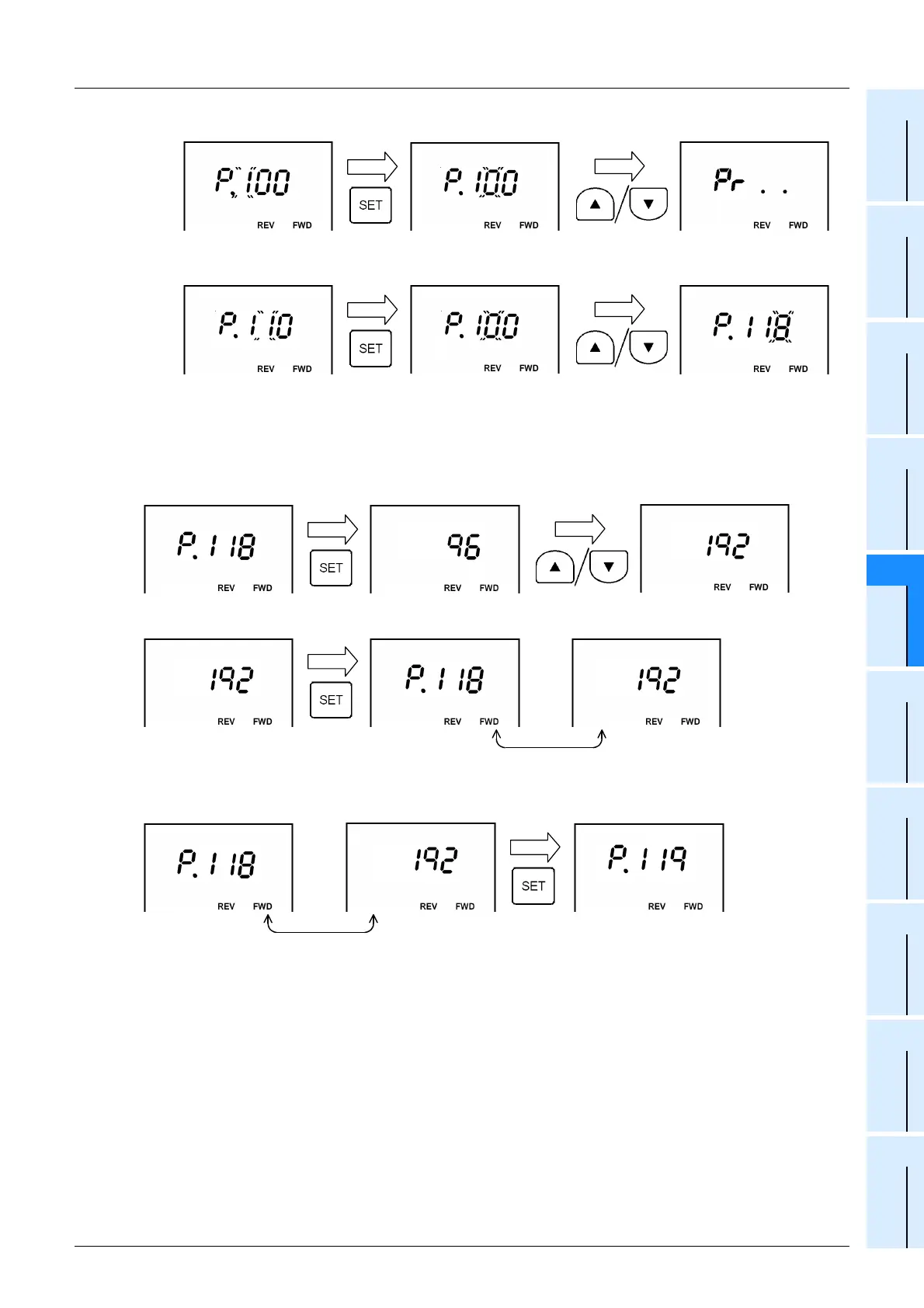

4 Setting the set value of Pr. 118 to "192"
("192" indicates the baud rate of 19200 bps.)
1. Press the SET key to read the currently set value. Change the set value using the UP and
DOWN keys.
2. Press and hold the SET key for 1.5 seconds to set "192".
3. Press the SET key to display the next parameter
5 Changing other parameters in the same way as step 3
→ For details on the parameters to be set, refer to Subsection 5.4.1.
The set value and parameter number are displayed alternately.
Press and hold it
for 1.5 sec.
The set value and parameter number are displayed alternately.
