E-50
FX Series PLC User's Manual - Data Communication Edition
Inverter Communication
6 Communication Setting in FX Programmable Controller
6.3 Communication Setting Using Parameter Method (FXGP/WIN)
2. When there are already parameter settings
The existing communication setting contents are displayed.
2 Adjusting serial setting (parameter)

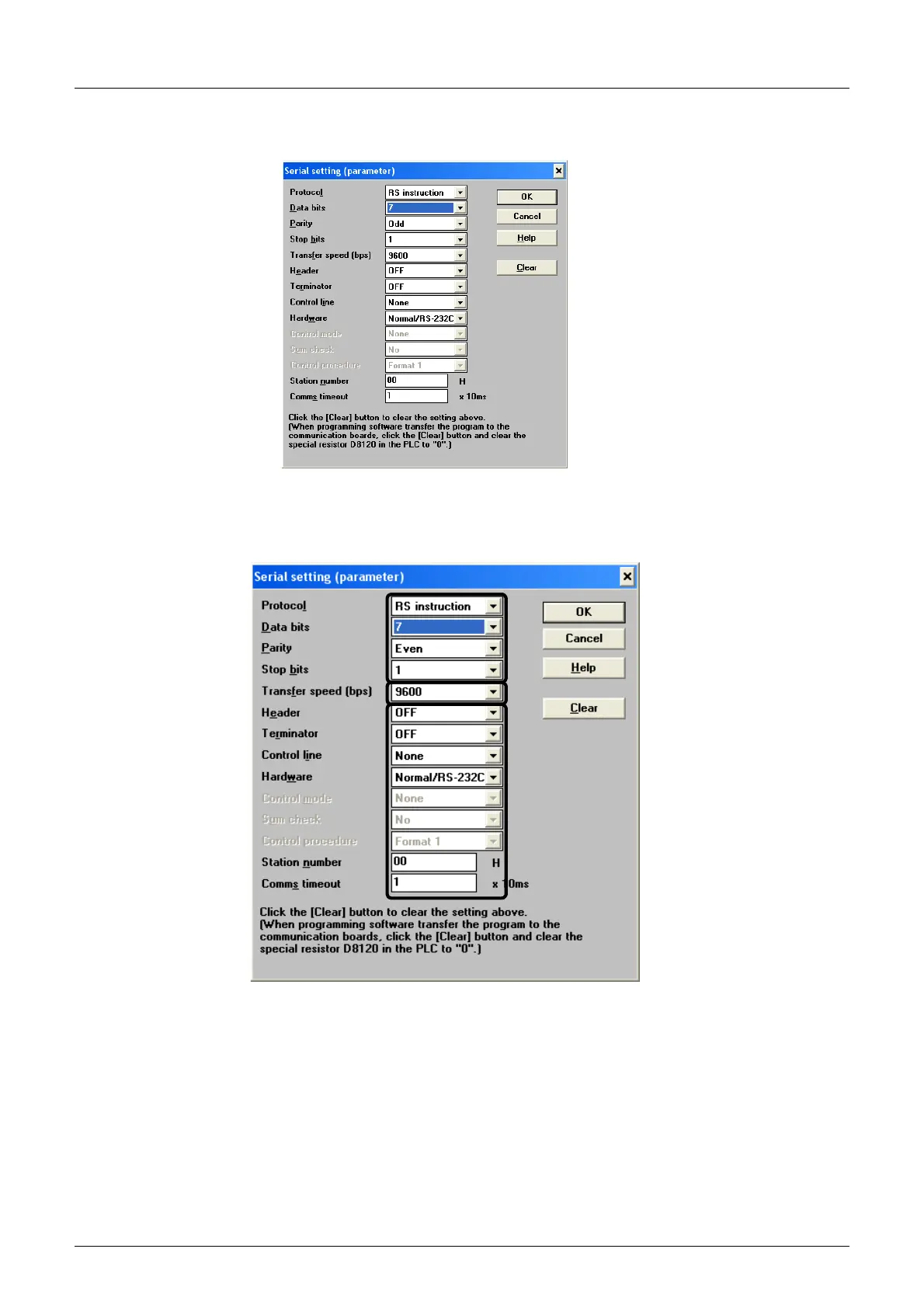

Execute the communication setting as shown below.
[1] Set "Protocol" to "RS instruction," "Data bits" to "7," "Parity" to "Even," and "Stop bits" to "1".
[2] Set "Transfer speed [bps]" to either "4800," "9600" or "19200," and make sure that the set value
here is the same as the set value in the inverters.
[3] Ignore these items.
3 Writing a sequence program (parameters) to the PLC
Select [PLC] - [Transfers] - [Write] from the toolbar, and click [OK].
[1]
[2]
[3]
To Next Page
