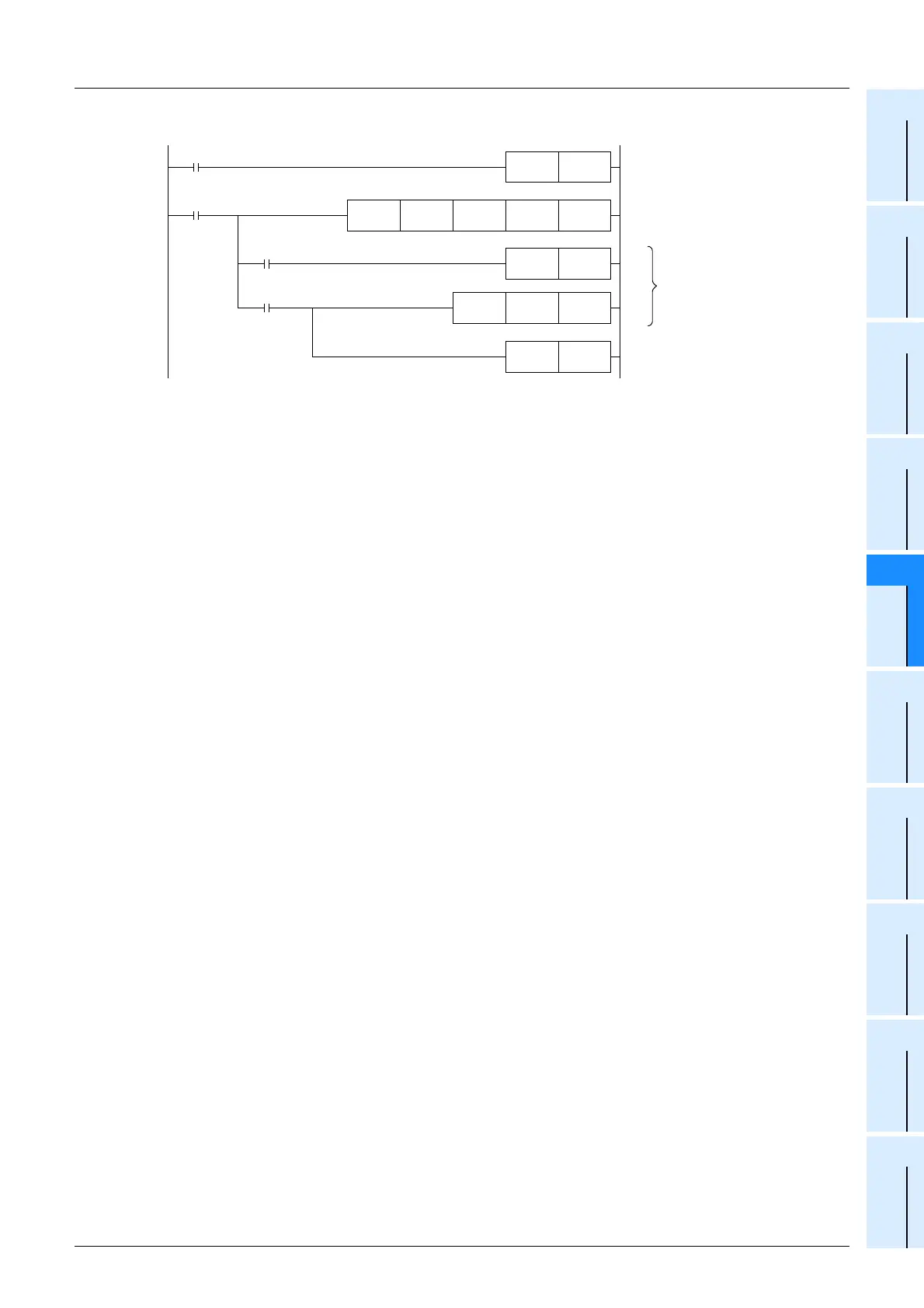

3. Program example
X000
SET M0
Start command
M8152
Communication error
D8152 D50
FNC 12
MOV
M50
SET M50
M8029
Instruction
execution
complete
D50
 K1
FNC277
IVWR
 
M0
RST M0
Instruction error is
checked
