Mitsubishi FX3U-232-BD User Manual

F-4
FX Series PLC User's Manual - Data Communication Edition
Non-Protocol Communication (RS/RS2 Instruction)
1 Outline

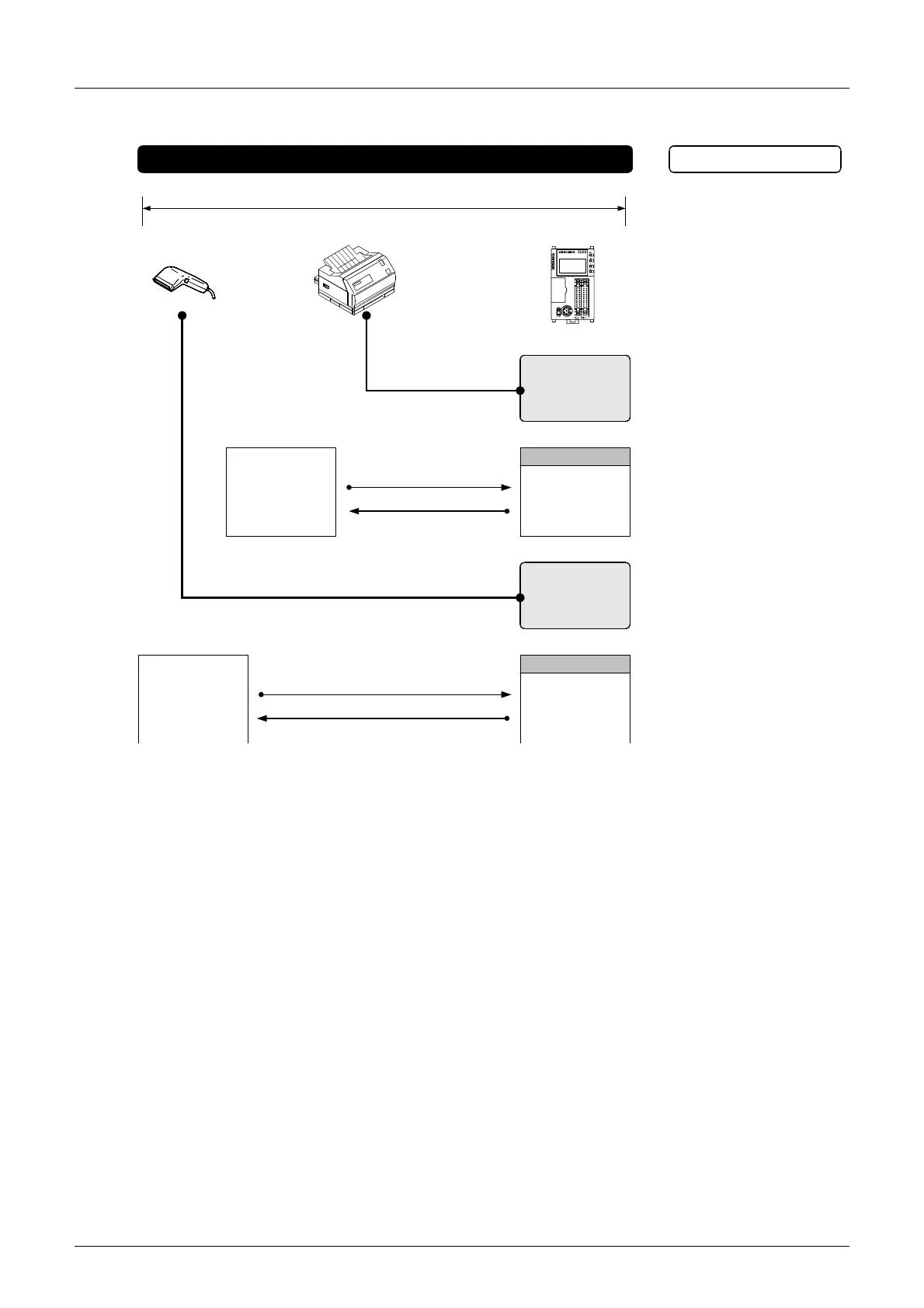

1.1 Outline of System
• RS2 instruction (FX3U and FX3UC)
.......
For selection, refer to
Chapter 3.
Communication
equipment operating
in accordance with
RS-232C or
RS-485
Bar code reader
FX
3U /FX 3UC PLC
RS-232C: 15 m (49' 2"), RS-485: 500 m (1640' 5")
[50 m (164' 0") when 485BD is used]
Total extension distance
For specifications,
refer to Chapter 2.
Printer
Word devices
4096 points data
.......
The amount of send data or
receive data can be 4096
points maximum.
For details, refer to Chapter 2.
.......
For wiring, refer to
Chapter 4.
+
Transfer direction
.......
To check applicable PLC
models, refer to Section 1.3.
.......
Printer
+
Communication
equipment operating
in accordance with
RS-232C or
RS-485
.......
For selection, refer to
Chapter 3.
.......
For wiring, refer to
Chapter 4.
Bar code reader
Word devices
4096 points data
.......
The amount of send data or
receive data can be 4096
points maximum.
For details, refer to Chapter 2.
Transfer direction
ch1
ch2
Important points and reference
chapter/section
System

Mitsubishi FX3U-232-BD Specifications

General

Type	Communication Module
Model	FX3U-232-BD
Category	Controller
Communication Protocol	RS-232
Communication Standard	EIA-232
Number of Channels	1
Maximum Transmission Distance	15 meters
Data Bits	7 or 8 bits
Stop Bits	1 or 2 bits
Parity	None, Even, Odd
Power Supply	5V DC (from PLC)
Current Consumption	50 mA
Compatible PLC Series	FX3U, FX3UC
Baud Rate	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
