F-59
FX Series PLC User's Manual - Data Communication Edition
Non-Protocol Communication (RS/RS2 Instruction)
8 Creating Programs (RS2 Instruction)
8.3 Operation of Control Line
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter
Communication
F
Non-Protocol
Communication
(RS/RS2 Instruction)
G
Non-Protocol
Communication
(FX
2N
-232IF)
H
Programming
Communication
I
Remote
Maintenance
Apx.
Discontinued
models

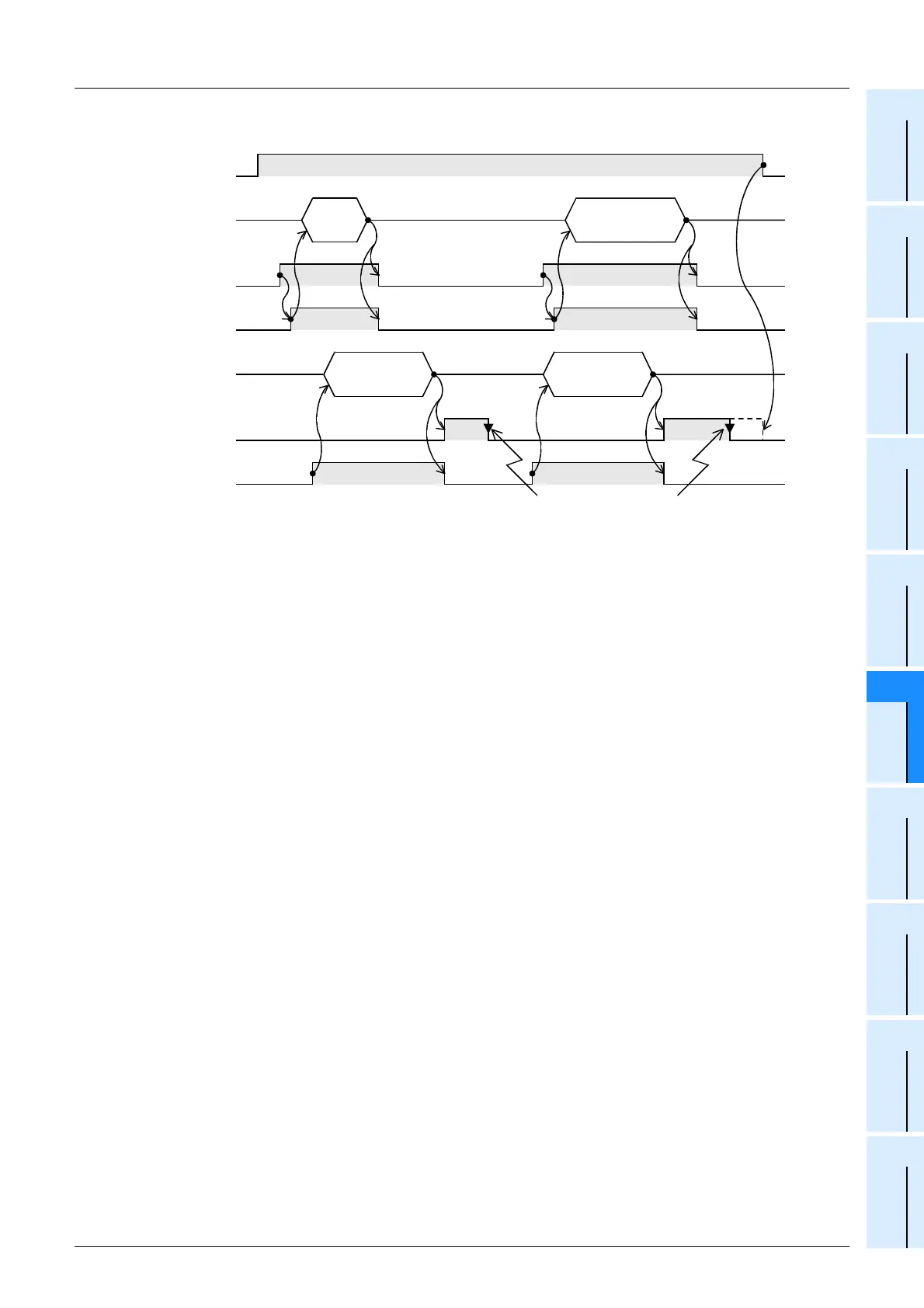

3. When the control line is in the modem mode
Reset it in a sequence program.
While it remains ON, the PLC cannot receive the next set of data.
OFF
OFF ON
ON
OFF ON
ON
OFF ON
OFF ON
Message
1
Message 4
Message 2 Message 3
RS2
instruction
driving
SD (TXD)
Send data
ER (DTR)
Receiving
complete
M8403
RD (RXD)
Receive data
Sending
request
M8402
DR (DSR)
