A-30
FX Series PLC User's Manual - Data Communication Edition
Common Items
2 Communication Types and Communication Equipment

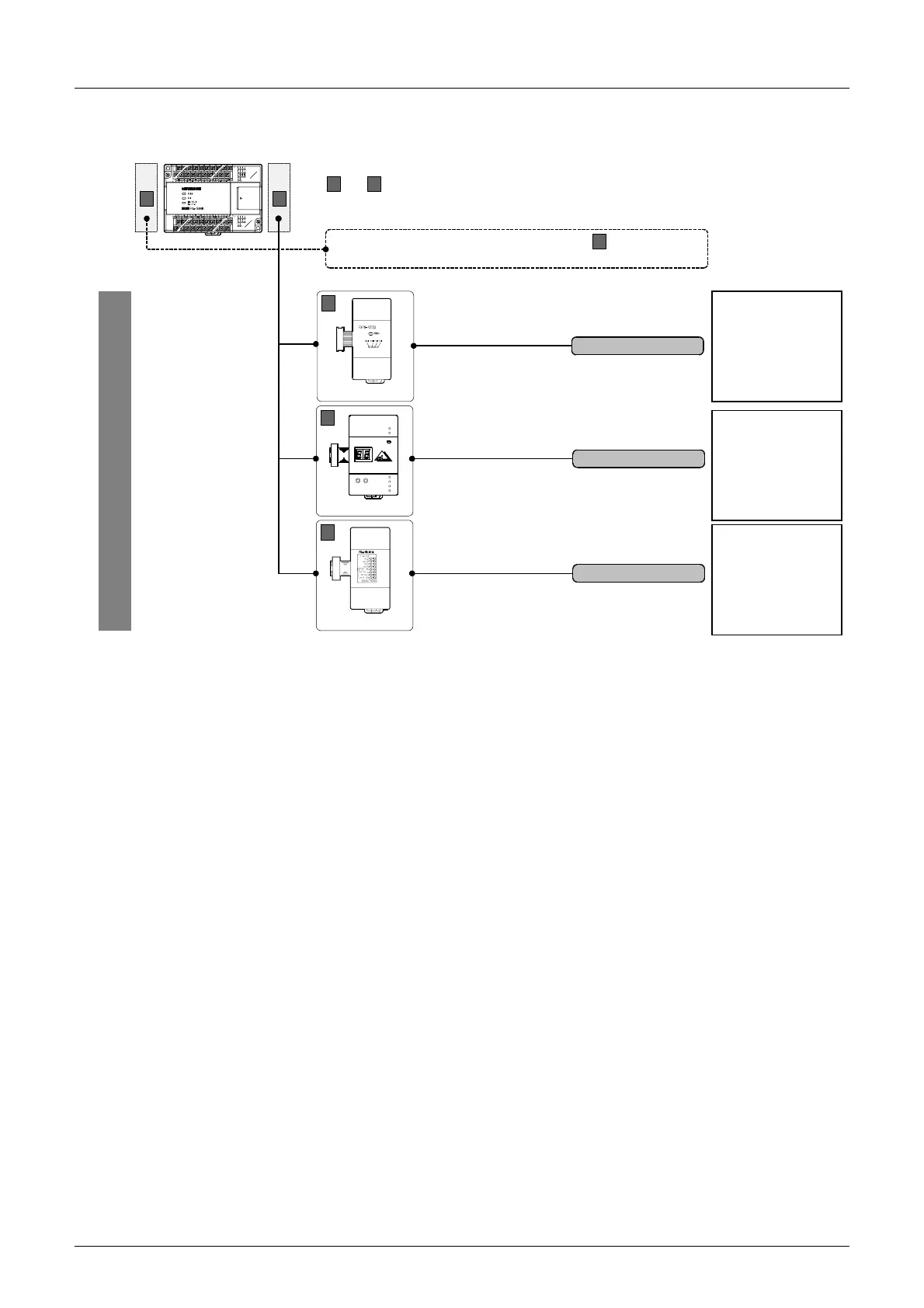

2.3 Combination of Communication Equipment (Block Diagram)
Limitation in the number of connectable units
Connected special function units/blocks operate using the 24V DC or 5V DC power supply of the PLC.
Therefore, the total current consumption larger than the plc current capacity reduces the number of
connectable units.
→ For details, refer to the respective FX PLC manual.
For special adapters with communication type , refer to the
previous page.
A
C
FX
0N
Series
A
Up to 4 units can be selected.
CC-Link
For remote device station
FX
2N
-32CCL
C
FX
2N
-16LNK-M
C
M3 terminal block
M3 terminal block
MELSEC-I/O LINK
and indicate the mounting position.
A C
(For the mounting procedure, refer to the respective communication equipment manual.)


FX
2N
-32ASI-M
C
FX
2N
-32ASI-M
POWE
R
U
ASI
ASI
ACT IVE
PRJ
MODE
PRG
ENABLE
FROM/
TO
CONFIG
ERR
MOD
E
SE
T
ADDRESS/
ERROR
M3 terminal block
AS-i system

To Next Page
