FX Series PLC User's Manual - Data Communication Edition
Remote Maintenance
7 Connecting Line
7.2 Line Connection Procedure
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter
Communication
F
Non-Protocol
Communication
(RS/RS2 Instruction)
G
Non-Protocol
Communication
(FX
2N
-232IF)
H
Programming
Communication
I
Remote
Maintenance
Apx.
Discontinued
models
3 Executing manual connection

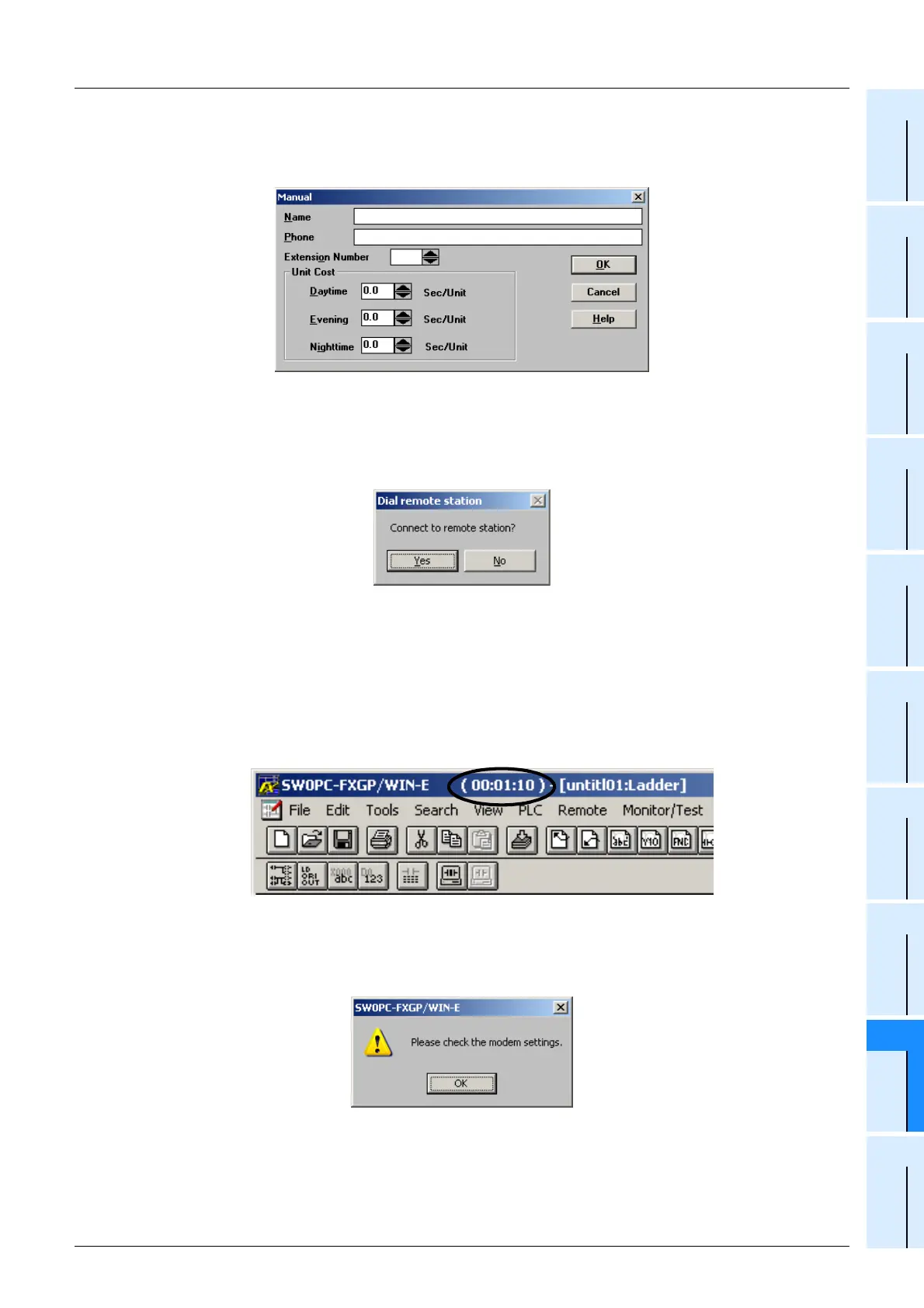

Click the [Manual] button to display the following dialog box.
Set "Name" and "Phone", and click the [OK] button.
4 Checking the line connection status
When the [OK] button is clicked, the following dialog box appears.
Click the [Yes] button to display the message box "Executing!" and make a call from the modem
connected to the personal computer.
5 Checking the line connection status
1. When the line is connected
When connection is completed, the message box "Executing!" is closed, and the line connection time is
displayed on the title bar as shown below:
→ Proceed to step 6.
2. When the line cannot be connected
When the line cannot be connected, the message box "Executing!" is closed, and the following dialog box
appears.
Click the [OK] button to close the dialog box.
Check the telephone number and AT command, and then execute connection again.
→ If line connection is disabled, refer to "Chapter 8. Troubleshooting".
