Scalable Controller Area Network (S12MSCANV3)
MC9S12G Family Reference Manual Rev.1.27
612 NXP Semiconductors
For microcontrollers without a clock and reset generator (CRG), CANCLK is driven from the crystal
oscillator (oscillator clock).
A programmable prescaler generates the time quanta (Tq) clock from CANCLK. A time quantum is the
atomic unit of time handled by the MSCAN.
Eqn. 18-2
A bit time is subdivided into three segments as described in the Bosch CAN 2.0A/B specification. (see
Figure 18-44):
• SYNC_SEG: This segment has a fixed length of one time quantum. Signal edges are expected to
happen within this section.
• Time Segment 1: This segment includes the PROP_SEG and the PHASE_SEG1 of the CAN
standard. It can be programmed by setting the parameter TSEG1 to consist of 4 to 16 time quanta.
• Time Segment 2: This segment represents the PHASE_SEG2 of the CAN standard. It can be
programmed by setting the TSEG2 parameter to be 2 to 8 time quanta long.
Eqn. 18-3

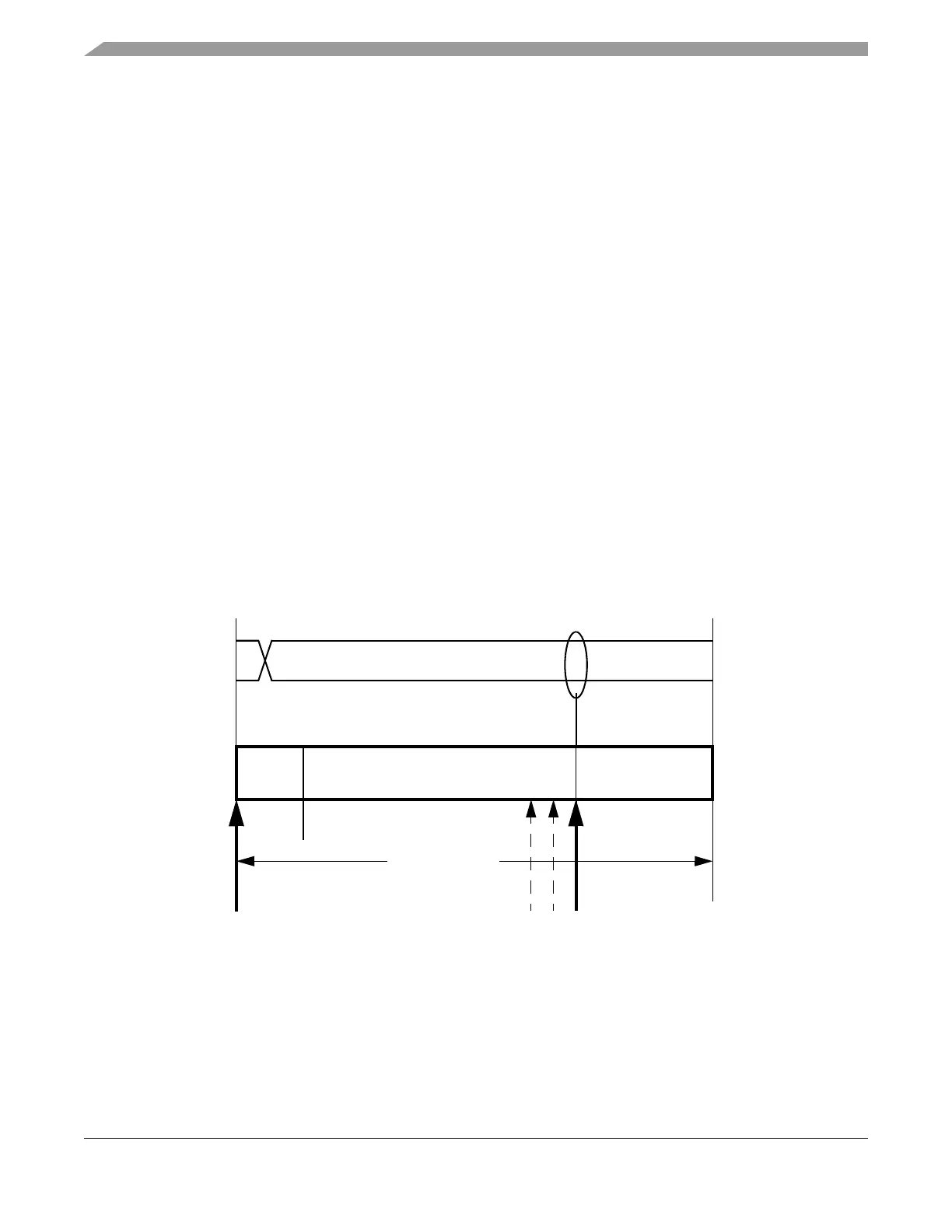

Figure 18-44. Segments within the Bit Time
Tq
f
CANCLK
Prescaler valueÞ
--------------------------------------------------------=
Bit Rate
f
Tq
number of Time QuantaÞÞ Þ
---------------------------------------------------------------------------------------------=Þ
SYNC_SEG
Time Segment 1 Time Segment 2
1 4 ... 16 2 ... 8
8 ... 25 Time Quanta
= 1 Bit Time
NRZ Signal
Sample Point
(single or triple sampling)
(PROP_SEG + PHASE_SEG1) (PHASE_SEG2)
Transmit Point
