REXROTH EFC 3610 Series User Manual

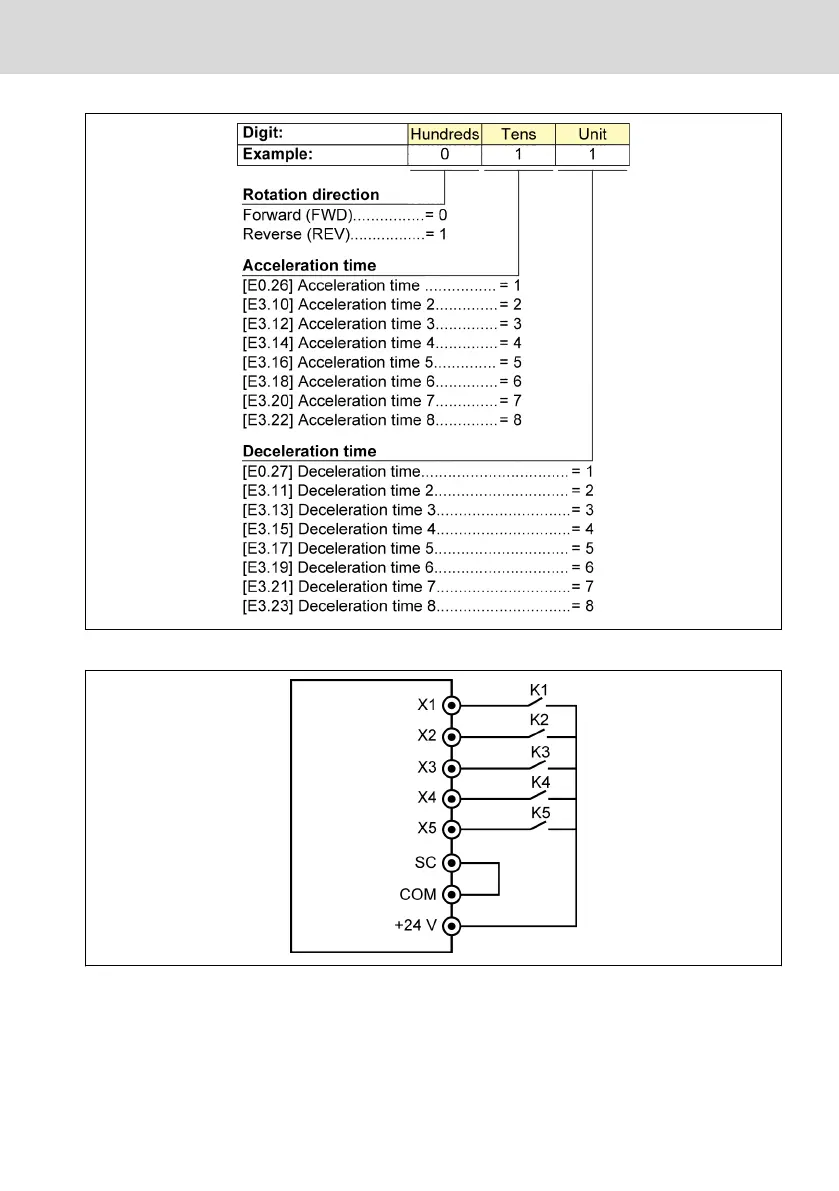

Fig. 12-15: Bit definition of rotation direction, acceleration and deceleration time
Fig. 12-16: Multi-speed control via digital inputs
Case 1: 8 or less stages
Set [E1.15] = 0 or 1 first.
Connect switch K1 to X1, and set [E1.00] = '1: Multi-speed control input 1'.
Connect switch K2 to X2, and set [E1.01] = '2: Multi-speed control input 2'.
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
139/389
