K4 K3 K2 K1 Setting frequency Acc. / Dec. time
Closed Closed Closed Open [E3.53] [E3.20] / [E3.21]
Closed Closed Closed Closed [E3.54] [E3.22] / [E3.23]
Tab. 12-6: Multi-speed settings for 9 or more stages
K5 Status
Inactive Stop
Active Run
Tab. 12-7: Run / Stop control via K5
Direction is controlled by parameters, see fig. 12-15 "Bit definition
of rotation direction, acceleration and deceleration time" on page
139.
f
out
Output frequency
t Time
ON Digital input switched on

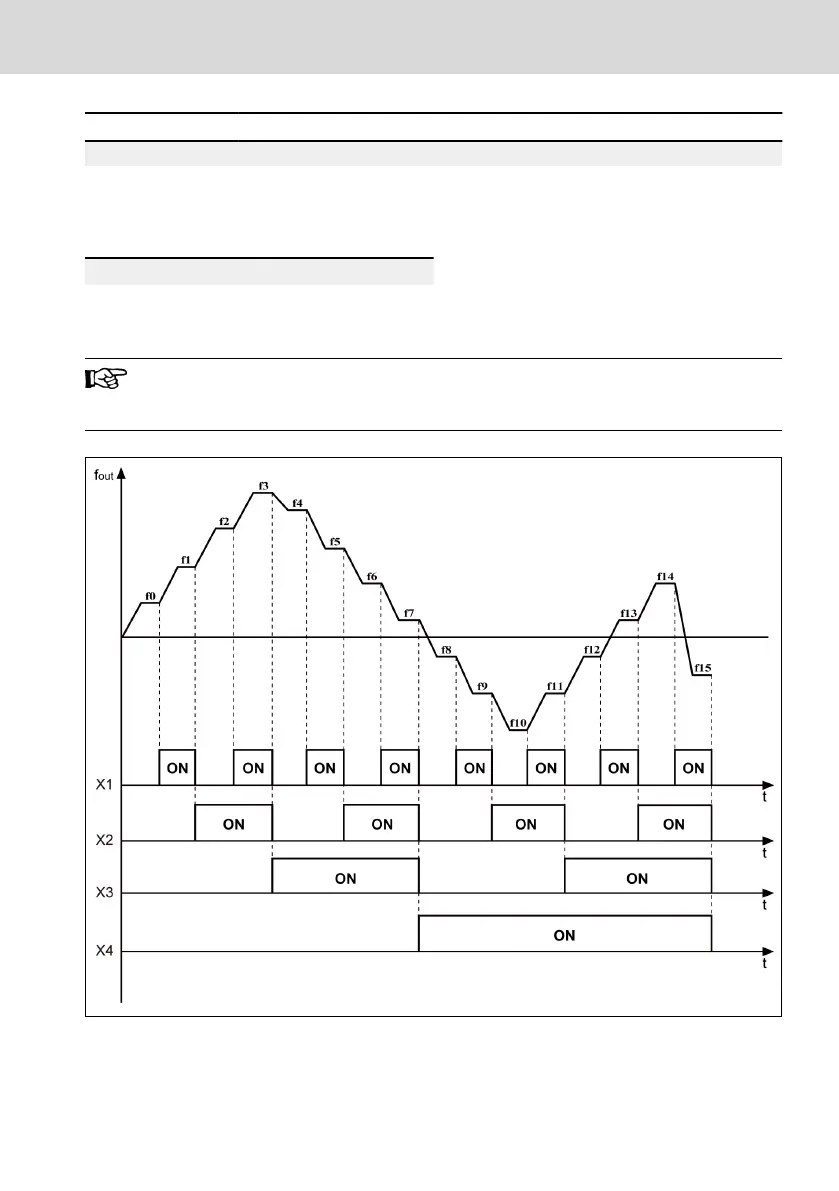

Fig. 12-17: Multi-speed stage transition
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
141/389
