2000/3000 SHEET FINISHERS (B700/B701) 15 February 2006
1-78
Docking the Finisher
7. If you are not installing the Cover Interposer B704, peel the strip from the
sponge cushion [A] and attach it to the finisher then go to the next step.
If you are installing the Cover Interposer B704:
• Do not attach the sponge cushion to the finisher. It must be attached to the
cover interposer.
• Do not attach the grounding plate [B] to the finisher. It must be attached to
the cover interposer.
• Install the interposer now. The cover interposer must be installed before you
dock the finisher to the copier.
8. Use a short screwdriver to attach the grounding plate [B] (" x 2, M3 x 6).

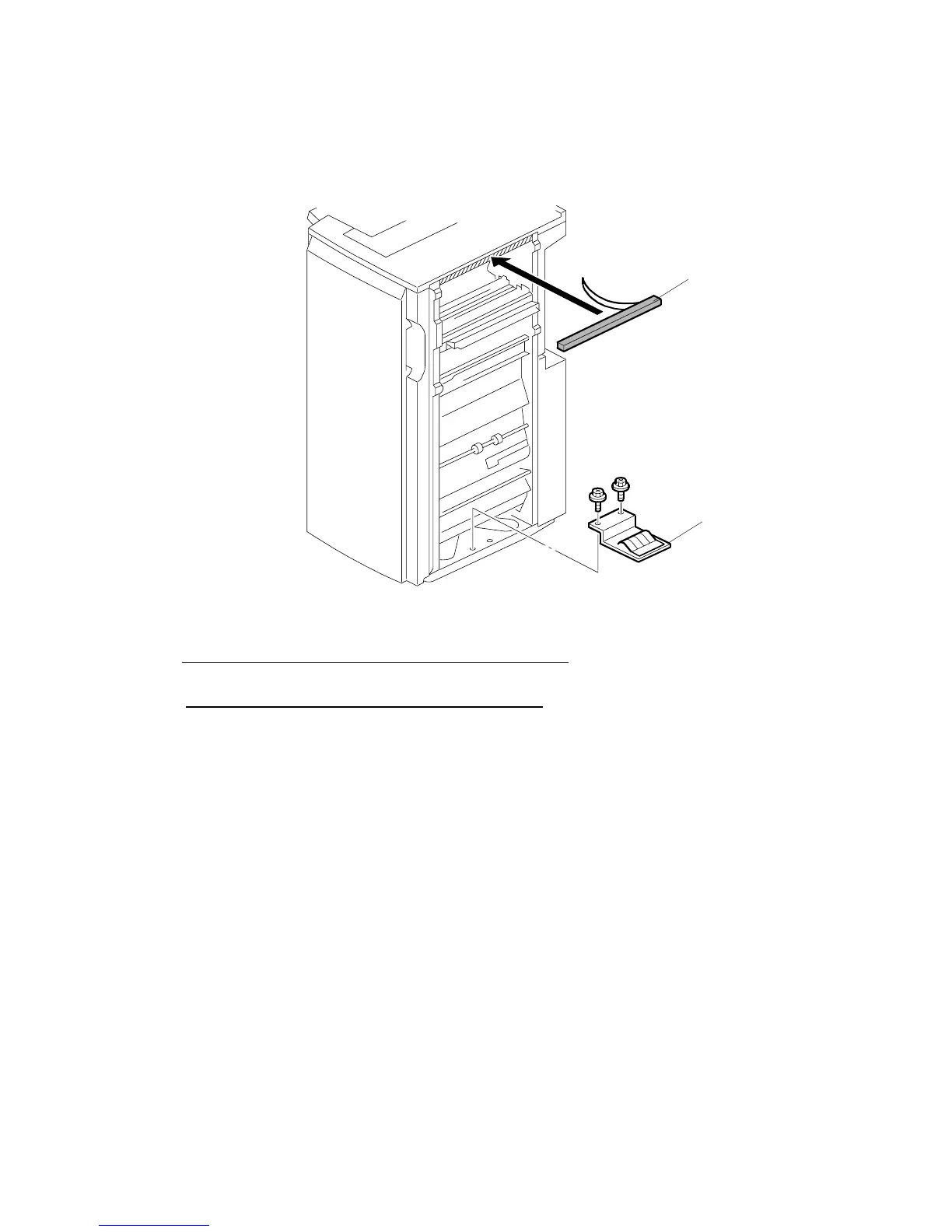

B700I106.WMF
[A]
[B]
