Install the Key Card Bracket and Assembled Key Counter
!WARNING!
Always turn the machine off and disconnect the machine power cord
before you do this procedure.

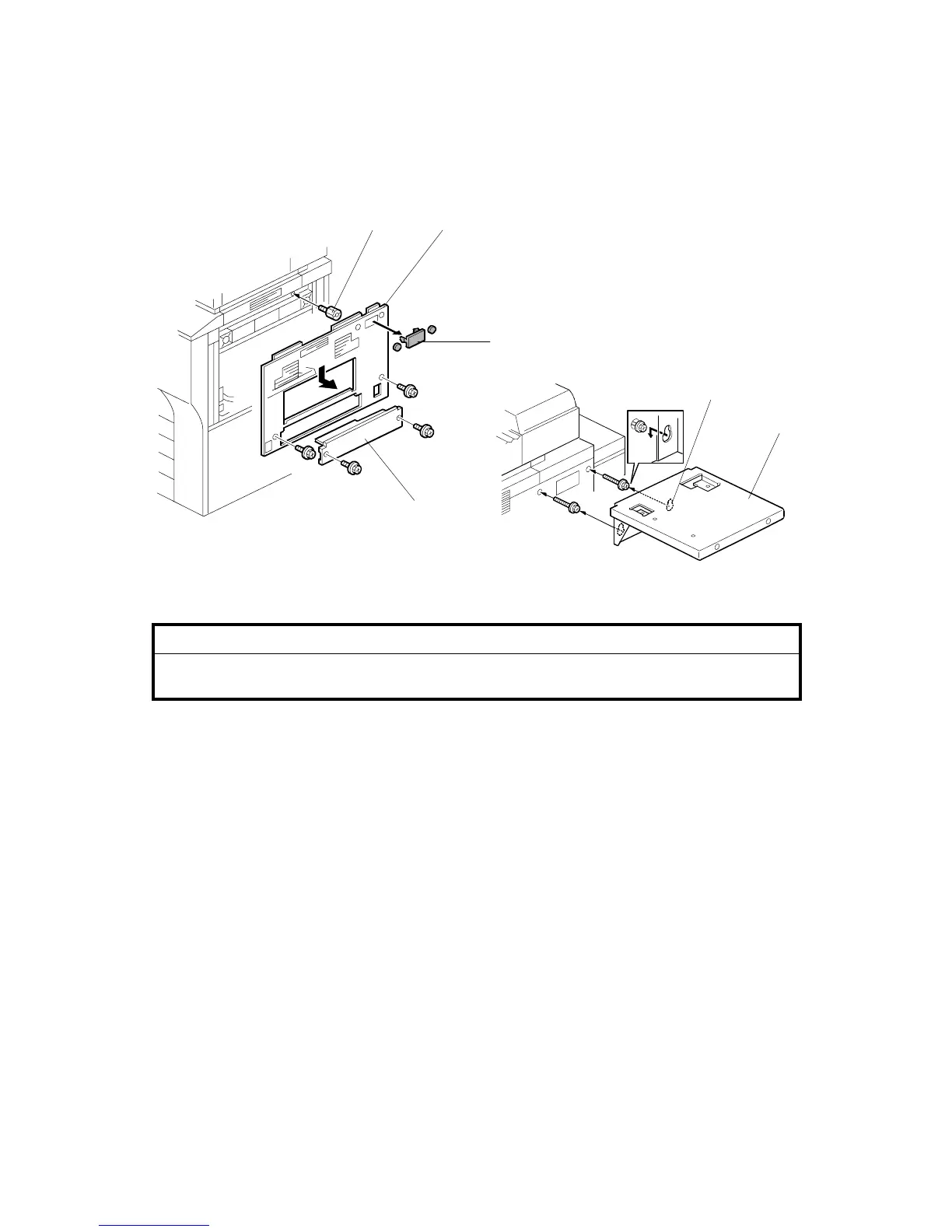

1. Remove the cover [A] (" x2).
2. Remove the right upper cover [B] (" x2).
3. Remove the three caps [C].
4. Attach the stud [D].
5. Put the keyholes [E] of the key card table [F] over the heads of the shoulder
screws, as shown above. Then tighten the screws to attach the table (M4 x 14,
" x2).
B498I002.WMFMF
B498I003.WMFMF
[A]
[B]
[C]
[D]
[F]
[E]
