Ricoh MT-C1 - Attaching the Corner Plates for the B706

COVER INTERPOSER TRAY (B704) 15 February 2006
1-98
Attaching the Corner Plates for the B706
Important!: The corner plates are installed on the B706 only.
Right Rear Corner Plate (B706 only)

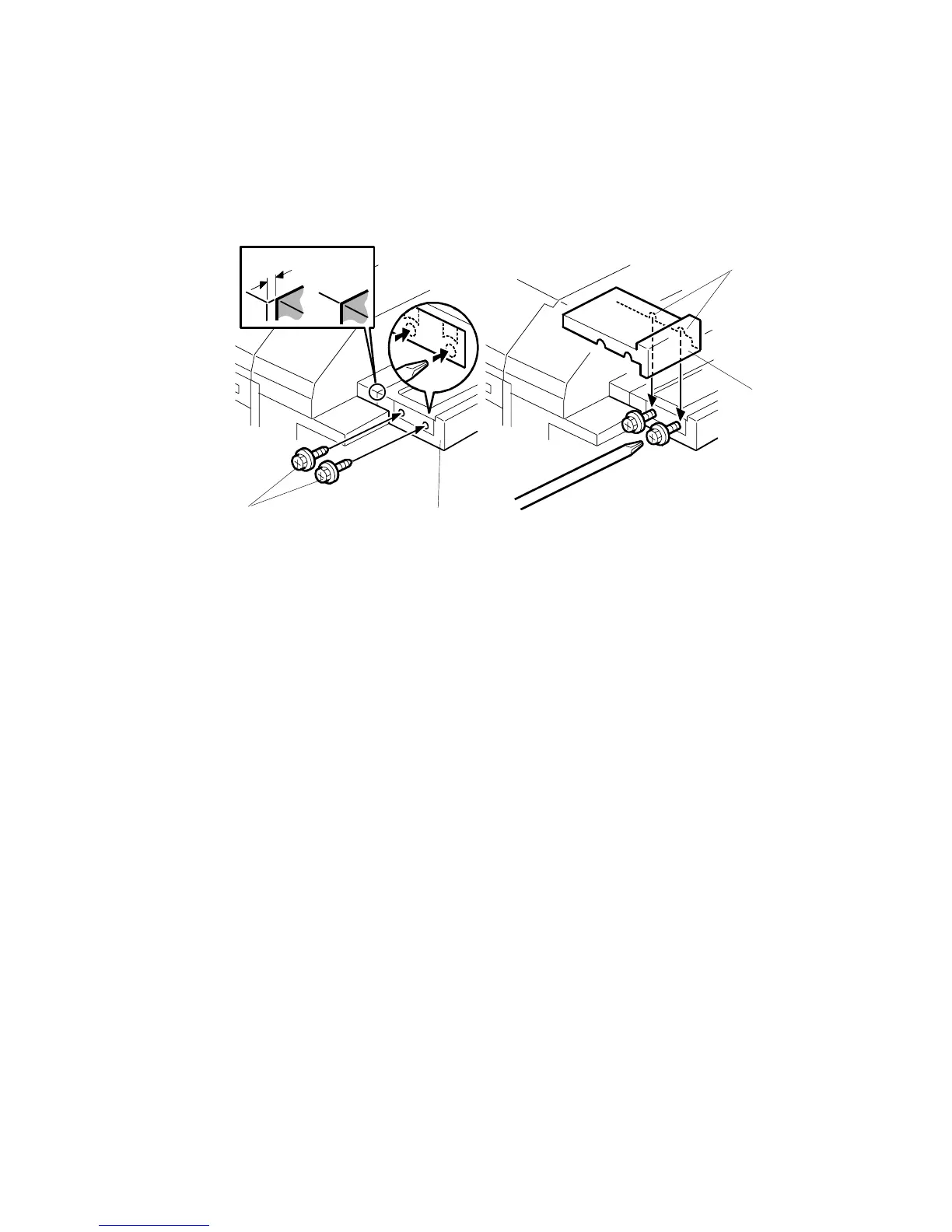

1. Temporarily attach the screws [A] (with about two turns) to the right end of the
finisher extension table [B] (" x 2, tapping M4 x 8)
NOTE: The holes are not visible because they are covered with tape. Just
punch the screws through the holes.
2. Align the cutouts [C] of the right rear corner plate [D] with the screws and attach
the plate.
3. With a long screw driver inserted through the cutouts in the right rear corner
plate [D], tighten the screws to fasten the right rear corner plate to the table
extension [B].
