6.11.5 PAPER NEAR-END AND PAPER END – TRAYS 2 AND 3
The machine detects paper near end by counting the number of pulses the motor
makes when lifting the bottom plate.

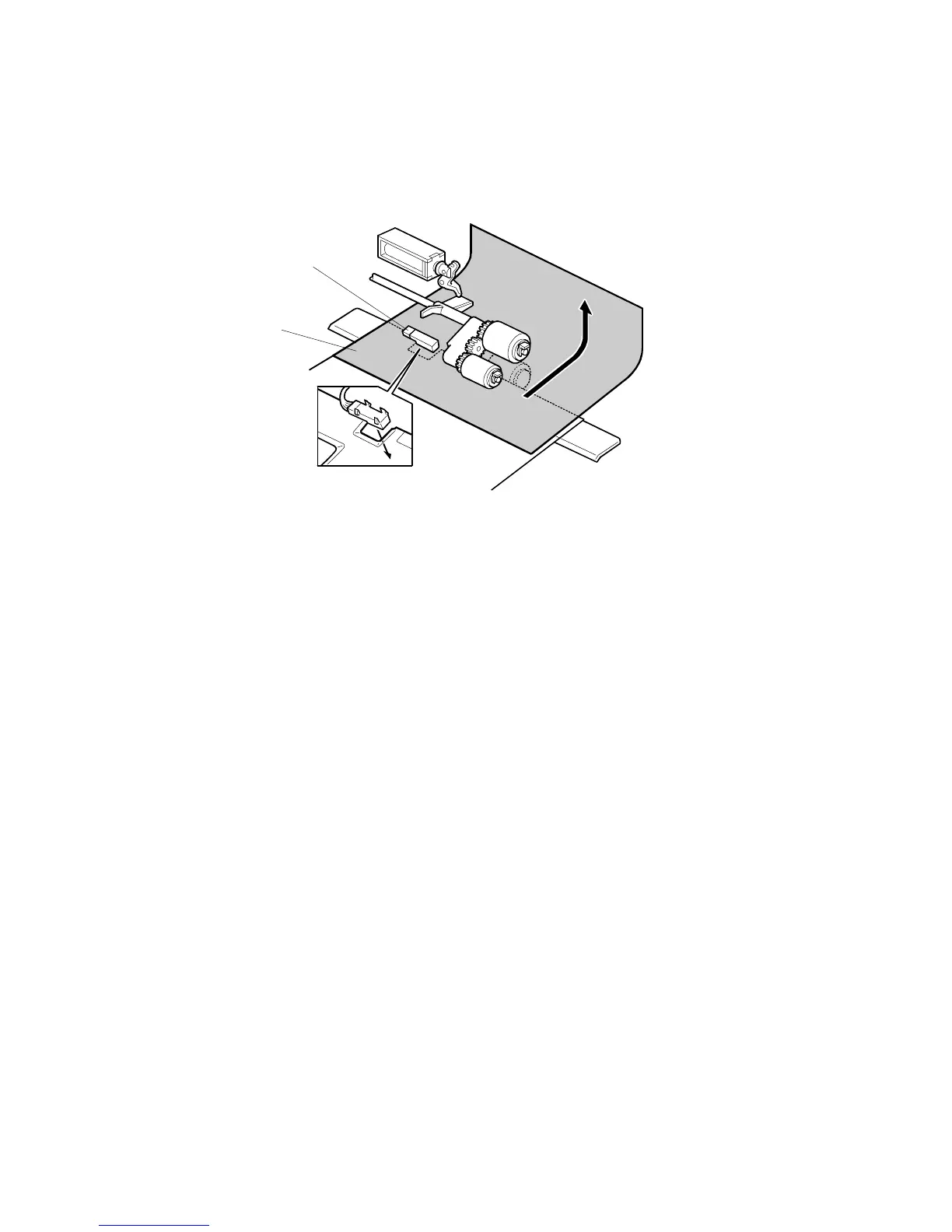

The paper end sensor [A] receives light reflected from the paper below [B] until the
last sheet has been fed. Then, paper end is detected.
B246D955.WMFF
[A]
[B]
