Installation
1.24.10 REMOTE COMMUNICATION GATE TYPE CM1 (B818)
Accessories
Description Q’ty
1. Cumin-M B818.......................................................................1
Installation
Only one PCI slot (B2) is available for one of these options:
• Centronics 1284
• IEEE 1394 (FireWire)
• IEEE 801.11b (Wireless LAN)
• Bluetooth Interface Unit B826
• Cumin-M B818
Important
• If another board is installed in B2, you must remove it before installing this card.
1. Switch the machine off.
2. Remove the cover [A] of Slot B2
(! x 2)
3. Attach the connector plate [B] (! x 1).
4. Insert the Cumin-M board [C] into Slot
B2 and fasten it with the screws
(! x 1).
5. Enter the SP mode and note the settings of the following SP codes:
SP5816 Remote Service Note Setting
150 Selection Country
153 Selection: Dial/Push
154 Outside Line/Outgoing Number
161 Telephone Number

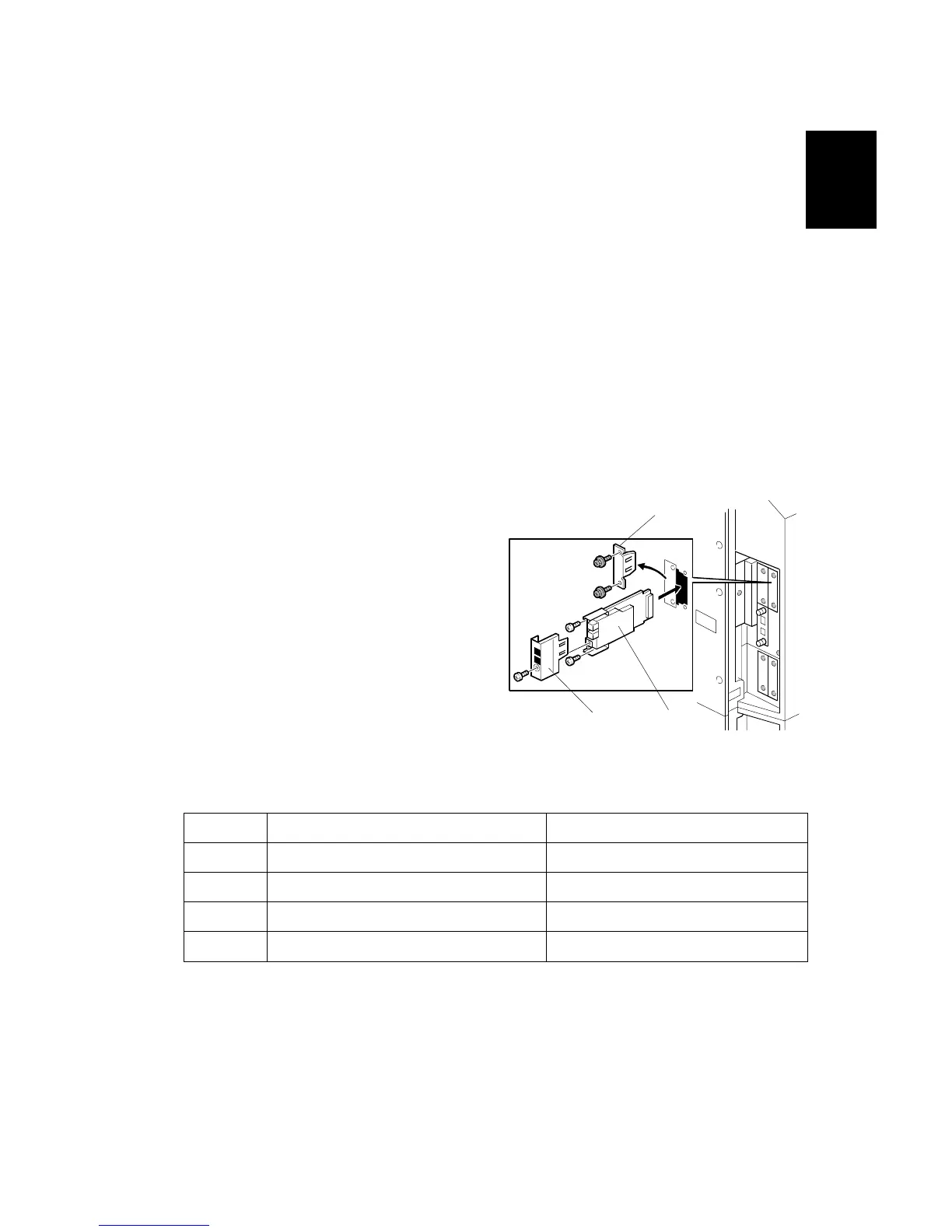

B818I101.WMF
[A]
[B]
[C]
