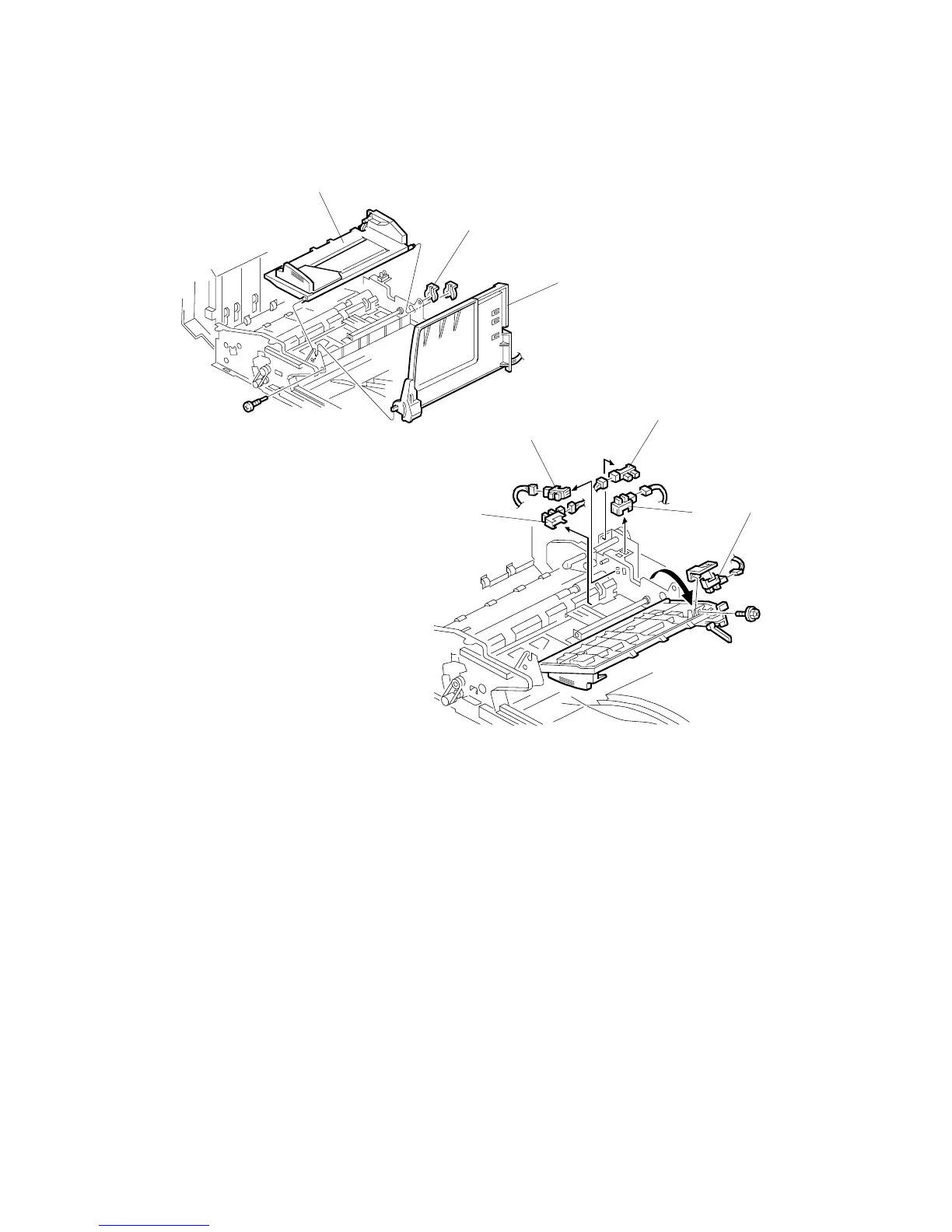

3.13.10 OTHER ADF SENSORS

Open the feed cover.

Front/rear covers ( x 4) (☛ 3.13.1)

[A]: C-Clamps ( x 2)

[B]: Original tray ( x 1)

[C]: Bottom plate ( x 1)

[D]: Original set sensor ( x 1)

[E]: Feed cover sensor ( x 1)

[F]: Bottom plate HP sensor ( x 1)

[G]: Pick-up roller HP sensor ( ( x 1)

[H]: Bottom plate position sensor ( x 1)

B140R878.WMF

B140R879.WMF

[A]

[C]

[B]

[D]

[E]

[F]

[G]

[H]
