Ricoh MT-C1 - Tray Side-To-Side Positioning

15 February 2006 PAPER FEED
6-105
Detailed
Descriptions
Tray Side-to-side Positioning

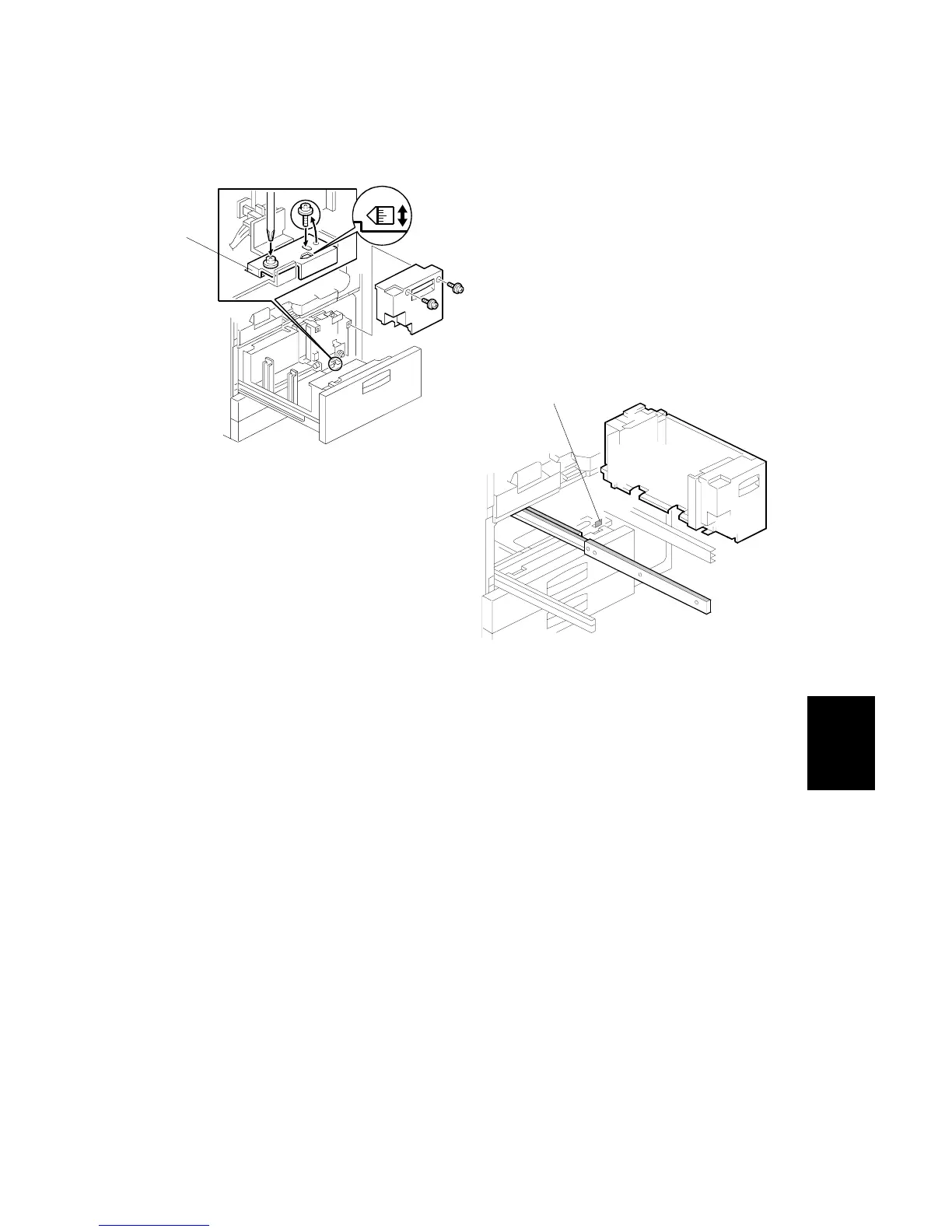

When the feed tray is set in the paper feed unit, the side-to-side positioning plate
[A] presses the feed tray against the stopper [B]. By moving the positioning plate,
the tray position can be changed to adjust the side-to-side registration.
B246D968.WMF
B246D969.WMFF
[A]
[B]
