PCBS AND HDD
15 February 2006
3-126
B246 Series M
otherboard
•
Disconnect AD
F cable
1. Remov
e:
•
Rear upper cover (
x2
) (
☛
3.3.5)
•
Re
ar lower cover (
x2
) (
☛
3.3.5)
•
Controller box cov
er (
x13)
•
Controller board (
☛
See pag
e 3-120)

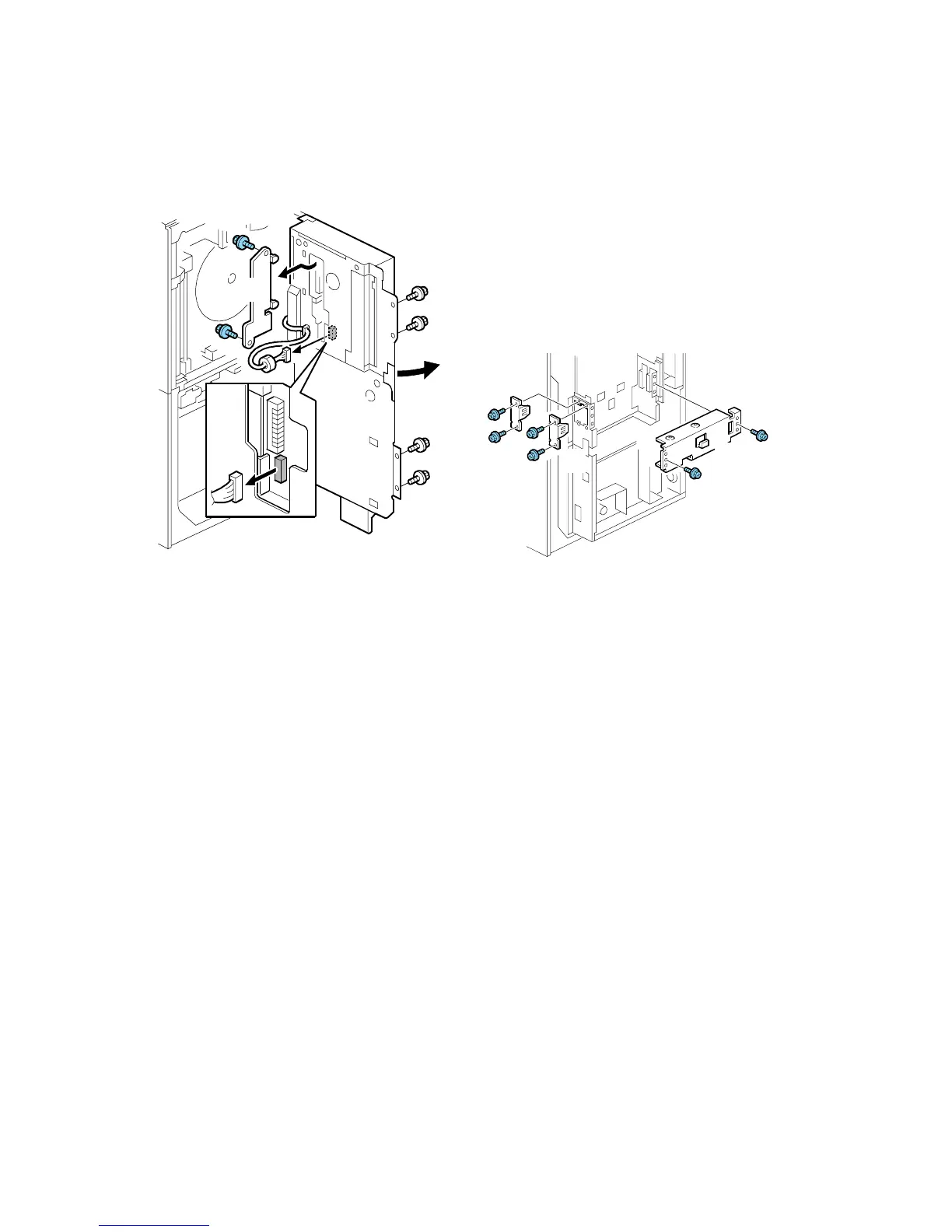

2. Remove
screws
to
and swing open the contr
oller box (
x4).
3.
Remove the left IPU connector
shield
(
x2)
.
4. Disconnect
connectors
and
(
x2
).
5. Remov
e
br
ackets
,
,
(
x2 ea.).
B246R105A.WMF
B246R106A.WMF
354
356
