3.9.14 FUSING EXIT AND EXIT UNIT ENTRANCE SENSORS
Open the front door and pull out the exit/inverter unit.

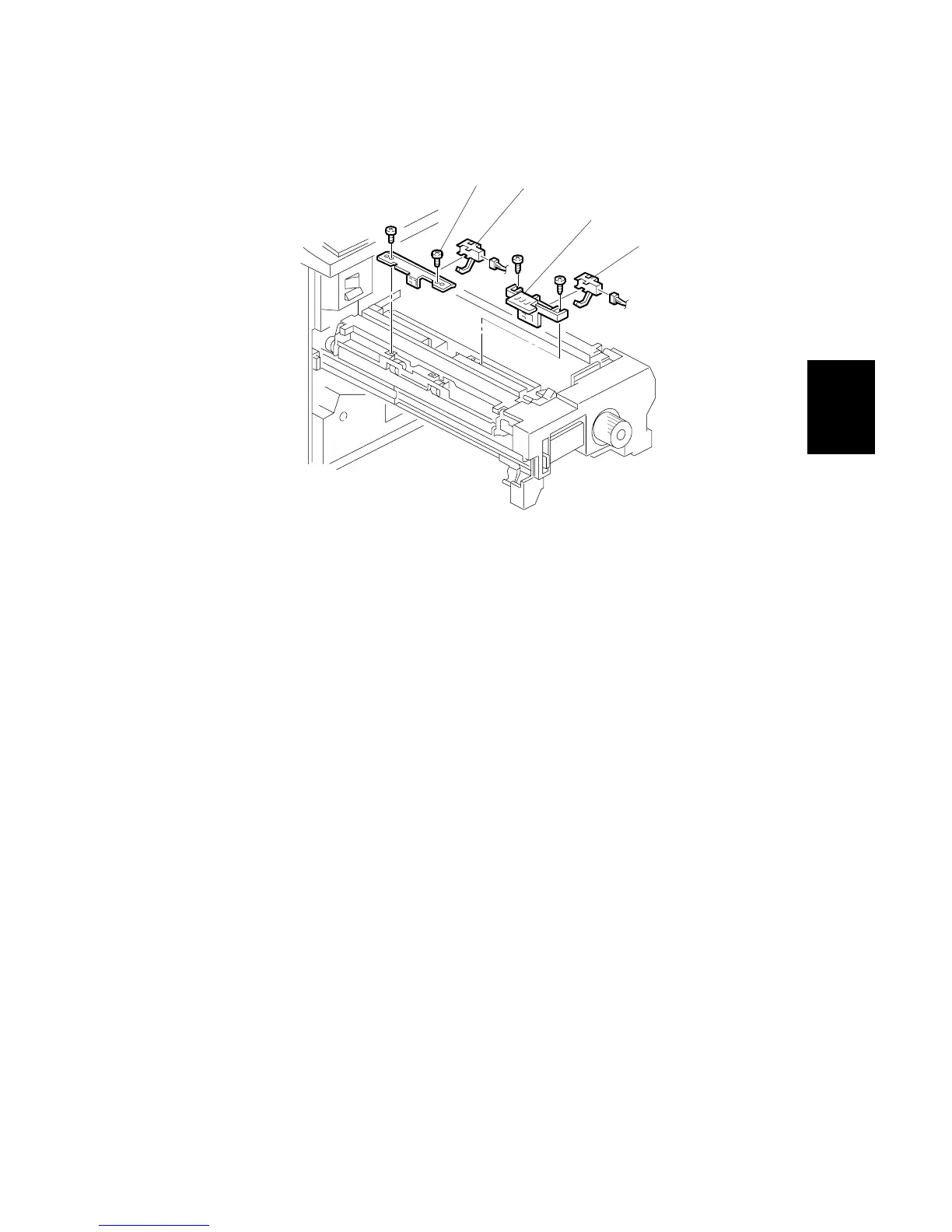

[A]: Fusing exit sensor bracket ( x 2)
[B]: Fusing exit sensor ( x 1)
[C]: Exit unit entrance sensor bracket ( x 2)
[D]: Exit unit entrance sensor ( x 1)
B246R1035.WMF
[A]
[B]
[C]
[D]
