Installation
1.10 3000 SHEET FINISHER (B478/B706)
1.10.1 ACCESSORY CHECK

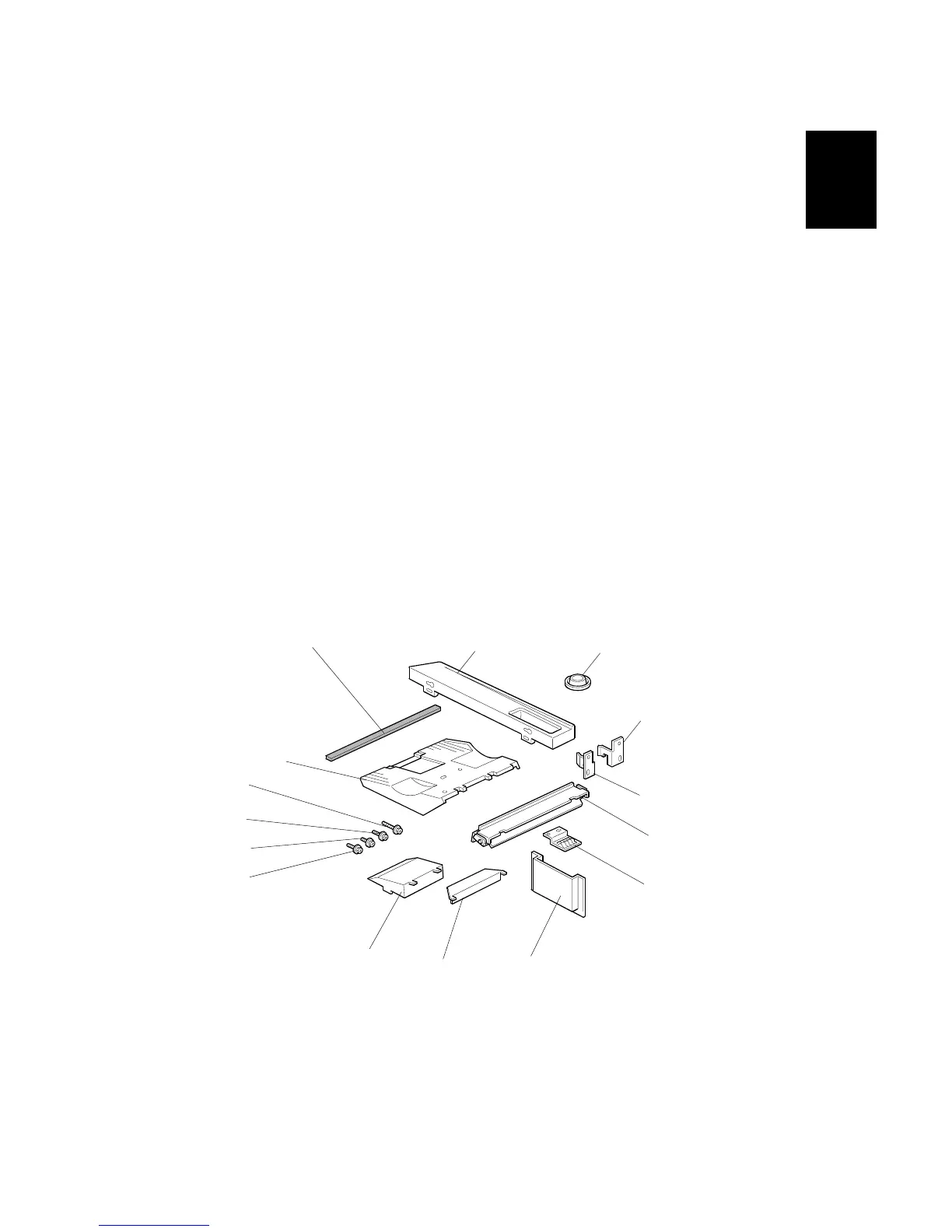

Check the accessories and their quantities against this list:
Description Q’ty
1. Cushion.................................................................................. 1
2. Table Extension ..................................................................... 1
3. Leveling Shoes ...................................................................... 1
4. Rear Joint Bracket ................................................................. 1
5. Front Joint Bracket................................................................. 1
6. Entrance Guide Plate............................................................. 1
7. Grounding Plate ..................................................................... 1
8. Auxiliary Tray Holder.............................................................. 2
9. Auxiliary Tray - Proof ............................................................. 2
10. Auxiliary Tray - Shift............................................................... 2
11. Tapping Screws - M4 x 8 ....................................................... 2
12. Tapping Screws - M3 x 6 ....................................................... 4
13. Tapping Screws - M3 x 8 ....................................................... 4
14. Phillips Screws w/washer - M4 x 14....................................... 4
15. Shift Tray................................................................................ 4
16. Installation Procedure ............................................................ 1
