Ricoh MT-C1 - Accessory Check; Installation; Bluetooth Interface Unit (G377)

MFP OPTIONS: B140/B246 SERIES 15 February 2006
1-168
1.23.8 BLUETOOTH INTERFACE UNIT (G377)
ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description Q’ty
1. Bluetooth Board..................................................................... 1
2. Bluetooth Card ...................................................................... 1
3. Antenna Cap ......................................................................... 2
4. Velcro pads .......................................................................... 2
Installation
You can only install one of these cards, because only one PCI slot (B1) is available
for these options:
• USB 2.0
• IEEE 802.11b (Wireless LAN)
• IEEE 1394 (FireWire)
• Bluetooth Interface Unit G377
If a different card is installed in B1, you must remove it before you install the
Bluetooth interface unit.

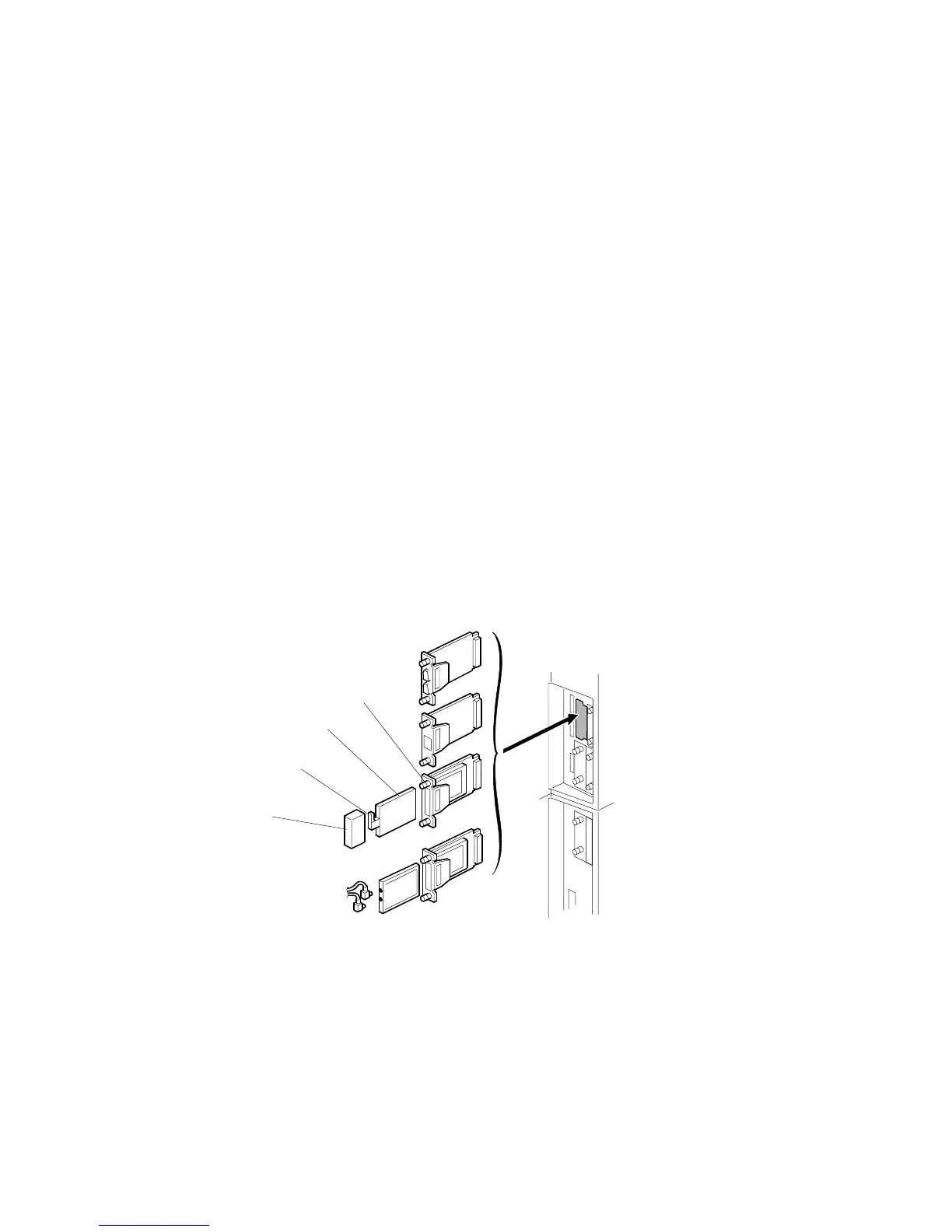

1. Remove the slot cover from Slot B1 [A] (! x 2).
2. Install the Bluetooth board [A] (Knob-screw x 2).
3. Insert the Bluetooth card [B] in the slot.
4. Push the antenna [C] to extend it.
5. Attach the antenna cap [D].
B659I108.WMF
[A]
[B]
[C]
[D]
