Ricoh MT-C1 - B064 Series; B140 Series; B246 Series

15 February 2006 FUSING UNIT
3-65
Replacement
Adjustment

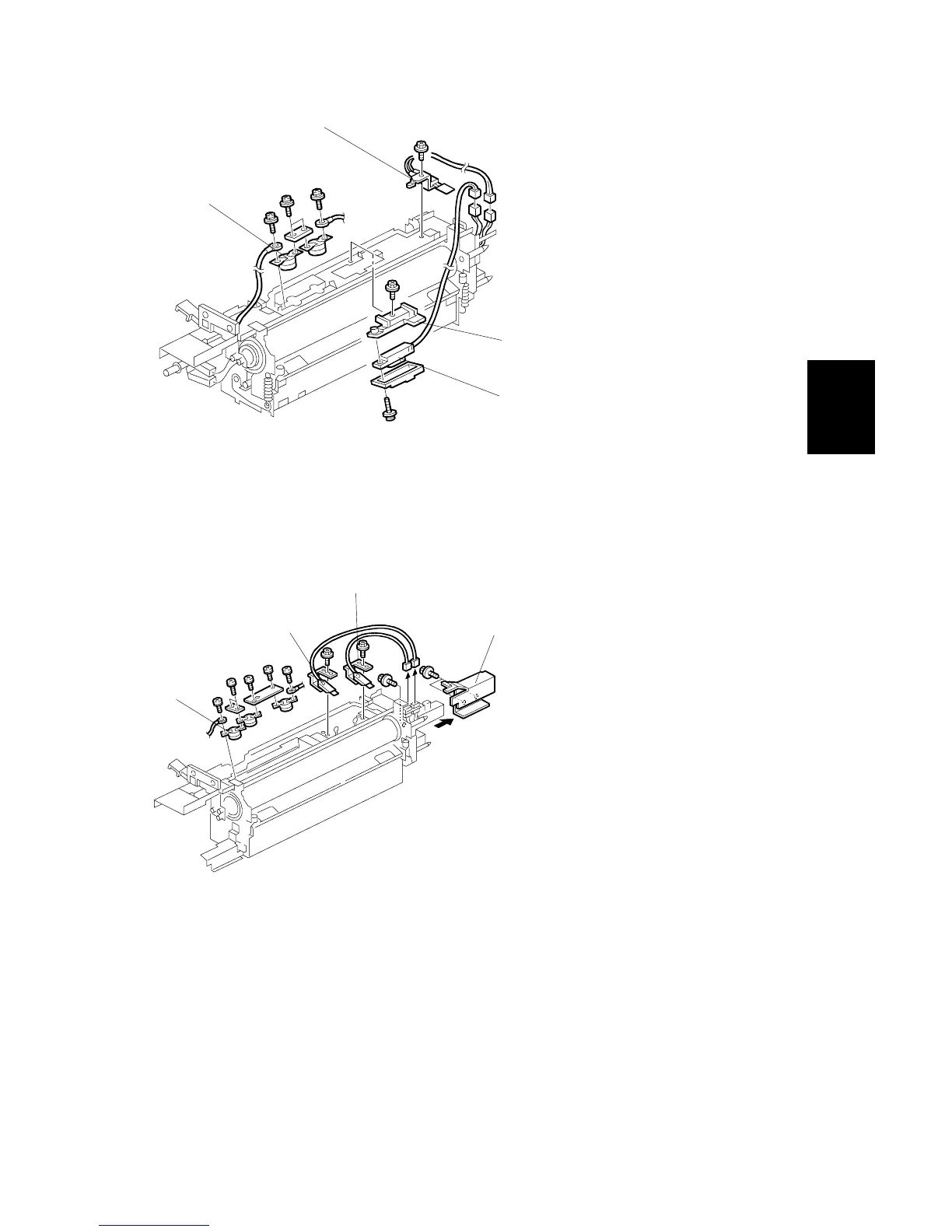

B064 Series
[A]: End thermistor ( x 1,  x 1)
[B]: Bracket ( x 2)
[C]: Center thermistor ( x 1)
[D]: Two thermostats ( x 3)
B140 Series
➀: Rear end cover ( x 2)
➁: End thermistor bracket and thermistor ( x 1,  x 1, metal clamps)
➂: Center thermistor bracket and thermistor ( x 1,  x 1, metal clamps)
➃: Three thermostats ( x 5)
B246 Series
The thermistor-thermostats are replaced as one unit. This disassembly procedure
is not required.
B246R990.WMF
B246R991.WMF
B064 Series
[A]
[B]
[C]
[D]
B140 Series
➀
➁
➂
➃
