Ricoh MT-C1 - Pick-Off Pawls; ID Sensor

15 February 2006 DRUM UNIT
3-43
Replacement
Adjustment

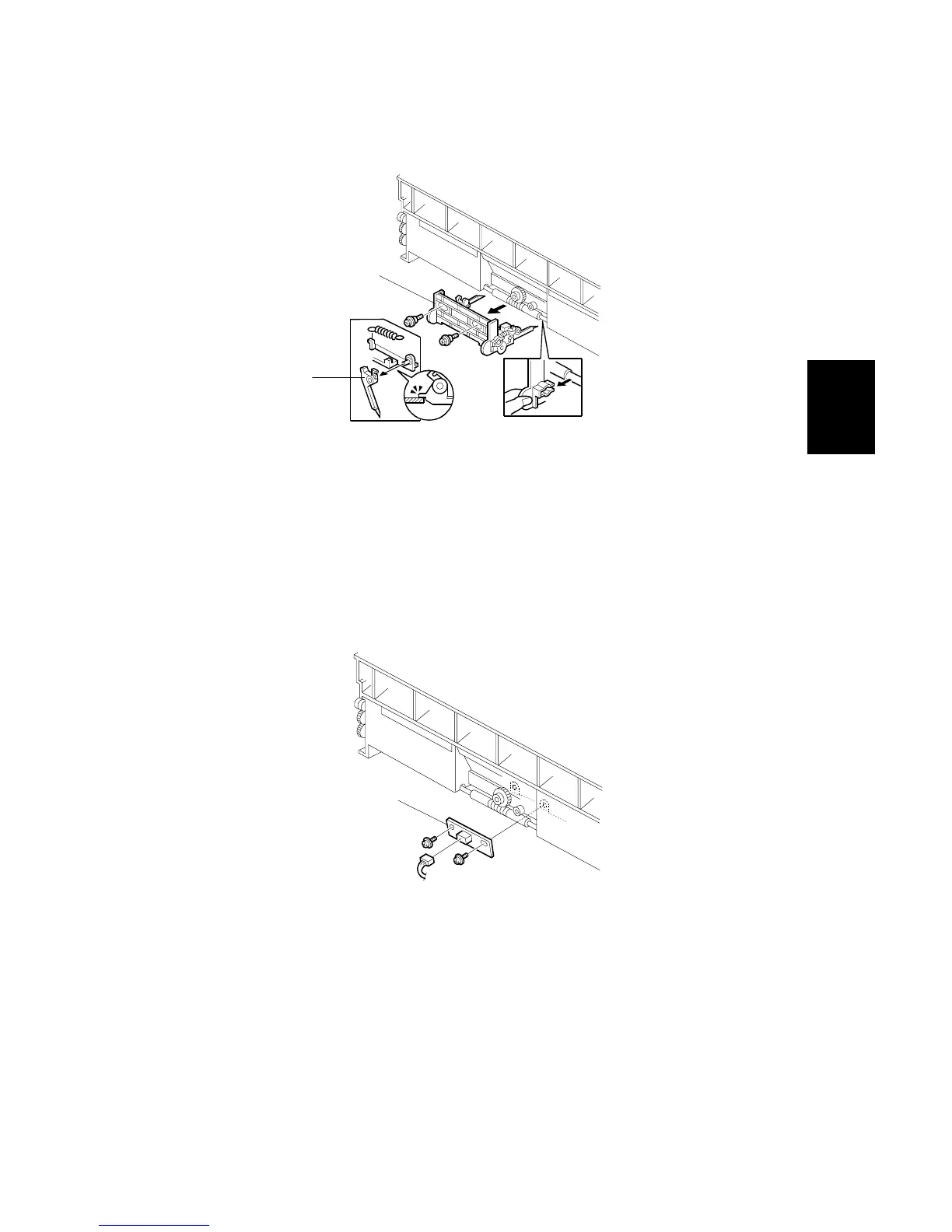

3.6.12 PICK-OFF PAWLS
OPC drum (☛ 3.6.5)
[A]: Pick-off pawl bracket ( x 2)
[B]: Pick-off pawl (spring x 1)
3.6.13 ID SENSOR
OPC drum (☛ 3.6.5)
Pick-off pawls (☛ 3.6.12)
[A]: ID sensor ( x 2,  x 1)
After replacing the sensor, do the following SPs:
• SP2962 (Adjustment of Drum Conditions), only if SP3901 (Auto Process
Control) is on).
• SP3001-002 (ID Sensor Initialization Setting).
B246R955.WMF
B246R956.WMF
[A]
[A]
[B]
