IMAGE TRANSFER AND PAPER SEPARATION 15 February 2006
6-82
6.10.3 TRANSFER BELT CHARGE
The transfer power pack [A], inside the transfer belt unit, applies the following
charges:
• Transfer Roller: Max. +7.0 kV through terminal [B] to the transfer roller [C].
• Cleaning Roller: About +1.0 kV max. through terminal [D] to the cleaning
roller [E].
Drive rollers [F, G] are grounded so that the cleaning unit can clean the belt easily.

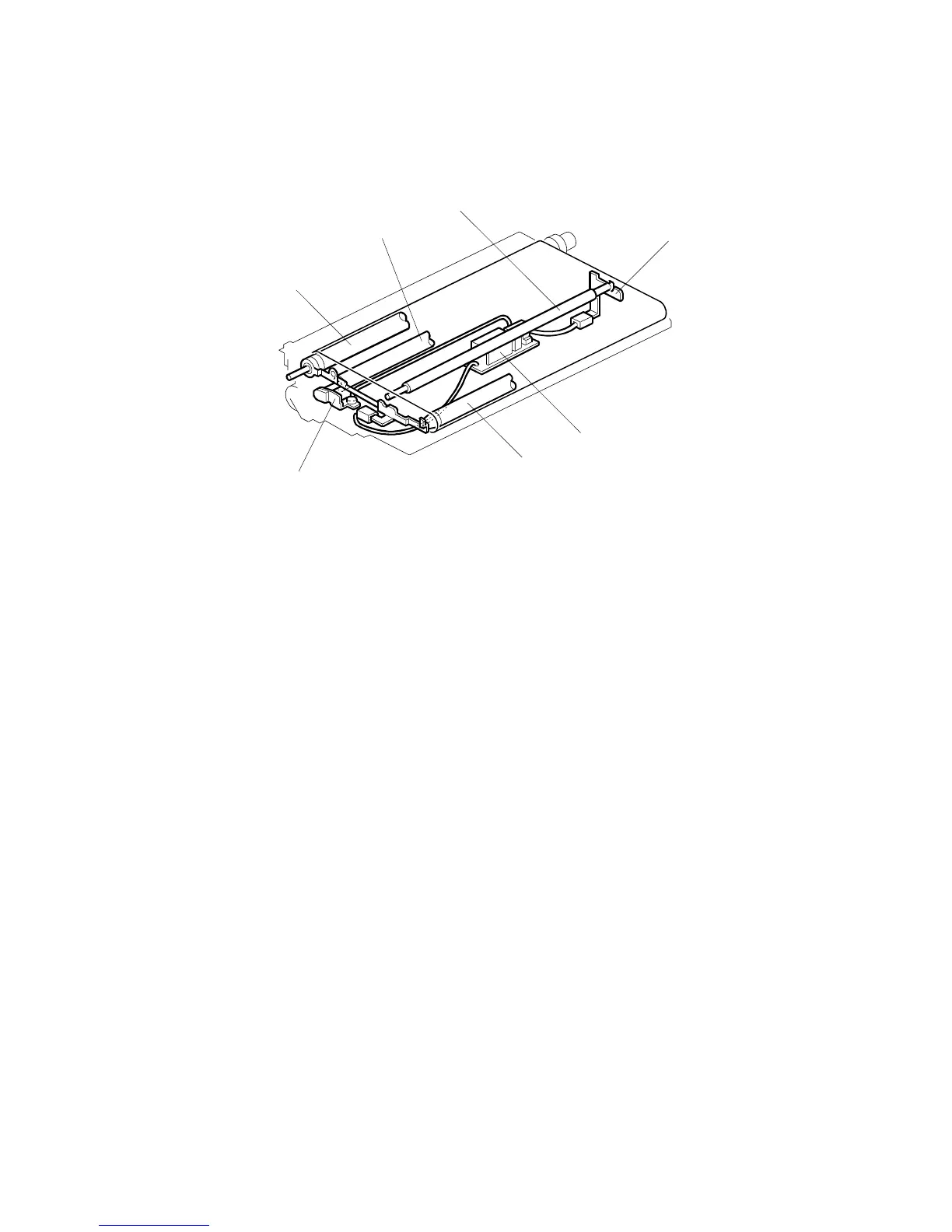

B246D940.WMF
[A]
[B]
[C]
[E]
[D]
[F]
[G]
To Next Page
