Ricoh MT-C1 - Installation; Assemble the Key Counter Bracket

15 February 2006 KEY CARD BRACKET (B498), KEY COUNTER BRACKET (B452)
1-115
Installation
1.20.3 INSTALLATION

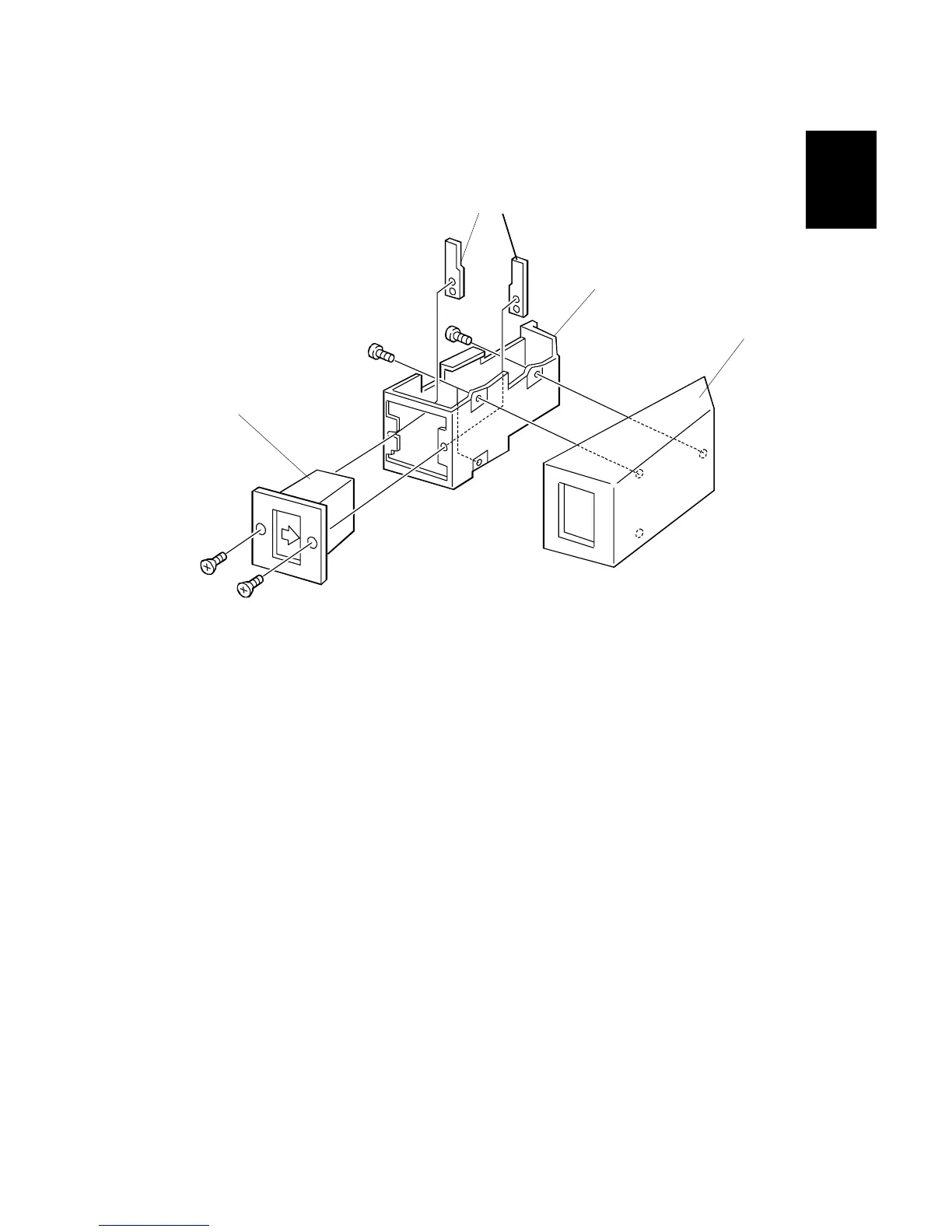

Assemble the Key Counter Bracket
1. Hold the key counter plate nuts [A] on the inner surface of the key counter
bracket [B].
2. Attach the key counter holder [C] to the key counter bracket (" x2).
3. Attach the key counter bracket cover [D] (" x2).
B452I002.WMF
[A]
[B]
[C]
[D]
