Ricoh MT-C1 - Duplex Unit; Duplex Unit Removal

DUPLEX UNIT 15 February 2006
3-86
3.10 DUPLEX UNIT
3.10.1 DUPLEX UNIT REMOVAL

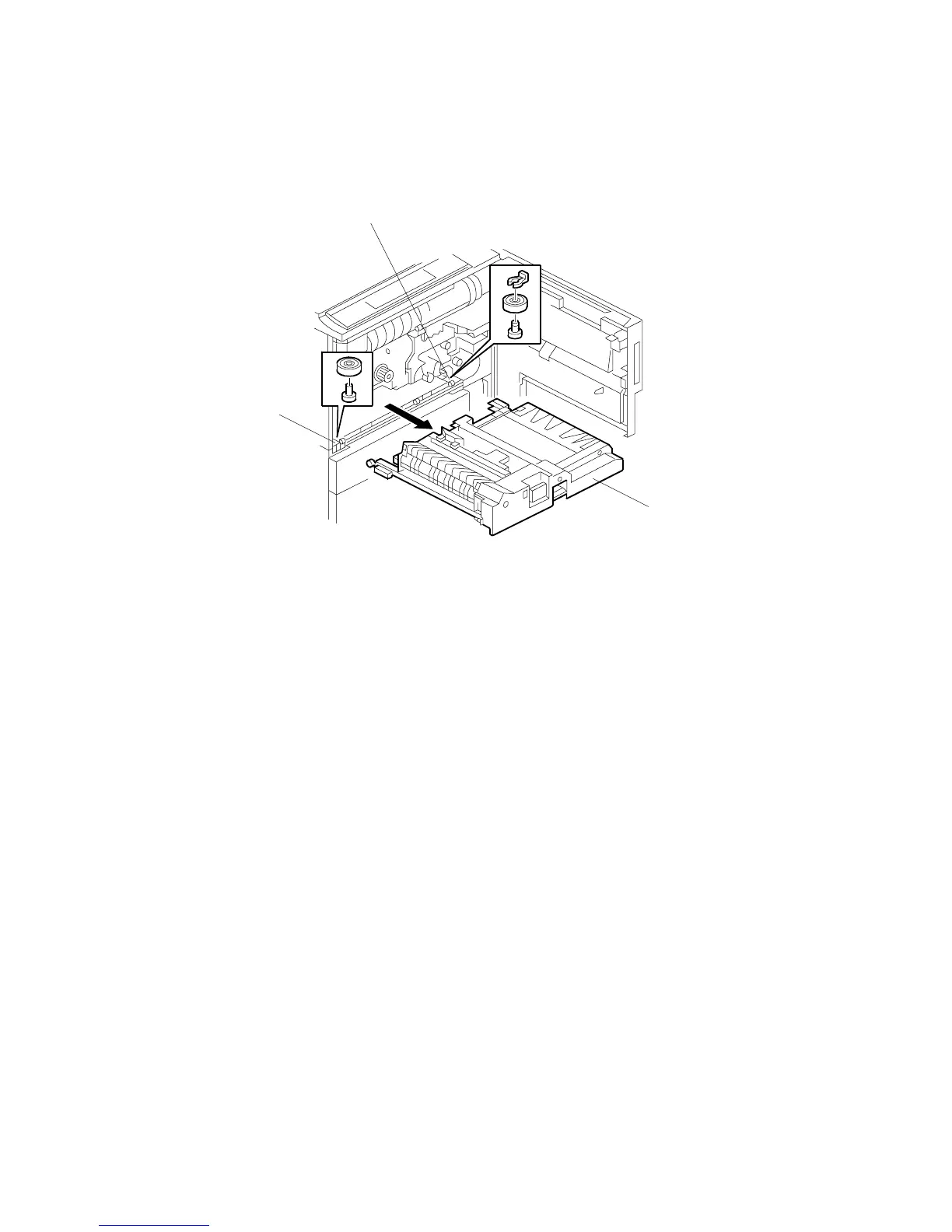

1. Open the front door and pull out the duplex unit.
2. Remove the slide rail roller on the left [A] and on the right [B] ( x 1).
3. Lift out the duplex unit [C].
NOTE: To re-install the duplex unit, insert the duplex unit partially, only until it
enters the black guide rail, then re-attach each slide rail roller. After that,
push the duplex unit into the machine completely. This method prevents
interference from the guide plate during installation.
B246R1036.WMF
[A]
[B]
[C]
