Ricoh MT-C1 - Installation

15 February 2006 COPY CONNECTOR KITS
1-127
Installation
Installation

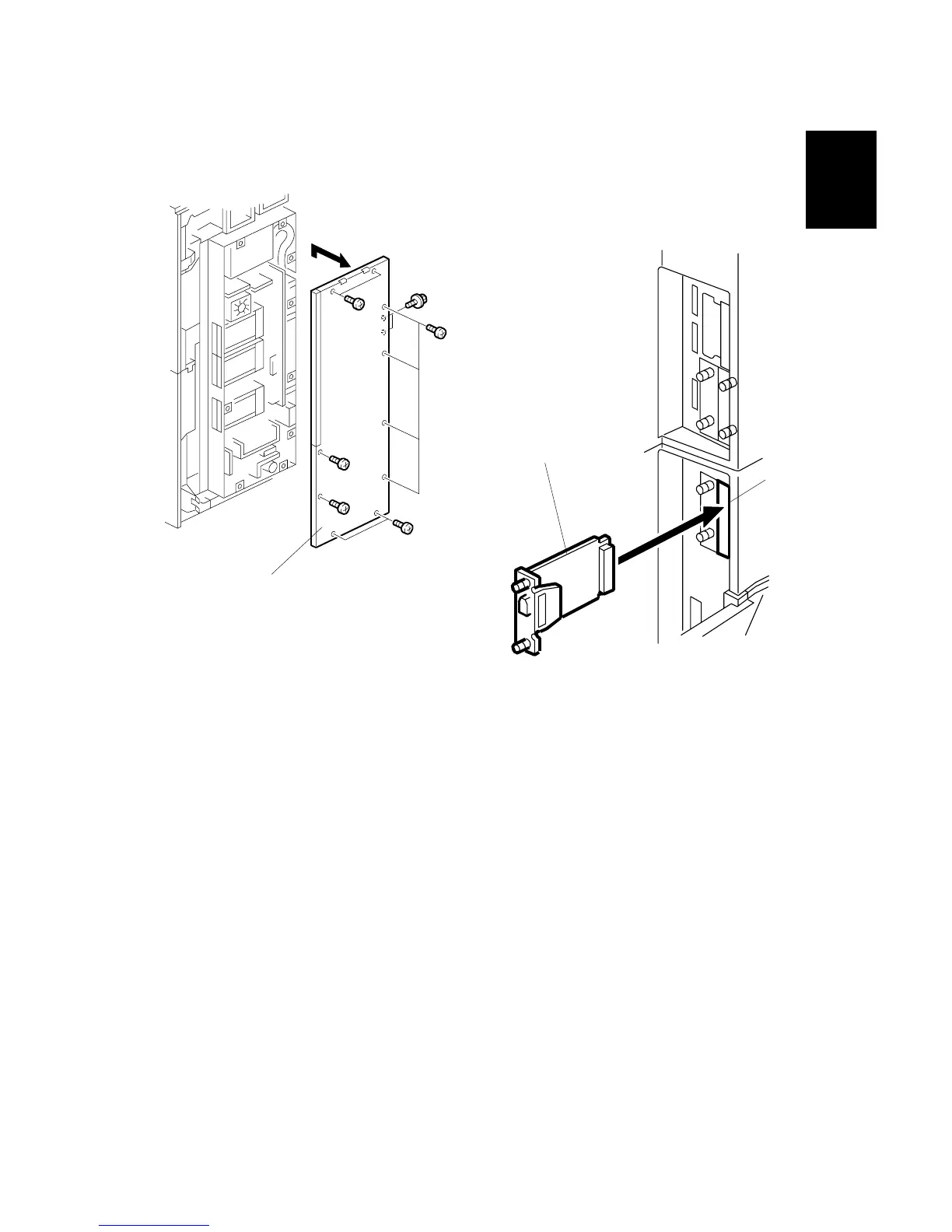

1. Remove the rear cover.
2. Remove the controller box cover [A] (" x 12).
3. Remove the cover from Slot A2 [B] (" x 2).
4. Put the Copy Connector Kit board [C] in Slot A2 and tighten the knob screws (x
2).
B659I103.WMF
B661I110.WMF
[B]
[C]
[A]
