15 February 2006 OPERATION PANEL AND EXTERNAL COVERS
3-9
Replacement
Adjustment
3.3.5 REAR COVERS
[A]: Disconnect the ADF plug.
[B]: Rear upper cover ( x 2)
Slide down to remove.
When re-attaching, before tightening the screws make sure that the tabs on
the cover are engaged with the shoulder screws.
[C]: Rear lower cover ( x 2)
When re-attaching, before tightening the screws make sure that the tabs on
the cover are engaged with the shoulder screws.

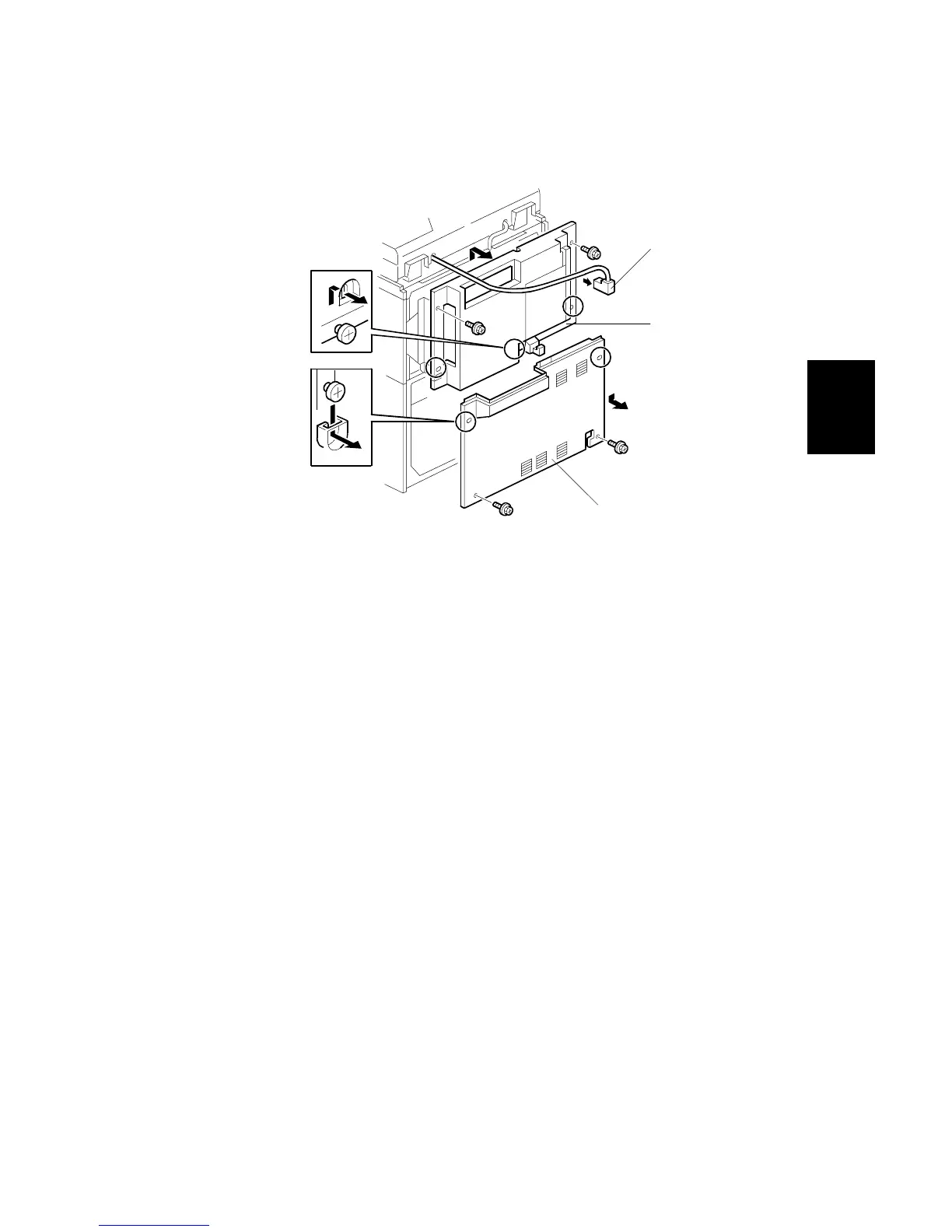

B246R905.WMF
[A]
[B]
[C]
