MFP OPTIONS: B140/B246 SERIES 15 February 2006
1-158
1.23.2 OVERVIEW

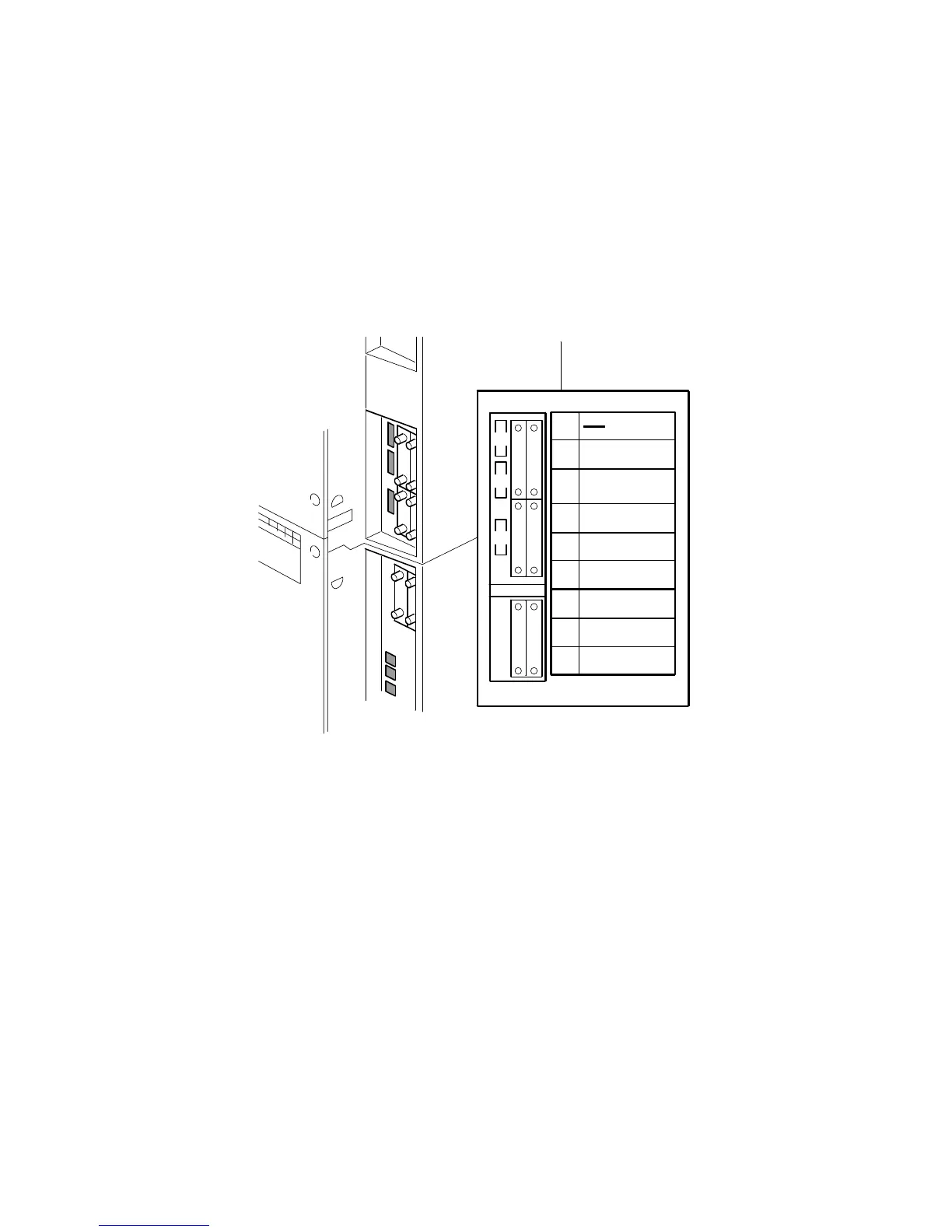

To make it easy to install MFP options, there are 6 slots (A1, A2, B1 to B4) for
boards and 3 slots (C1 to C3) for SD cards on the controller box. Each board or SD
card must be put in its assigned slot. The correct slots for each option are shown
on the decal attached to the controller box cover (shown in the diagram).
MFP Option Slot Assignment
A1
A2
B1
B2
B3
B4
C1
C2
C3
1394/802.11b/
USB2.0/Bluetooth
Tandem
File Format Converter
Paralle(1284)
Ethernet
Printer/Scanner
Option PDL
Service
C1
C2
C3
B1 B2
B3 B4
A1 A2
B659I101.WMF
