Ricoh MT-C1 - Installation Procedure

A3/DLT FEEDER KIT (B475) 15 February 2006
1-24
INSTALLATION PROCEDURE
!CAUTION
Switch the machine off and unplug the machine before starting the
following procedure.

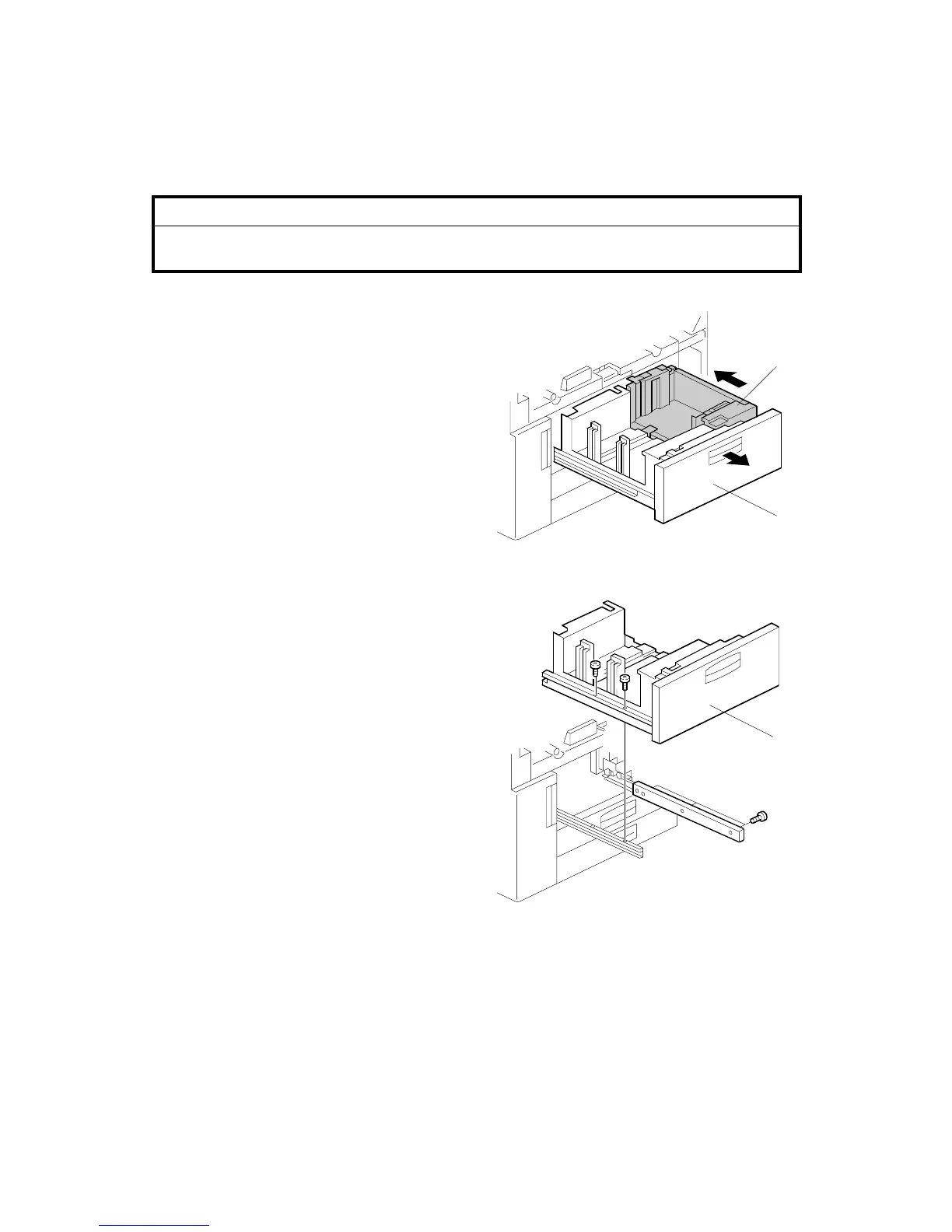

1. Draw out the tandem tray completely
to separate the left and right sides of
the tray, then remove the front cover
[A] (" x 2).
2. Push in the right tandem tray [B].
3. Remove the left tandem tray [C]
(" x 5). Save these screws.
B475I707.WMF
B475I708.WMF
[B]
[A]
[C]
