15 February 2006 SCANNER
3-17
Replacement
Adjustment
3.4.7 SCANNER MOTOR DRIVE BOARD (SDRB)
Rear upper cover (☛ 3.3.5)

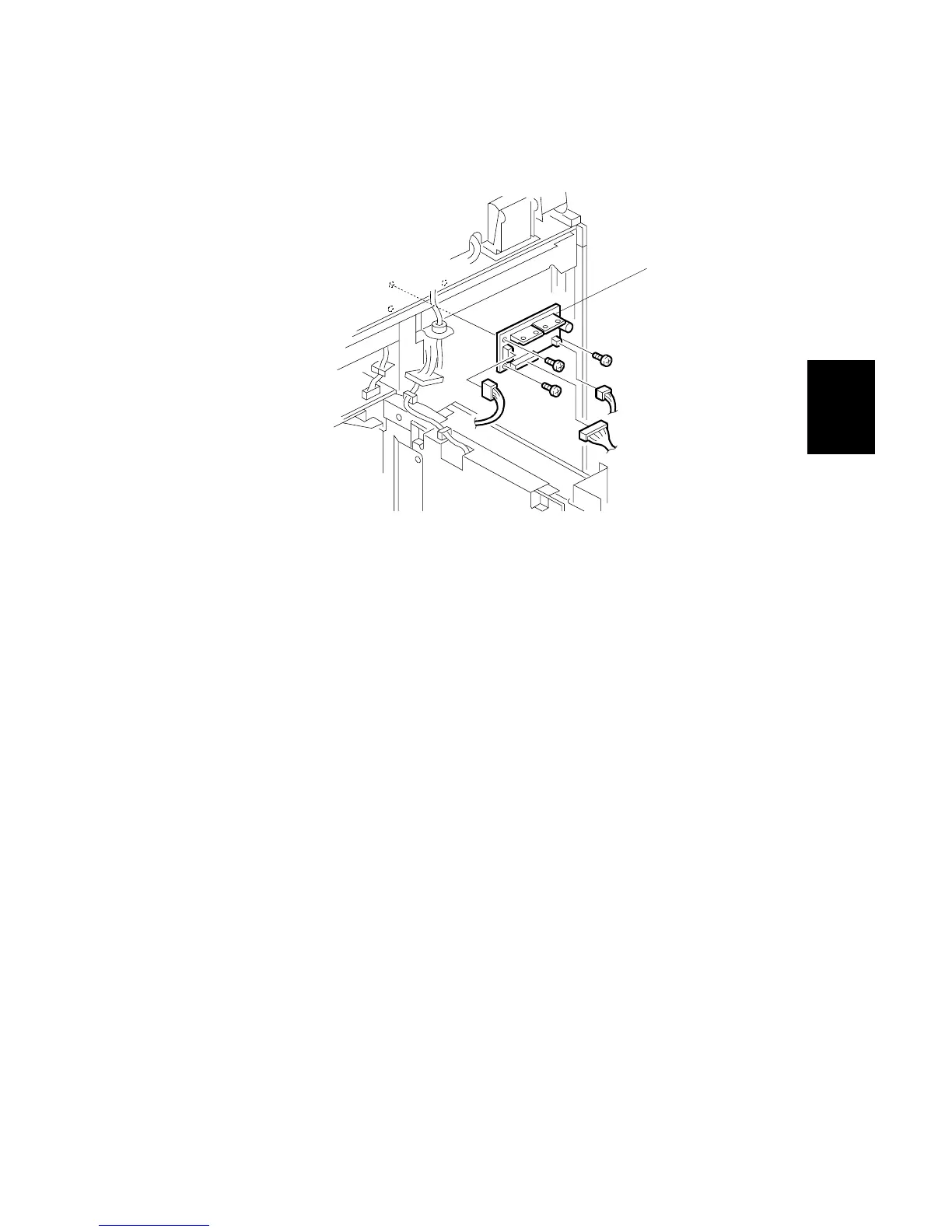

[A]: Scanner motor drive board ( x 3, x 3)
B246R915.WMF
[A]
